Aerpro AKTO9 9" Install Kit Suit Toyota Hilux Pre 2011 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Aerpro AKTO9 9" Installation Kit to Suit Toyota Hilux Pre-2011

The Aerpro AKTO9 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Toyota Hilux (Pre 2011) vehicle with steering wheel controls.

Product overview

To suit Toyota Hilux (Pre 2011) vehicles with steering wheel controls. Compatible with Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units. Includes all the parts required to complete the installation and to retain important vehicle features. Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped). To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios. This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter, instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'. Feature retention will be radio dependent.

Features and benefits

Suits Toyota Hilux (Pre 2011) with steering wheel controls: Purpose built for this vehicle and control configuration.

Compatible with major 9" trapezoid head units: Works with the Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units.

Complete installation kit: Includes all the parts required to complete the installation and retain important vehicle features.

Steering wheel control and reverse camera retention: Retains steering wheel controls (including phone button) and factory reverse camera (if equipped).

Compatible with Aerpro APP8 harness adapters: Simplifies installation alongside Aerpro APP8 aftermarket headunit harness adapters.

Technical specs

What's in the box

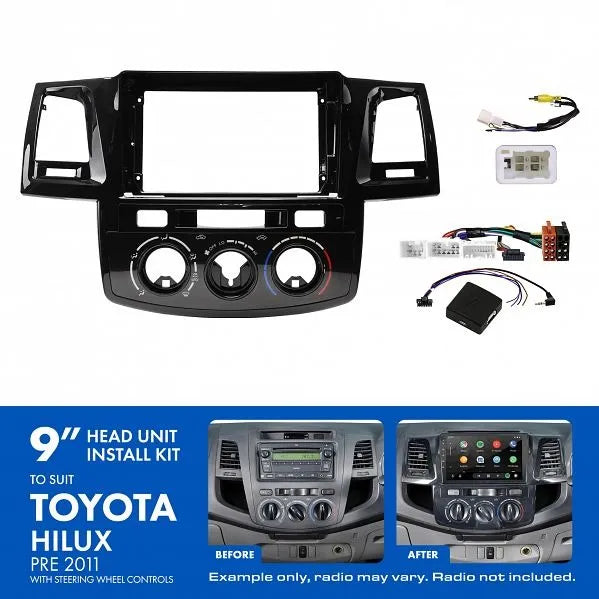

Gloss black facia kit, steering wheel control interface harness, SWC patch lead, camera retention adaptor.

Compatible with

The AKTO9 suits the Toyota Hilux Pre 2011 (2005 to 2011) with steering wheel controls, and is compatible with 9" trapezoid shaped head units including the Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units. Not compatible with standard DIN or double DIN sized radios. Head unit ISO harness sold separately (recommended: Aerpro APP8).

FAQ

What is the Aerpro AKTO9?

The Aerpro AKTO9 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Toyota Hilux (Pre 2011) vehicle with steering wheel controls.

What vehicle does the AKTO9 suit?

The AKTO9 suits Toyota Hilux (Pre 2011, 2005 to 2011) vehicles with steering wheel controls.

Which head units is the AKTO9 compatible with?

The AKTO9 is compatible with 9" trapezoid shaped head units including the Alpine INE-AW409S, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units. It will not suit standard DIN or double DIN sized radios.

Does the AKTO9 include the head unit ISO harness?

No. The head unit ISO harness is not included and is recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness, sold separately.

Does the AKTO9 retain the factory reverse camera?

Yes, if the vehicle is equipped with a factory reverse camera, the AKTO9 retains this feature.

Does the AKTO9 support Pioneer CAN Bus features?

No. The kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
