Aerpro AKTO38 9/10" Install Kit Suit Toyota Kluger 2014 - 2019 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Upgrade Your Toyota Kluger (2014–2019) With Factory 360 Camera to A 9/10" Head Unit!

9/10" Headunit Installation Kit
The Aerpro AKTO38 9/10" Installation Kit includes everything required to install a 9/10" trapezoid-shaped radio into your Toyota Kluger (2014–2019) with factory 360 camera, while retaining essential vehicle features including steering wheel control functionality.

Note: Head unit ISO harness is not included in the kit. It is recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

• Designed for universal trapezoid-shaped head units such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X & AM10X, and various Android head units. Not compatible with standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but includes a steering wheel control adapter. On boot-up, go to Menu → Steering Wheel Control → With Adapter.
• The facia kit is designed for left-hand drive (LHD) vehicles. It fits without modification, but it is recommended to remove the lower clip behind the factory silver trim to avoid panel bowing.
• Feature retention may vary depending on the radio model used.

Vehicle Compatibility:

• Toyota Kluger 2014–2019 (with factory 360 camera)

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes
• AUX Input: Yes
• USB Input: Yes
• Parking Tones: N/A
• Factory Amplifier: Yes
• Vehicle Menu: No

Features:

• To suit Toyota Kluger (2014–2019) vehicles with factory 360 camera
• Includes all components needed for installation and factory feature retention
• Retains factory reverse camera and steering wheel controls (including phone button)
• Compatible with Aerpro APP8 aftermarket head unit harness adapters for simplified installation

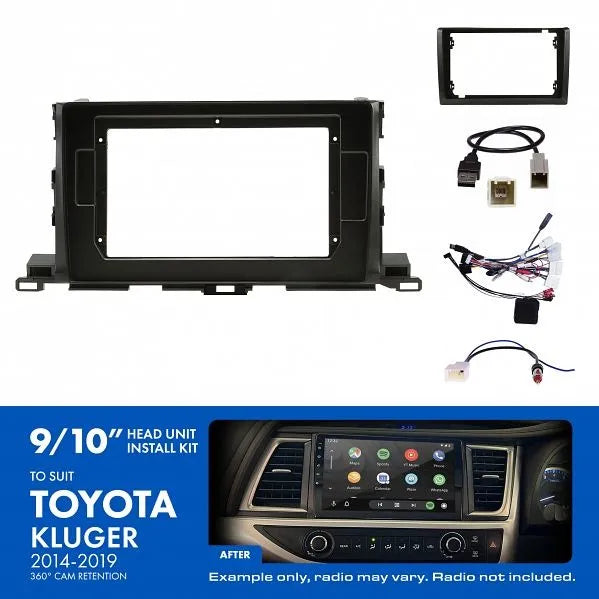

Kit Inclusions:

• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Adaptor for 9" and 10" radios
• Antenna Adaptor
• Camera Retention Adaptor
• Factory USB Retention Harness
