Aerpro AKTGM5 9" Install Kit Holden Barina TM 2011-2016

SKU: AKTGM5
Price
$399.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

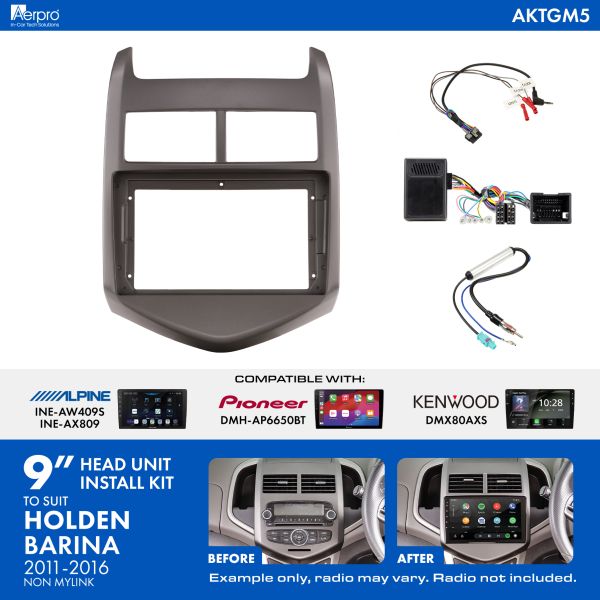

Aerpro AKTGM5 9" Head Unit Installation Kit for Holden Barina TM 2011-2016

A 9" trapezoid head unit installation kit from Aerpro for Holden Barina TM (2011-2016) vehicles without factory MyLink, the AKTGM5 includes a silver fascia kit, SWC interface harness, SWC patch lead, and antenna adaptor, retaining steering wheel controls including phone button and parking tones. Compatible with Alpine INE-AW409S, INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android 9" trapezoid head units. Head unit not included.

Product Overview

The Aerpro AKTGM5 is a vehicle-specific 9" head unit installation kit for Holden Barina TM (2011-2016), providing all the hardware required to install a 9" trapezoid shaped head unit into the Barina TM without the factory MyLink system. The kit suits universal trapezoid shaped head units only and will not suit standard DIN or double DIN sized radios. The head unit is sold separately.

The silver fascia kit is purpose-designed for the Holden Barina TM dashboard. The SWC interface harness and included SWC patch lead retain factory steering wheel controls including the phone button and parking tones. The antenna adaptor connects the factory Holden Barina TM antenna to the aftermarket head unit. An Aerpro APP8 Secondary ISO Harness is recommended separately to simplify installation; the head unit ISO harness is not included in this kit.

Note: this kit does not support Pioneer CAN Bus features. When installing with a Pioneer head unit, select Menu then Steering Wheel Control then With Adapter at boot-up rather than CAN Bus Adapter. Feature retention is radio dependent and may vary between compatible head units.

Features & Benefits

Compatible with Multiple 9" Trapezoid Head Unit Brands: The AKTGM5 is compatible with Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android 9" trapezoid head units, providing installation flexibility across multiple head unit choices.

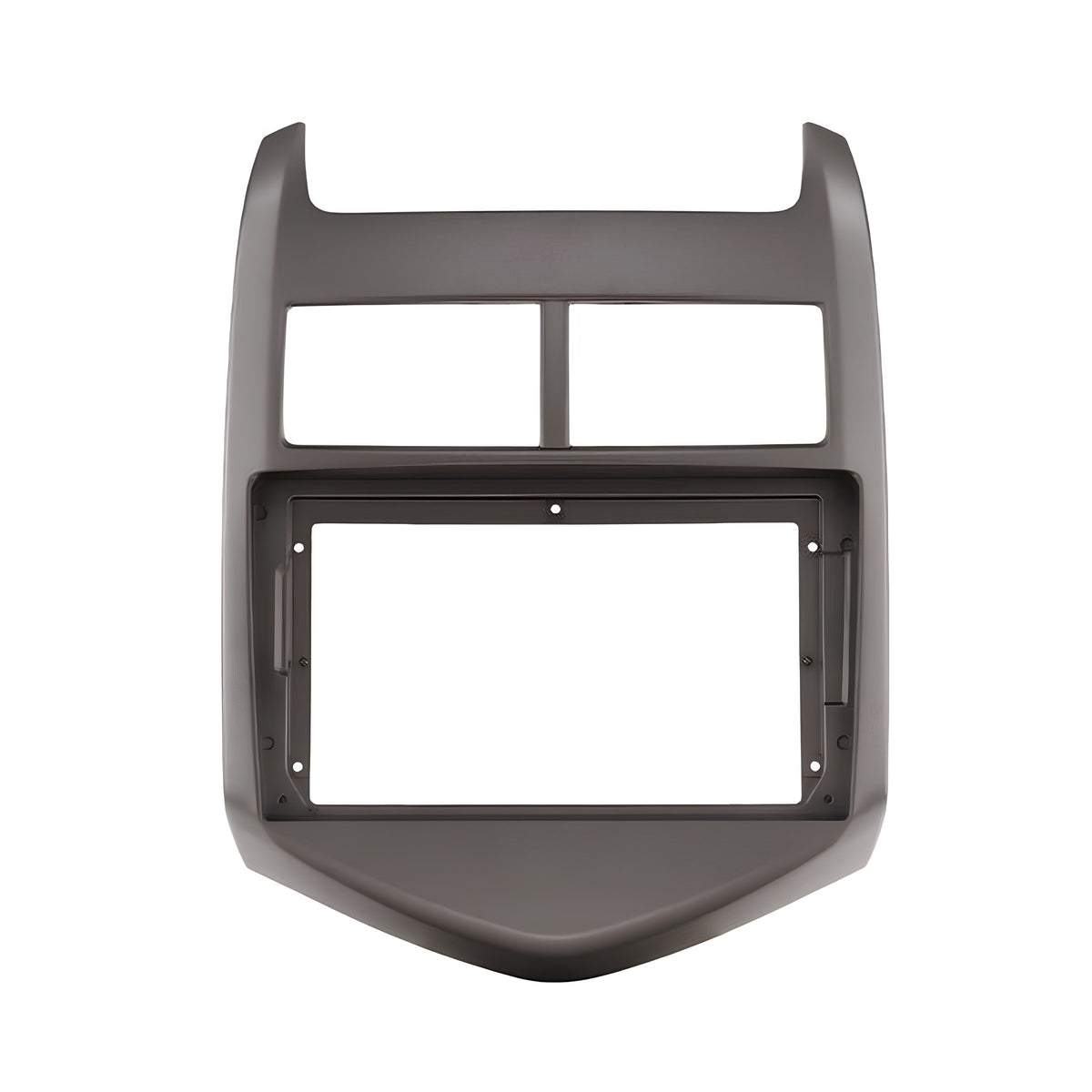

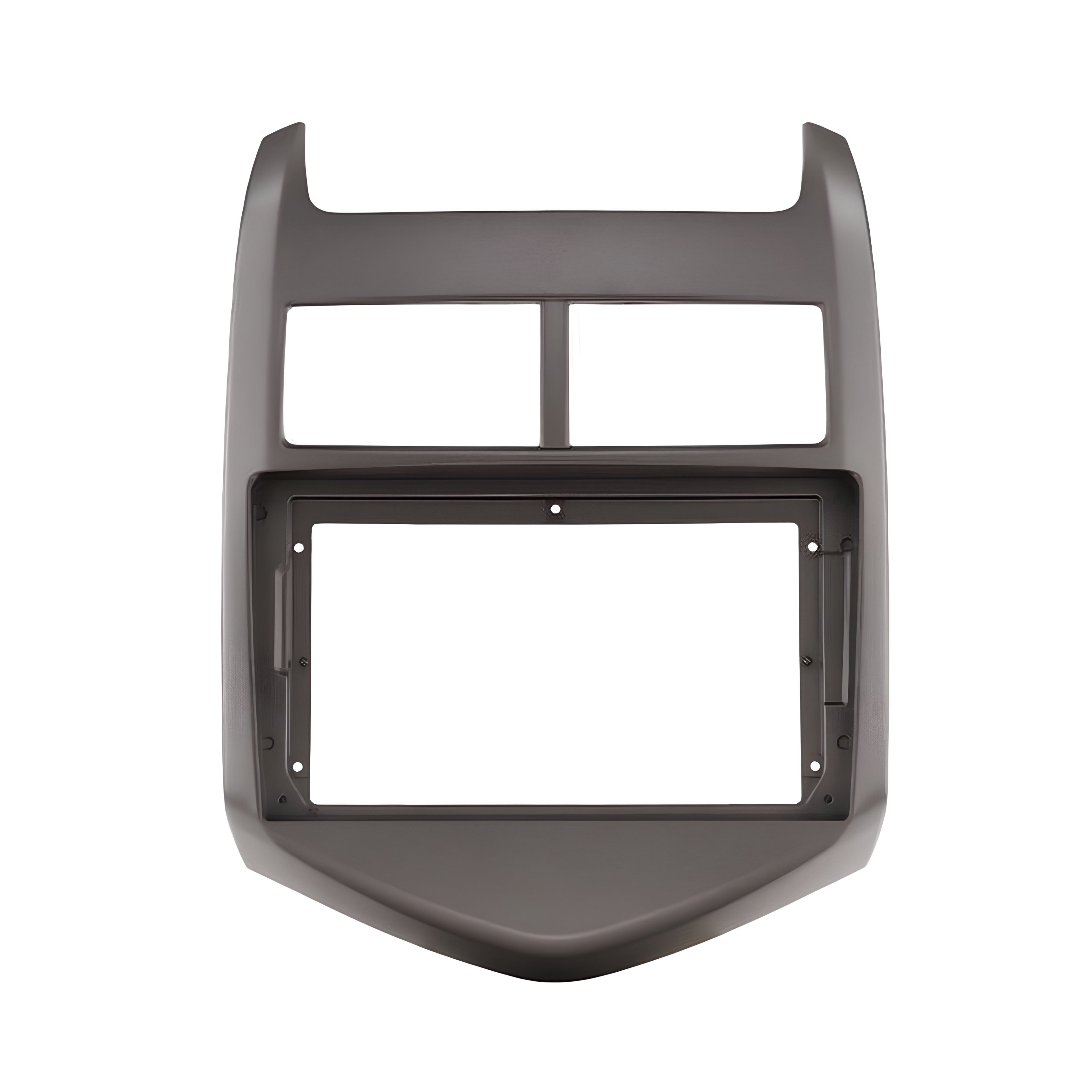

Silver Fascia Kit for Holden Barina TM: The silver fascia kit is purpose-designed for the Holden Barina TM (2011-2016) dashboard for a clean, integrated finish around the new 9" head unit.

SWC Harness and Patch Lead - Steering Wheel Control Retention Including Phone Button: The SWC interface harness and patch lead retain factory steering wheel controls including the phone button in the Holden Barina TM.

Parking Tones Retention: Factory parking tones are retained where equipped.

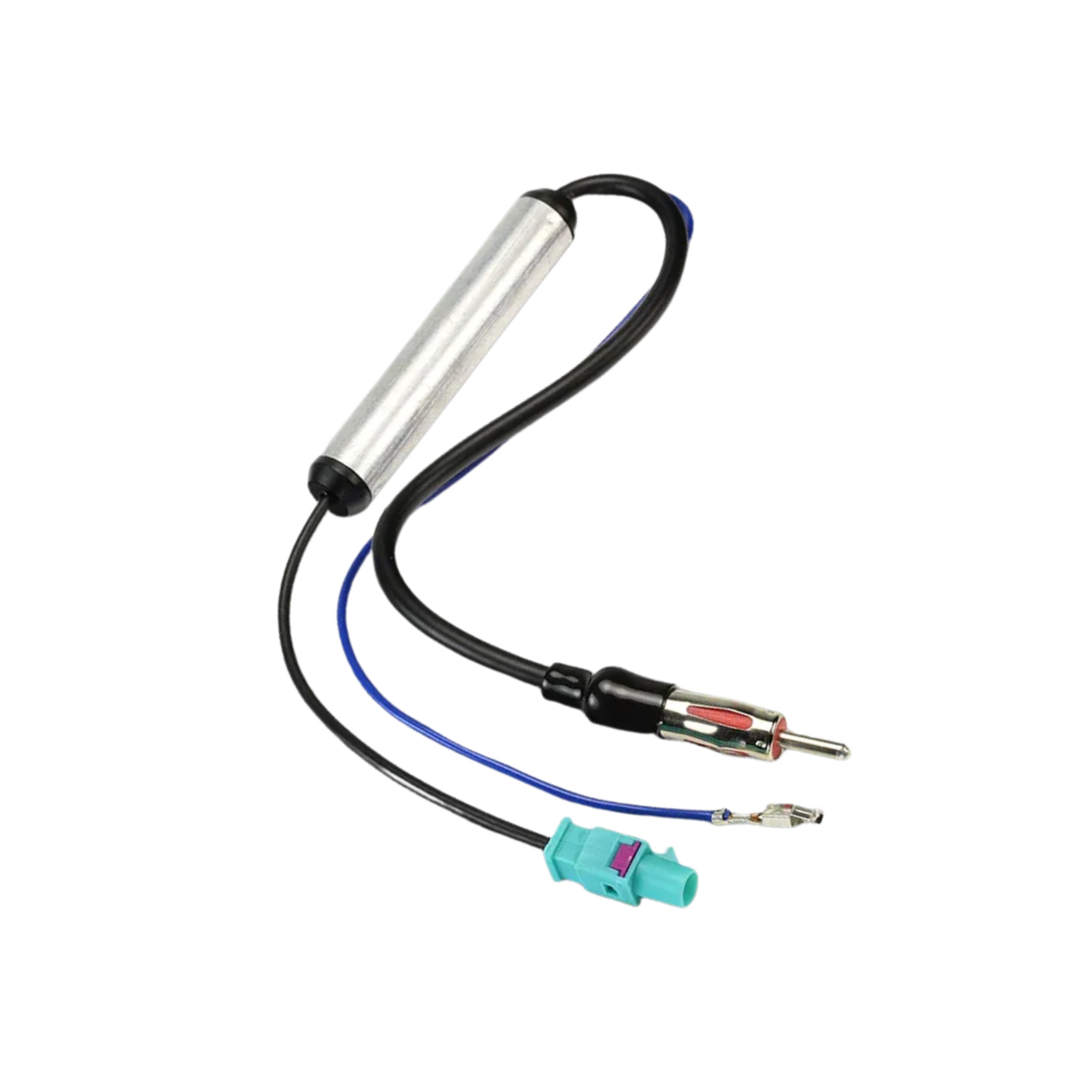

Antenna Adaptor Included: Connects the factory Holden Barina TM antenna to the aftermarket head unit without additional hardware.

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Secondary ISO Harness (sold separately), which connects between the aftermarket head unit and the SWC harness.

Suits 9" Trapezoid Shaped Head Units Only: This kit is developed for universal trapezoid shaped 9" radios. It will not suit standard DIN or double DIN sized radios.

What's in the Box

  • Silver Fascia Kit

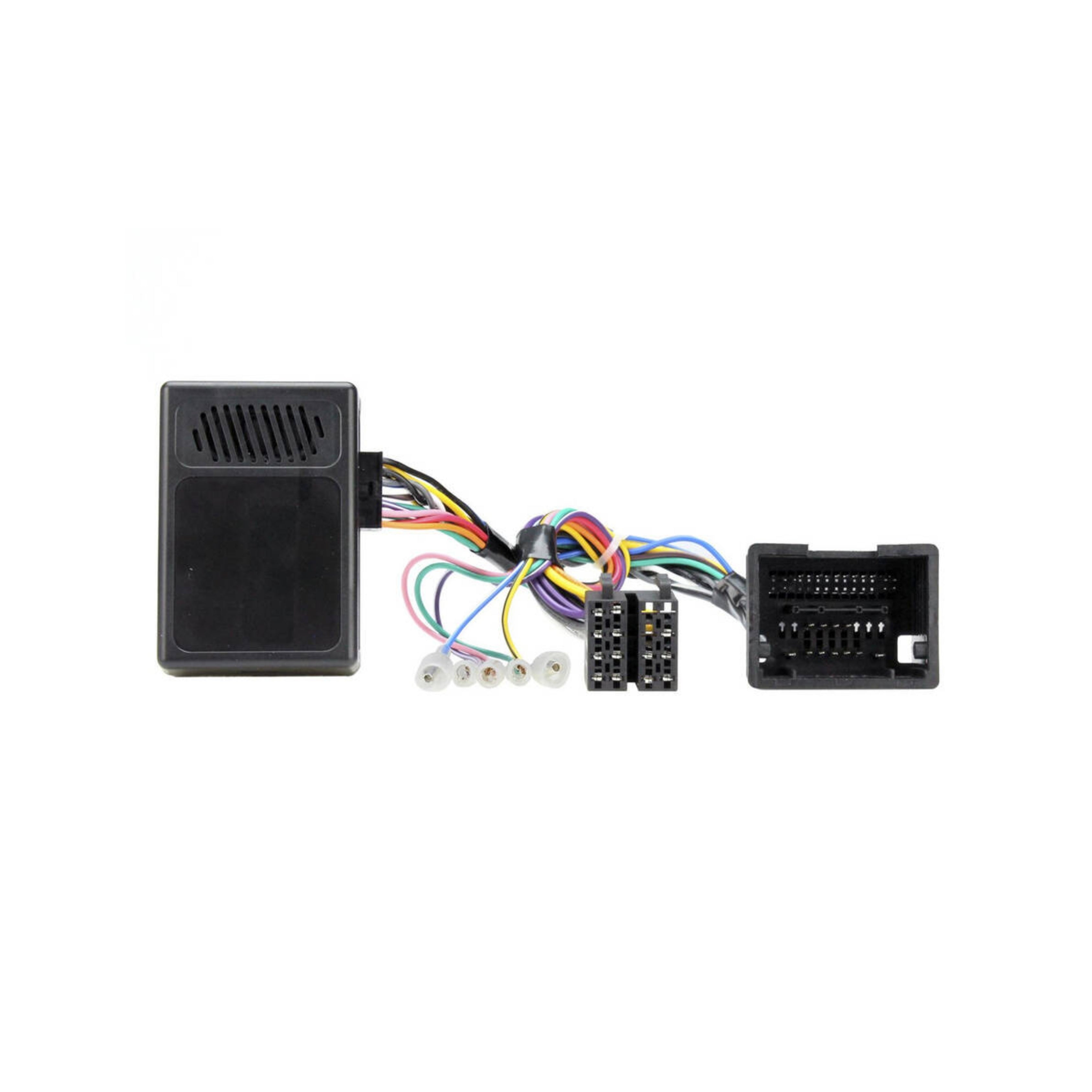

  • Steering Wheel Control Interface Harness

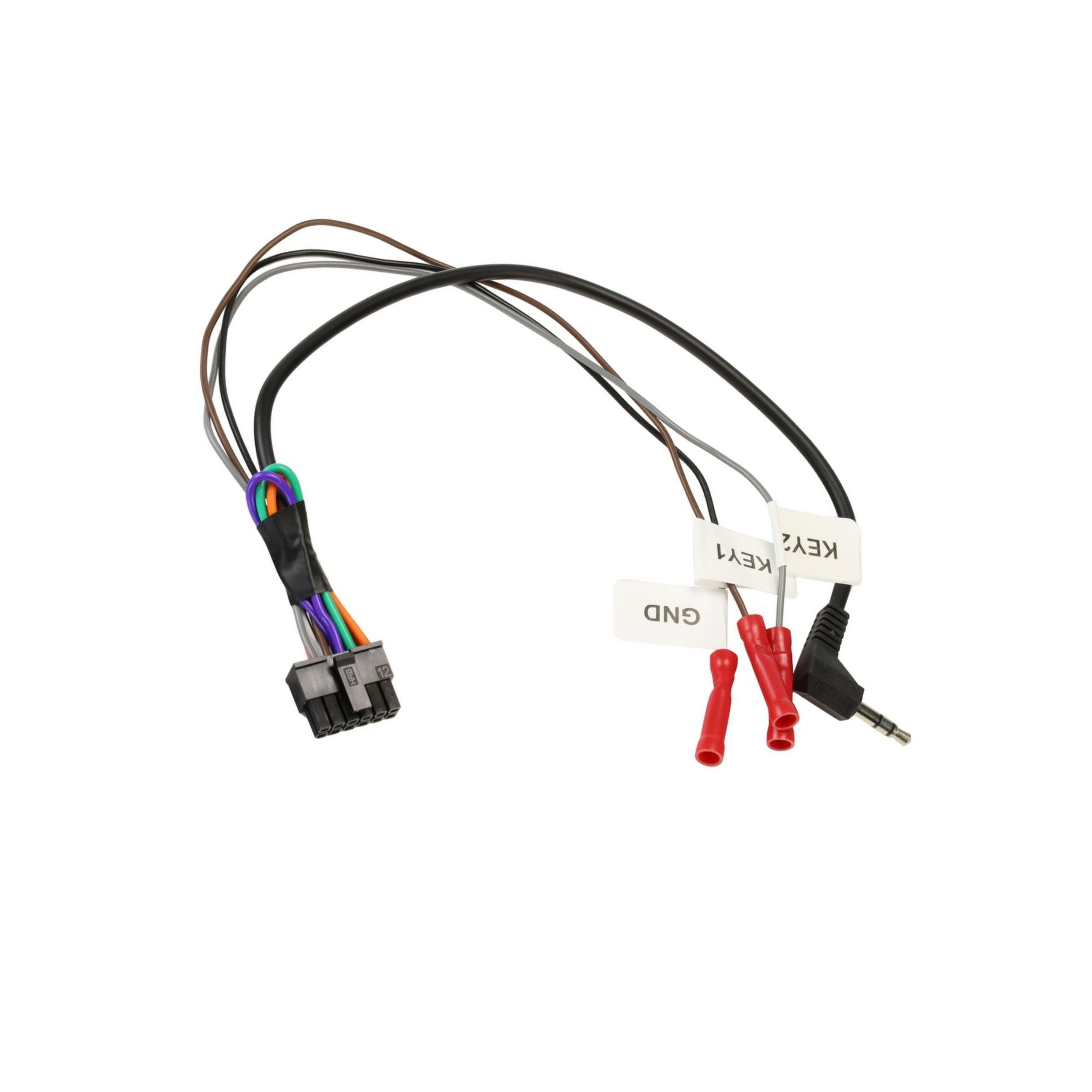

  • SWC Patch Lead
  • Antenna Adaptor

Note: Head unit not included. Head unit ISO harness not included. Aerpro APP8 Secondary ISO Harness recommended separately.

Technical Specs

Specification Detail
SKU AKTGM5
Brand Aerpro
Compatible Vehicle Holden Barina TM (2011-2016) - Non-MyLink Models
Compatible Head Unit Size 9" Trapezoid Only
SWC Retention Yes (Including Phone Button)
Parking Tones Retention Yes
Reverse Camera Retention No
USB Input Retention No
AUX Input Retention No
Factory Amplifier Retention No
Vehicle Menu No
Head Unit ISO Harness Not Included (APP8 Recommended Separately)
Barcode 9317114953094

Compatible Head Units

Brand Model
Alpine INE-AW409S
Alpine INE-AX809
Kenwood DMX80AXS
Pioneer DMH-AP6650BT
Aerpro AM9X
Various Android 9" Trapezoid Head Units

Note: Pioneer CAN Bus features are not supported. When installing with a Pioneer head unit, at boot-up navigate to Menu, then Steering Wheel Control, then With Adapter rather than selecting CAN Bus Adapter.

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls (Including Phone Button) Yes
Parking Tones Yes
Factory Reverse Camera No
USB Input No
AUX Input No
Factory Amplifier No
Vehicle Menu No

Compatible With

Make Model Variant Years
Holden Barina TM (Non-MyLink) 2011-2016

Note: This kit suits 9" trapezoid shaped head units only and will not suit standard DIN or double DIN radios. Feature retention is radio dependent and may vary between compatible head units. The head unit ISO harness is not included; the Aerpro APP8 Secondary ISO Harness is recommended separately. Confirm suitability using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Does the AKTGM5 include a head unit?

No. The AKTGM5 is an installation kit only and does not include a head unit. Compatible 9" trapezoid head units including the Aerpro AM9X, Alpine INE-AW409S, Alpine INE-AX809, Kenwood DMX80AXS, and Pioneer DMH-AP6650BT are sold separately.

Does the AKTGM5 include the ISO wiring harness?

No. The head unit ISO harness is not included. The Aerpro APP8 Secondary ISO Harness is recommended separately to simplify installation and is sold separately.

Does the AKTGM5 work with Pioneer head units?

Yes, but Pioneer CAN Bus features are not supported. When installing with a Pioneer head unit, navigate to Menu then Steering Wheel Control then With Adapter at boot-up rather than selecting CAN Bus Adapter.

Does the AKTGM5 suit factory MyLink Barina TM models?

No. The AKTGM5 suits Holden Barina TM (2011-2016) vehicles without the factory MyLink system.

Will the AKTGM5 suit a standard double DIN head unit?

No. This kit is developed for 9" trapezoid shaped head units only and will not suit standard DIN or double DIN sized radios.
