Aerpro AKNI4 Nissan Qashqai X-Trail 2015 to 2019 9/10 Inch Head Unit Installation Kit

Quick answer

The Aerpro AKNI4 installs a 9 or 10 inch trapezoid head unit in a Nissan Qashqai or X Trail from 2015 to 2019 without factory navigation.

It keeps steering wheel controls, the 360 camera, factory USB and the vehicle clock menu.

Problems it solves

• A big screen that will not fill the Nissan dash. The gloss black fascia frames 9 or 10 inch units.
• Losing the 360 camera with a new radio. A retention adaptor keeps it.
• A dead phone button on the wheel. The SWC interface retains it.

Specifications

• Vehicles: Nissan Qashqai and X Trail 2015 to 2019 without factory nav
• Head units: 9 or 10 inch trapezoid only
• Listed units: Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X, AM10X; various Android units
• Retains: SWC with phone button, camera, USB, clock
• Not retained: AUX, factory amplifier
• ISO harness: not included; APP8 recommended

Fitment and compatibility

For the Qashqai and X Trail from 2015 to 2019 without factory nav, with a 9 or 10 inch trapezoid radio. It will not take a DIN or double DIN unit.

What is in the box

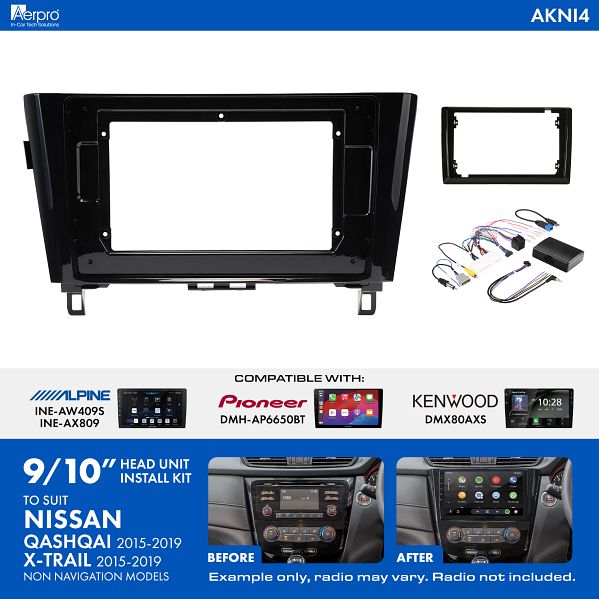

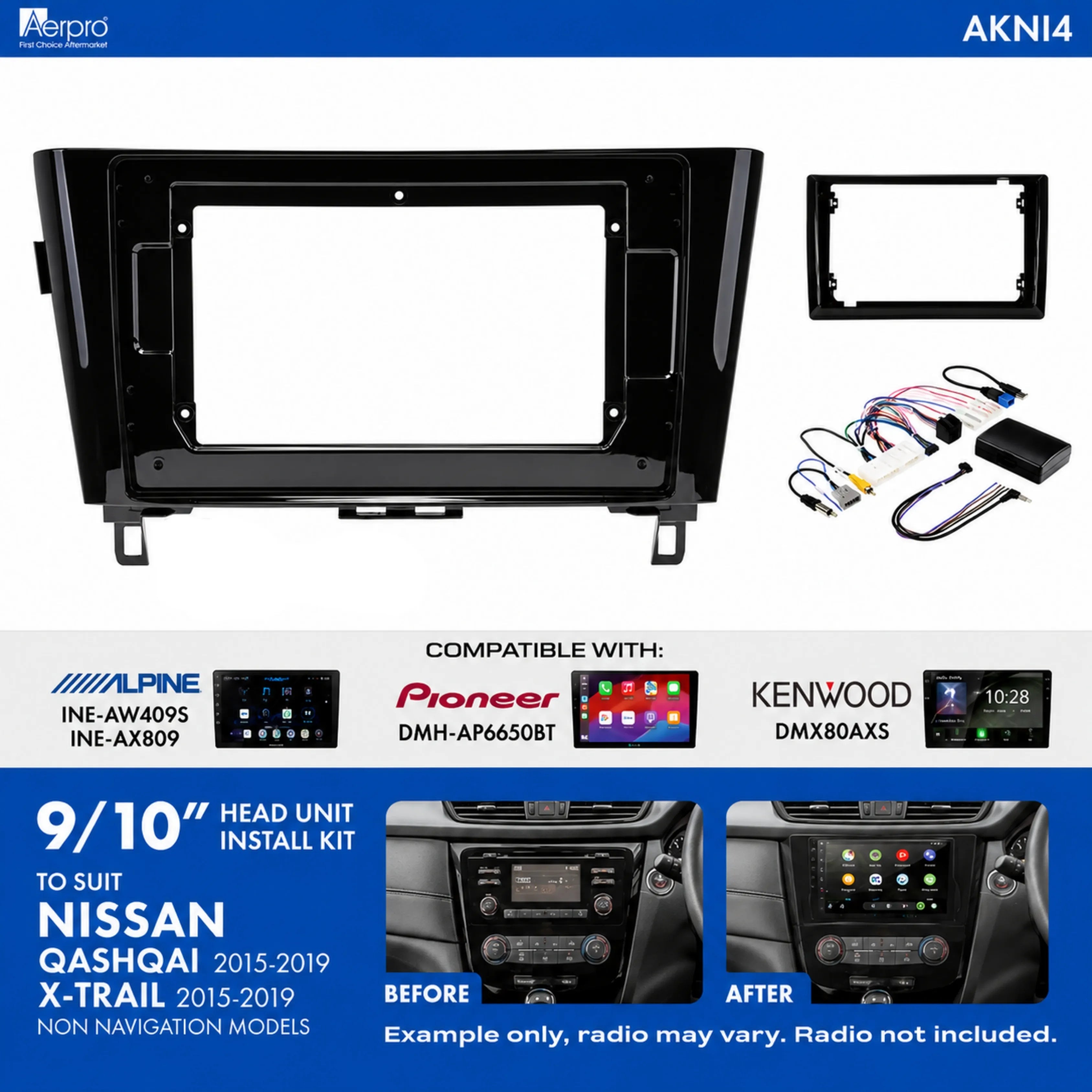

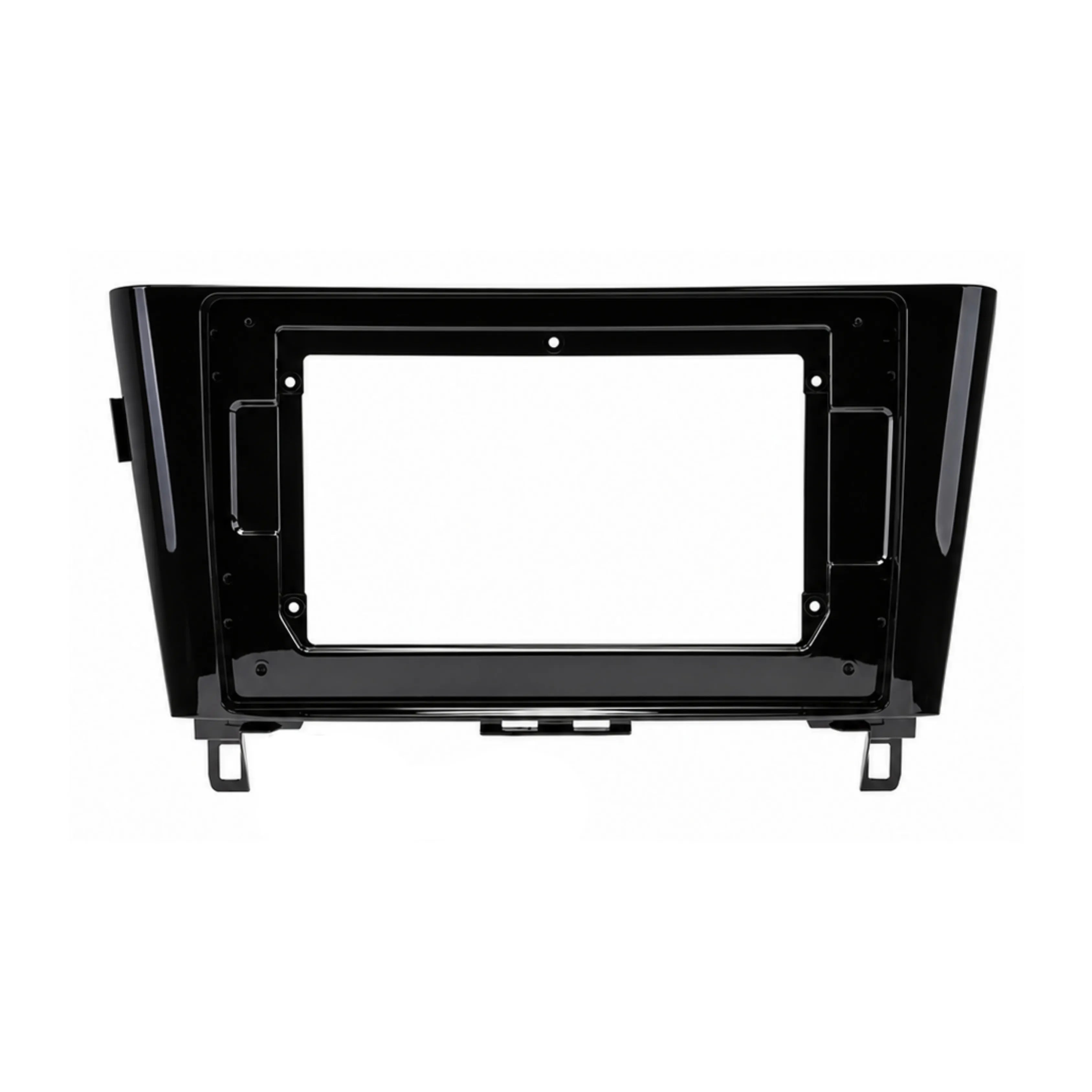

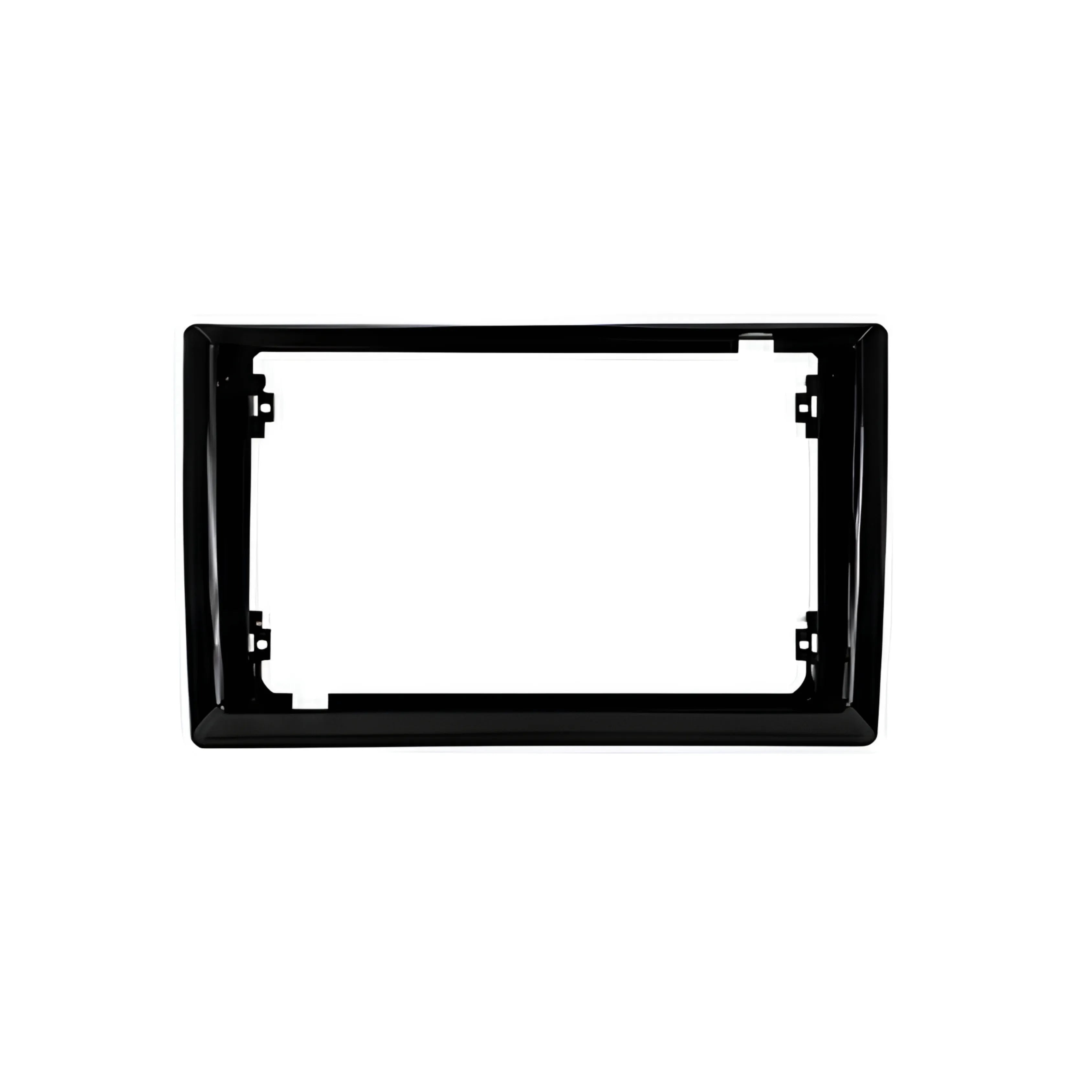

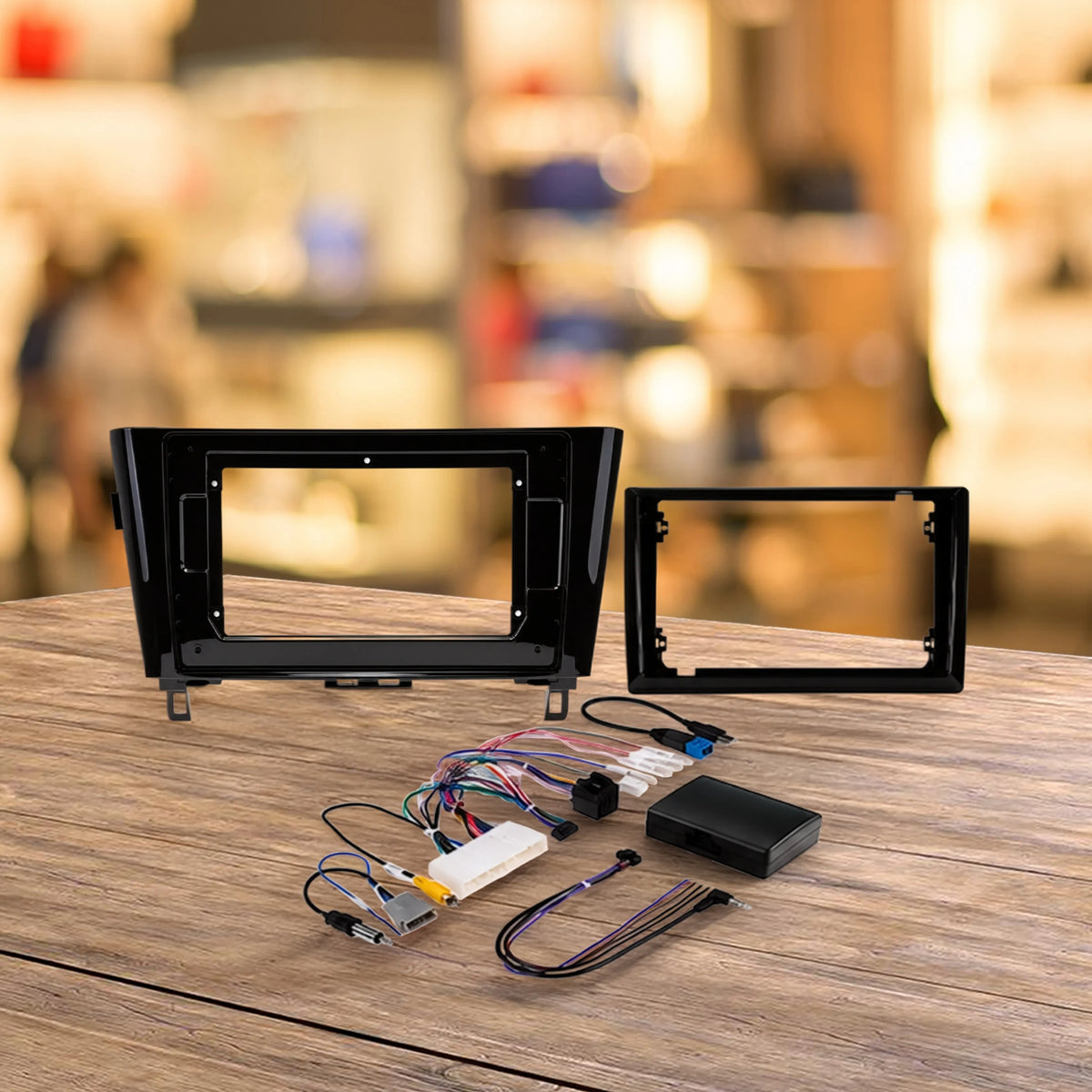

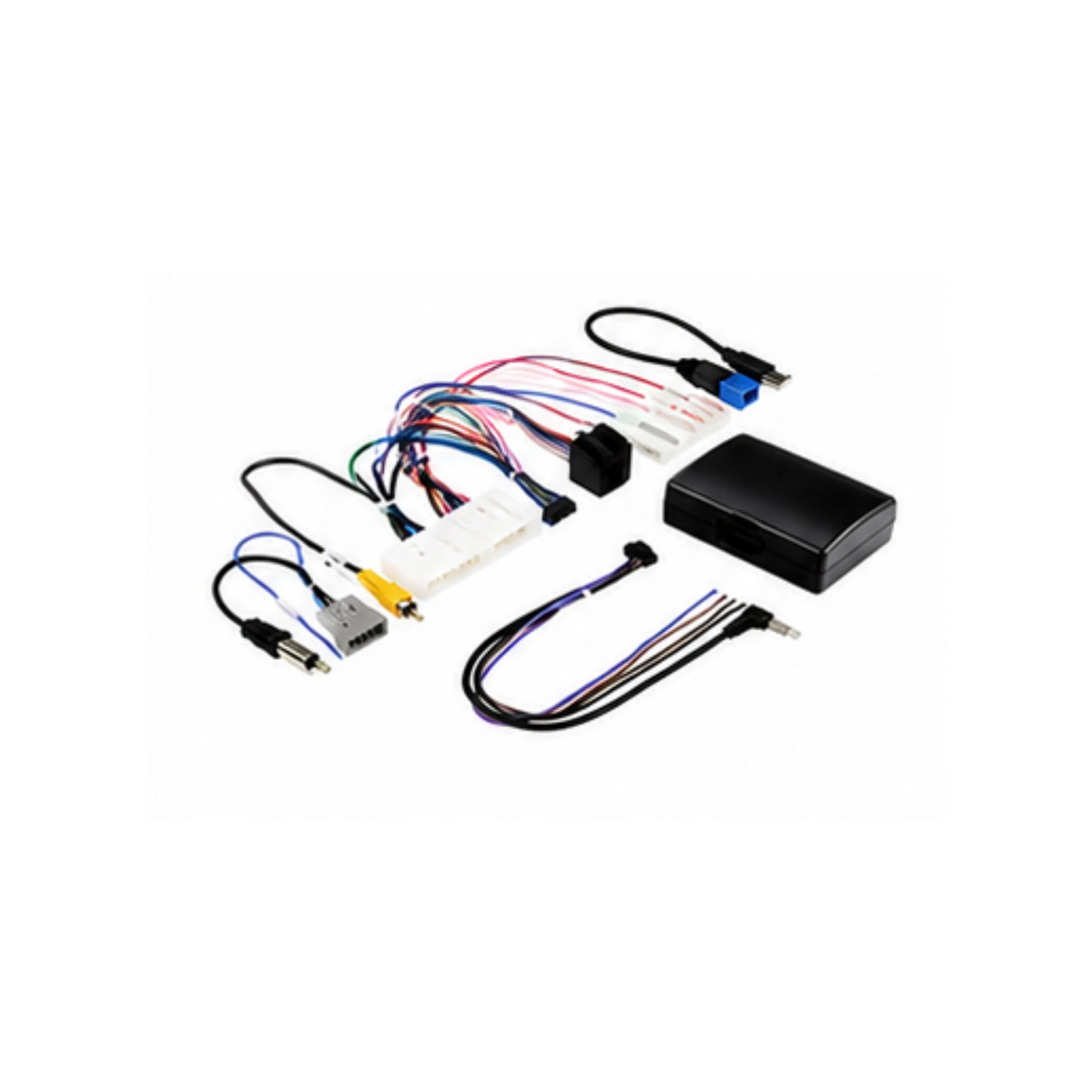

This kit pairs a gloss black fascia with a 9 or 10 inch adaptor. Wiring parts are a 360 camera retention adaptor, an antenna adaptor, a factory USB harness, and the SWC interface harness with its SWC patch lead.

Install notes

On a Pioneer unit, skip the CAN Bus option at first boot and pick Steering Wheel Control then With Adapter. Add an APP8 for the head unit ISO side.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the AKNI4

Does the AKNI4 fit an X Trail with factory nav?

No. It suits 2015 to 2019 Qashqai and X Trail models without factory navigation.

Which radios suit the AKNI4?

Listed 9 or 10 inch trapezoid units from Alpine, Kenwood, Pioneer, Aerpro and Android makers. For the Qashqai and X Trail from 2015 to 2019 without factory nav, with a 9 or 10 inch trapezoid radio.

Is an ISO harness included in the AKNI4 kit?

No. Aerpro suggests adding its APP8 harness, which is sold on its own. This kit pairs a gloss black fascia with a 9 or 10 inch adaptor. Wiring parts are a 360 camera retention adaptor, an antenna adaptor, a factory USB harness, and the SWC interface harness with its SWC patch lead.
