Aerpro AKHY6 | 9" Install Kit Suit Hyundai iLoad & iMax 2008 - 2015 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Complete Installation Kit & Retain Important Vehicle Features!

9" Headunit Installation Kit
The Aerpro AKHY6 9" Installation Kit comes with all of the components required to install a 9" trapezoid-shaped radio into your Hyundai iLoad and iMax (2008-2015) vehicles with AST button on factory radio, whilst maintaining important vehicle features such as Steering Wheel Control functionality. The head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (Sold Separately).

Important Information:

• This kit is developed to suit universal trapezoid-shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN-sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: No
• AUX Input: No
• USB Input: No
• Parking Tones: No
• Factory Amplifier: No
• Vehicle Menu: No

Features:

• To suit Hyundai iLoad and iMax (2008-2015) vehicles with AST button on factory radio.
• Includes all the parts required to complete the installation and to retain important vehicle features.
• Retains steering wheel controls.
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters.

Vehicle Compatibility:

• Hyundai iLoad (Starex) 2008 - 2010 (With AST Button)
• Hyundai iLoad (Starex) 2010 - 2015
• Hyundai iMax 2008 - 2010 (With AST Button)

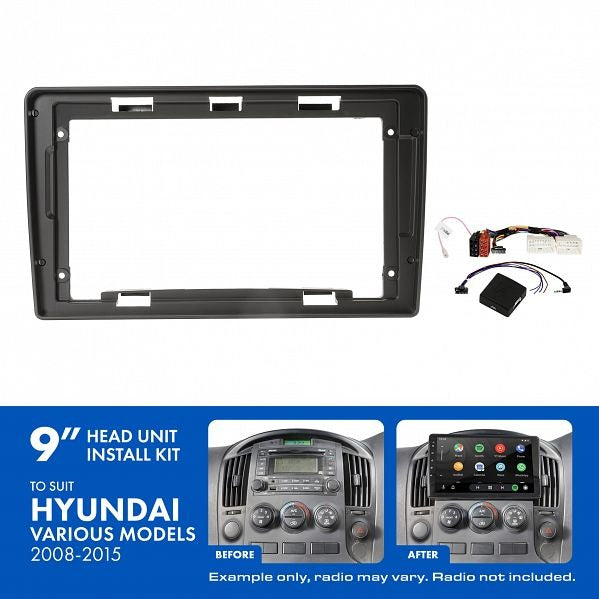

Kit Inclusions:

• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
