Aerpro AKHY12 9" Head Unit Install Kit Hyundai Tucson 2017-2018 Factory Nav

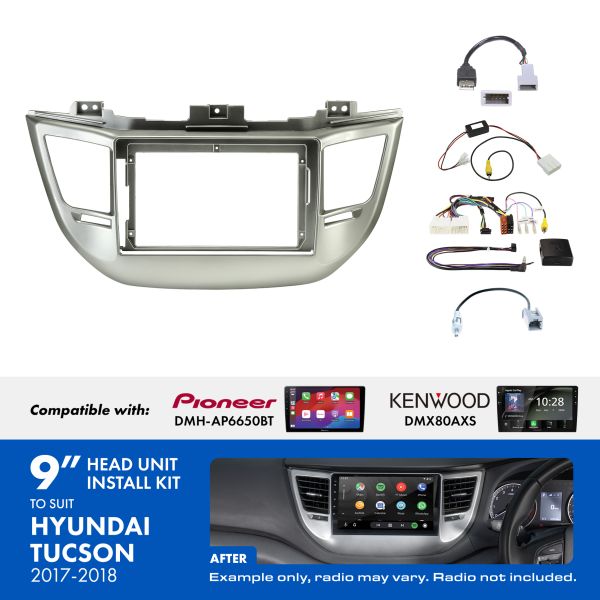

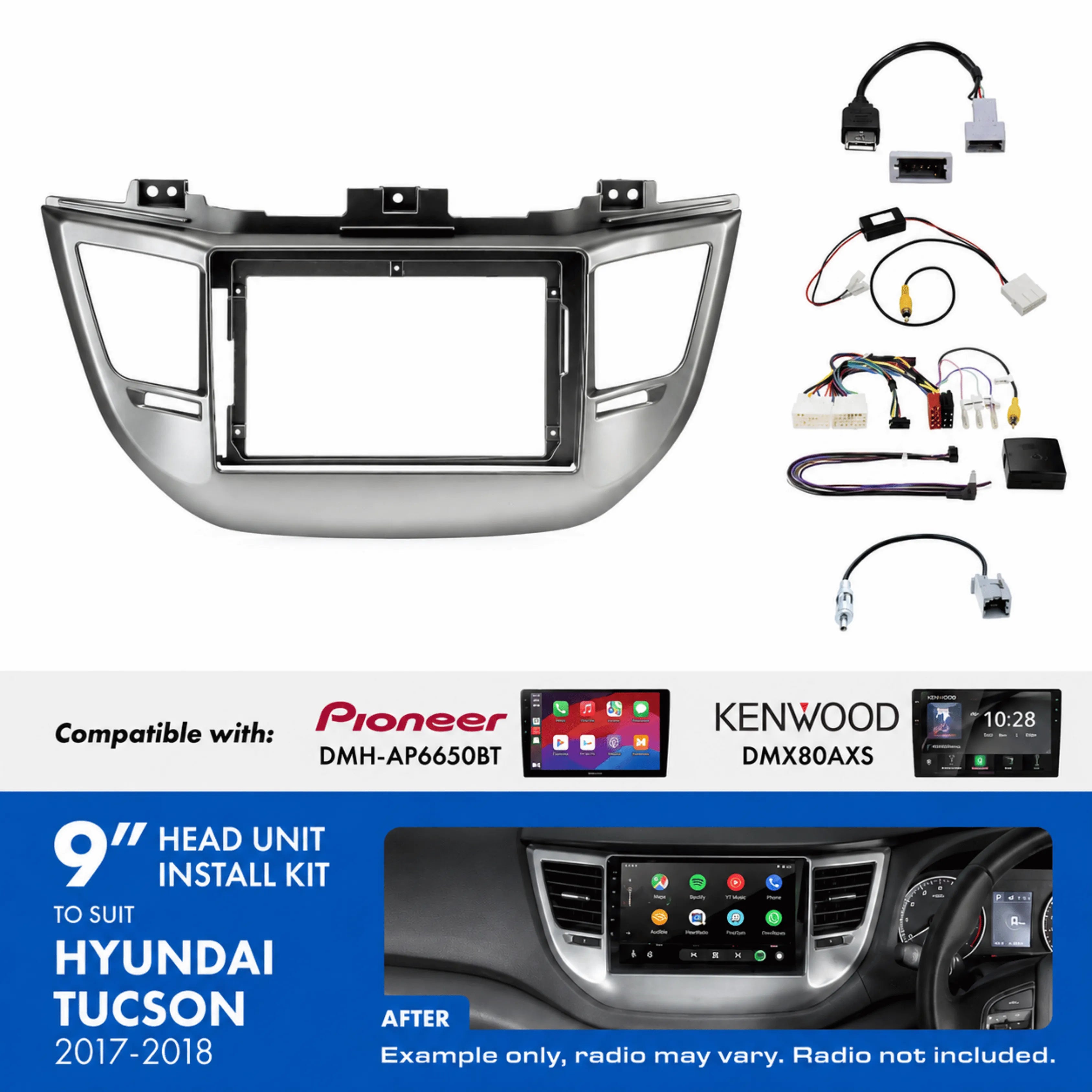

A complete 9" trapezoid head unit installation kit for the Hyundai Tucson (2017-2018) with factory navigation, the AKHY12 includes a silver fascia kit, SWC interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and factory USB retention harness, retaining steering wheel controls including the phone button, factory reverse camera, and factory USB input.

Product Overview

The Aerpro AKHY12 is a 9" head unit installation kit designed specifically for the Hyundai Tucson from 2017-2018 fitted with factory navigation. It is developed to suit universal trapezoid-shaped radios including the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X, and various Android head units. It will not suit standard DIN or Double DIN sized radios.

The kit includes a silver fascia kit, a steering wheel control interface harness, a SWC patch lead, an antenna adaptor, a camera retention adaptor, and a factory USB retention harness. Feature retention includes steering wheel controls with phone button support, factory reverse camera retention (if equipped), and factory USB input retention. Factory amplifier and vehicle menu retention are not supported. The AKHY12 suits Hyundai Tucson 2017-2018 vehicles with factory navigation only.

This kit does not support Pioneer CAN Bus features. For Pioneer head unit installations, instead of selecting CAN Bus Adapter at boot-up, go to the Menu and select Steering Wheel Control then With Adapter. Feature retention is radio dependent. The head unit ISO harness is not included; the Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately.

Features & Benefits

Complete 9" Trapezoid Installation Kit for Hyundai Tucson 2017-2018 with Factory Nav: The AKHY12 includes all components required to complete a 9" trapezoid head unit installation in the Hyundai Tucson 2017-2018 with factory navigation in a single purchase. The kit covers the fascia, SWC interface, patch lead, antenna adaptor, camera retention adaptor, and USB retention harness.

Suits Trapezoid-Shaped Radios - Not Standard DIN or Double DIN: The AKHY12 is designed for universal trapezoid-shaped head units including the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X, and various Android head units. It is not compatible with standard DIN or Double DIN radios.

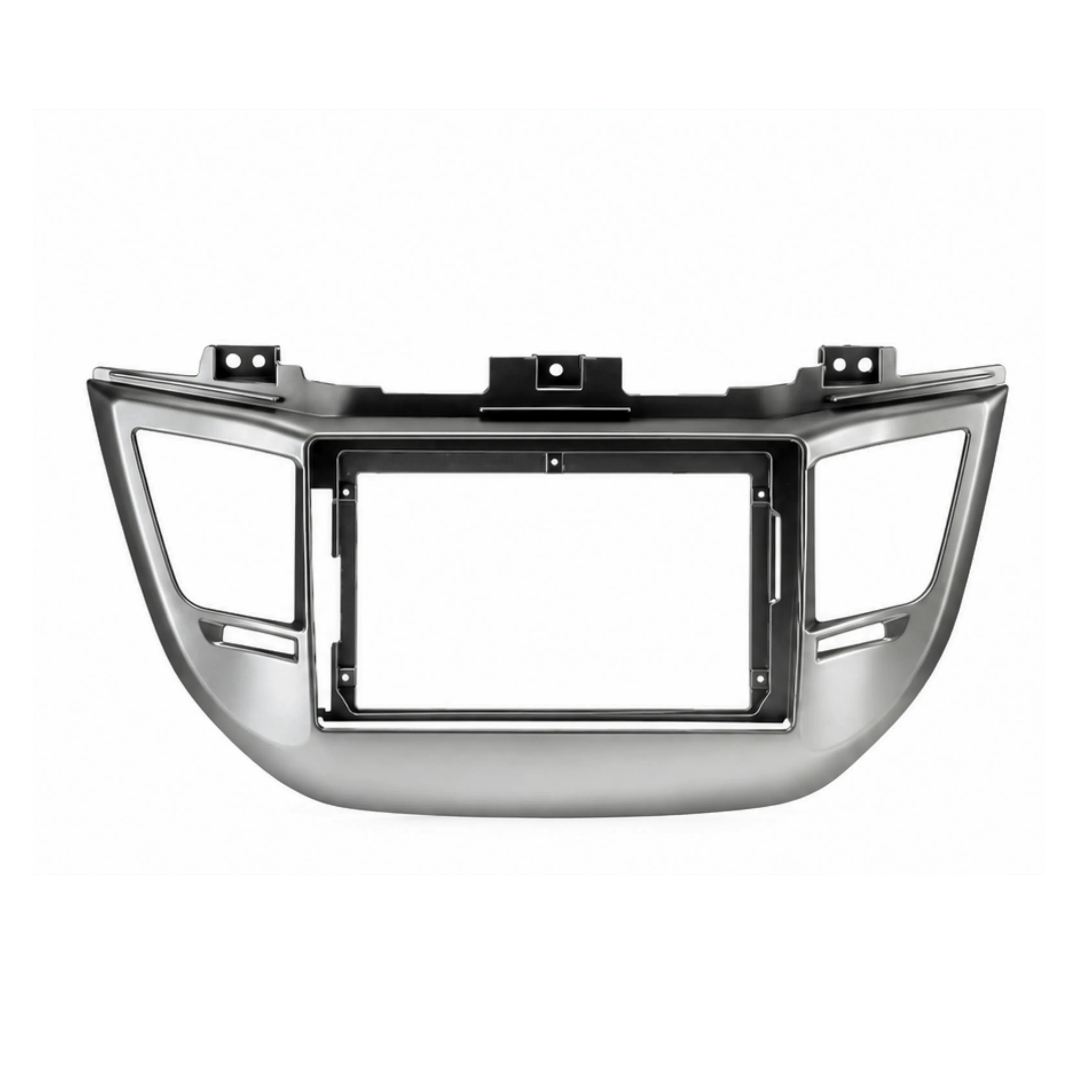

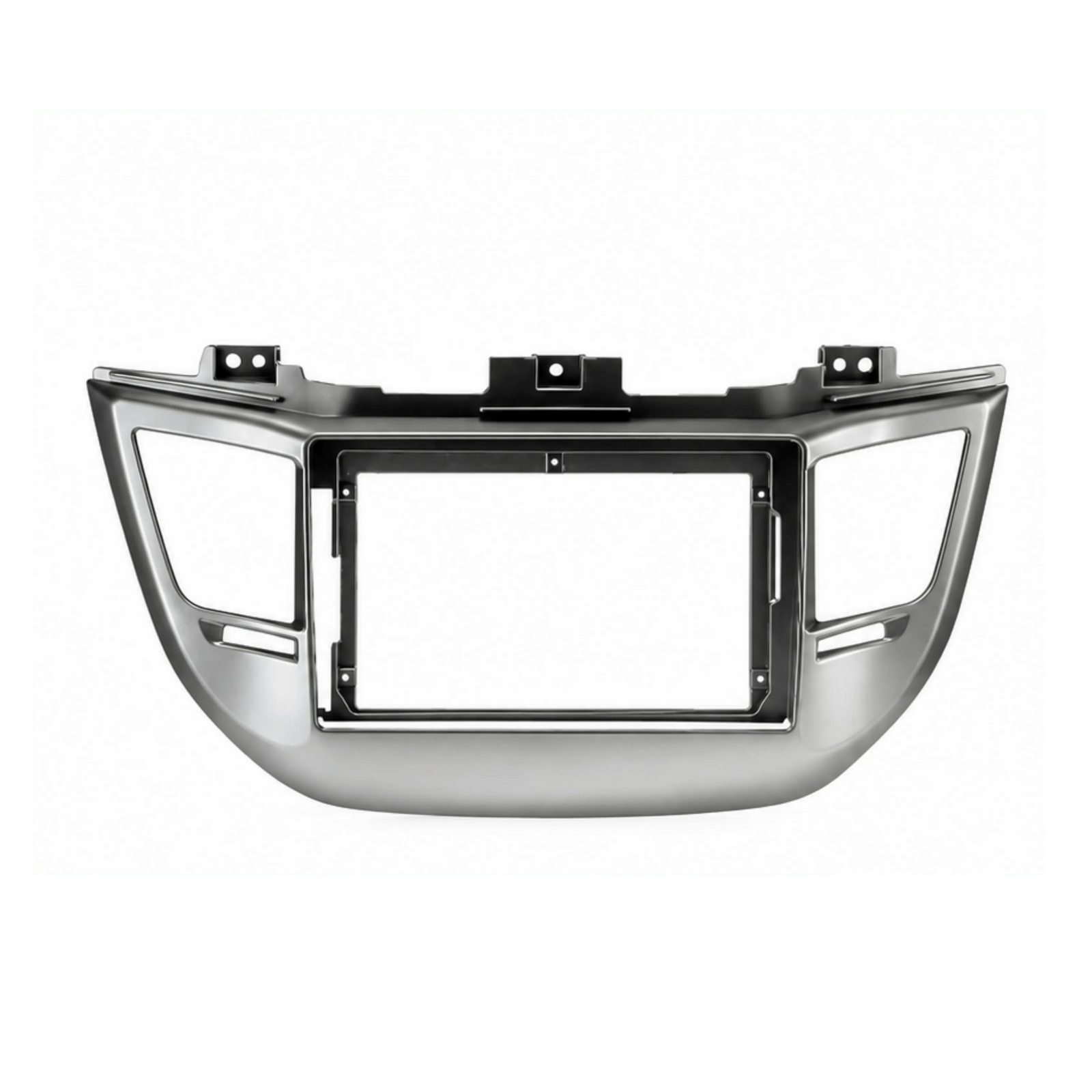

Silver Fascia Kit: The included silver fascia kit is designed for the Hyundai Tucson 2017-2018 with factory navigation dashboard profile, providing a factory-fit appearance around the 9" trapezoid head unit.

Steering Wheel Control Retention Including Phone Button: The included SWC interface harness and patch lead retain the factory steering wheel audio controls and phone button with compatible aftermarket head units. This kit does not support Pioneer CAN Bus features; Pioneer installations require the head unit to be configured via Menu - Steering Wheel Control - With Adapter rather than CAN Bus Adapter at boot-up.

Factory Reverse Camera Retention: The included camera retention adaptor retains the factory reverse camera (if equipped) for display on the aftermarket head unit when reverse gear is selected.

Factory USB Input Retention: The included factory USB retention harness retains the factory USB input functionality in the Tucson after the head unit installation.

Antenna Adaptor Included: The included antenna adaptor ensures the factory antenna connection from the Hyundai Tucson interfaces correctly with the aftermarket head unit's antenna input.

Suits Vehicles with Factory Navigation Only: The AKHY12 is designed for Hyundai Tucson 2017-2018 models fitted with factory navigation. Tucson models without factory navigation in this date range require a different kit.

Compatible with Aerpro APP8 Secondary ISO Harness: The AKHY12 is recommended to be installed with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately), which connects from the aftermarket head unit directly into the SWC interface harness supplied in this kit.

Technical Specs

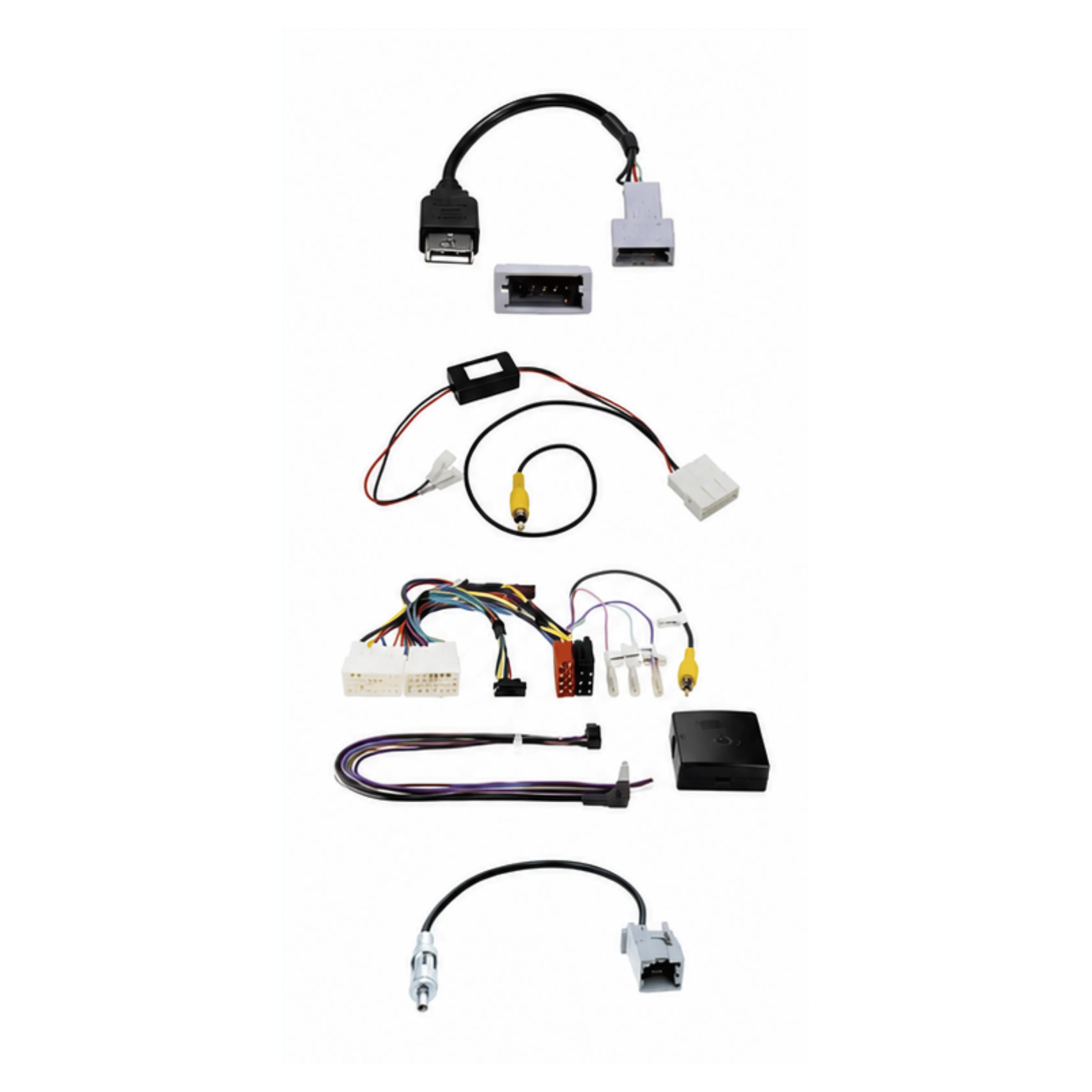

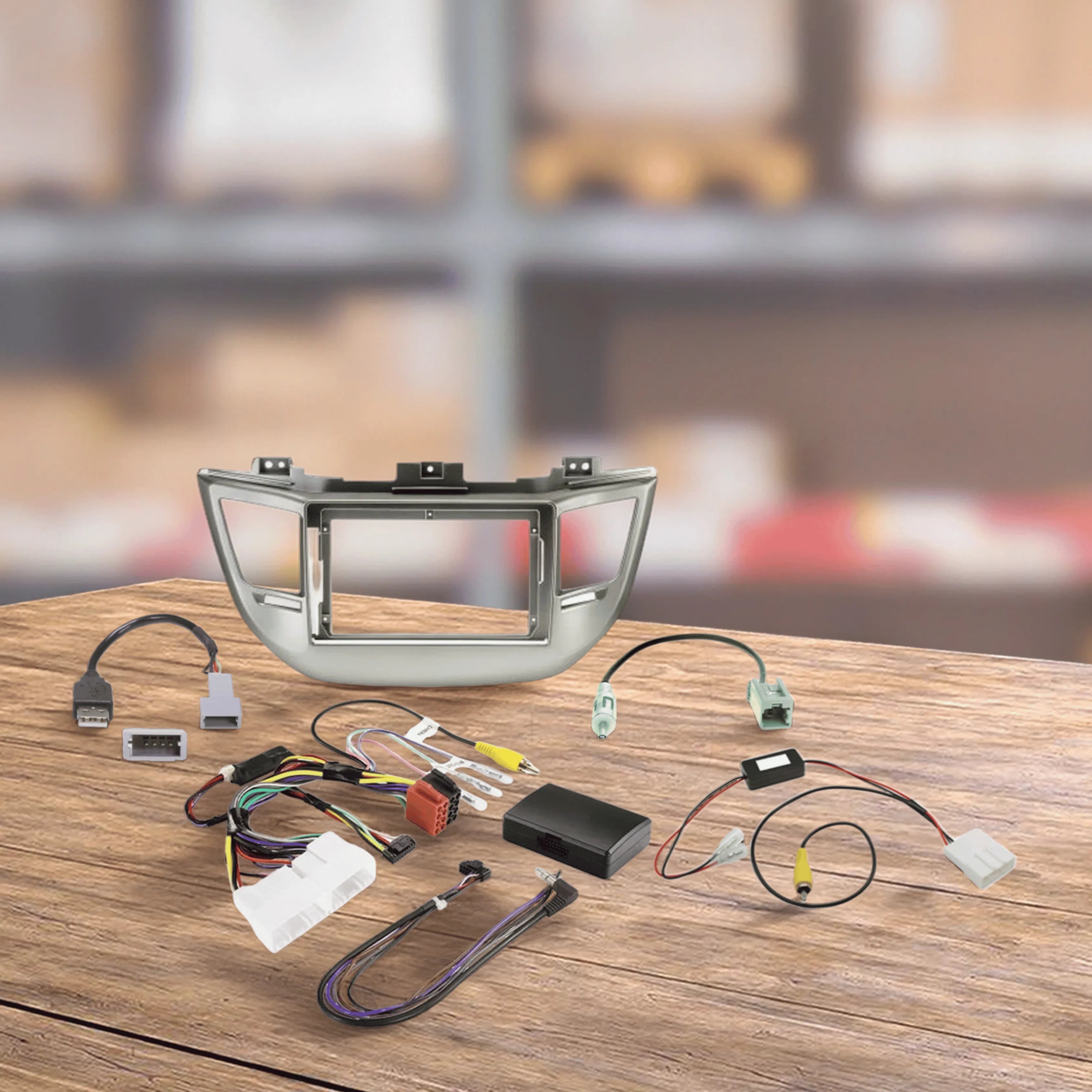

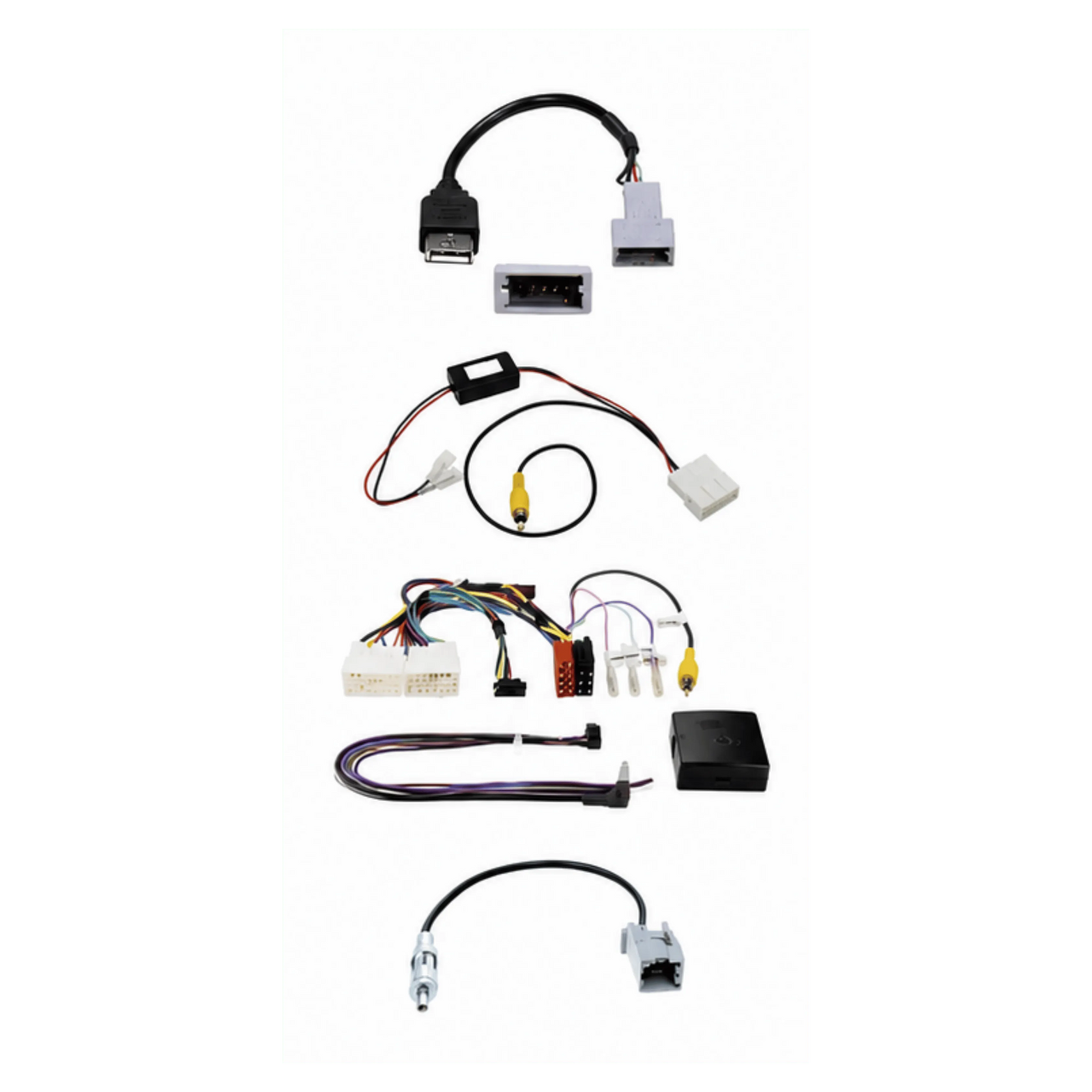

What's in the Box

• Silver Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• Factory USB Retention Harness

Compatible With

The AKHY12 is designed for the Hyundai Tucson from 2017-2018 fitted with factory navigation. It suits universal trapezoid-shaped radios including the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X, and various Android head units. It does not suit standard DIN or Double DIN radios. The Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately. Feature retention is radio dependent.

Frequently Asked Questions

Does the AKHY12 suit Hyundai Tucson models without factory navigation?

No. The AKHY12 is designed specifically for Hyundai Tucson 2017-2018 models fitted with factory navigation. Models without factory navigation require a different installation kit. Use the Aerpro vehicle fitment guide to confirm the correct kit for your specific vehicle.

Does the AKHY12 support Pioneer CAN Bus features?

No. The AKHY12 does not support Pioneer CAN Bus features. For Pioneer head unit installations, do not select CAN Bus Adapter at boot-up. Instead, navigate to Menu, select Steering Wheel Control, then select With Adapter to correctly configure the SWC interface.

Is a head unit ISO harness included in the AKHY12?

No. The head unit ISO harness is not included. The Aerpro APP8 Head Unit Secondary ISO Harness is recommended and available separately. It connects from the aftermarket head unit directly into the SWC interface harness supplied in this kit.

Does the AKHY12 retain the factory Hyundai Tucson reverse camera?

Yes. The included camera retention adaptor retains the factory reverse camera (if equipped) for display on the aftermarket head unit when reverse gear is selected.

Does the AKHY12 suit Double DIN head units?

No. The AKHY12 is designed for 9" trapezoid-shaped head units only and will not suit standard DIN or Double DIN sized radios.
