Aerpro AKHY1 Hyundai i30 2012 to 2017 9 Inch Head Unit Installation Kit

Aerpro AKHY1 Hyundai i30 2012 to 2017 9 Inch Head Unit Installation Kit

A complete 9 inch head unit installation kit for the Hyundai i30 GD (2012 to 2017) without factory navigation, retaining steering wheel controls including the phone button, parking tones, and factory reverse camera if equipped, with USB retention supported on GD-03 models.

Product Overview

The Aerpro AKHY1 is a 9 inch installation kit engineered specifically for the Hyundai i30 GD (2012 to 2017) in vehicles without factory navigation. The kit includes all components required to mount a universal trapezoid shaped 9 inch radio into the dashboard while retaining steering wheel controls including the phone button, parking tones, and factory reverse camera if the vehicle is equipped with one.

Compatible head units include the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Alpine INE-AW409S and INE-AX809, Aerpro AM9X, and various Android head units. A head unit ISO harness is not included, the Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately. This kit does not support Pioneer CAN Bus features. On boot-up, instead of selecting CAN Bus Adapter, go to Menu and select Steering Wheel Control > With Adapter. Feature retention is radio dependent. This kit is not compatible with standard DIN or double DIN sized radios.

Please note the included USB retention harness suits GD-03 factory head unit models only. Vehicles with a GD-01 or GD-02 factory head unit will require the Aerpro APHYUSB4 (sold separately) to retain the factory USB input.

Features & Benefits

Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness and SWC patch lead retain full factory steering wheel control functionality including the phone button.

Retains Parking Tones: Factory parking tone functionality is retained after installation.

Retains Factory Reverse Camera (If Equipped): A camera retention adaptor is included, maintaining the factory reverse camera feed through the new aftermarket head unit for vehicles fitted with a factory reverse camera.

USB Retention Included for GD-03 Models: A factory USB retention harness is included in the kit and suits Hyundai i30 GD-03 models only. Vehicles with a GD-01 or GD-02 factory head unit will require the Aerpro APHYUSB4 adaptor, sold separately.

Black Fascia Kit for Clean OEM-Style Finish: The black fascia kit provides a clean, vehicle-specific dashboard fit for the Hyundai i30 2012 to 2017.

APP8 Compatible for Simplified Installation: The kit is designed for use with the Aerpro APP8 aftermarket head unit harness adapter (sold separately), simplifying the secondary ISO connection during installation.

Technical Specs

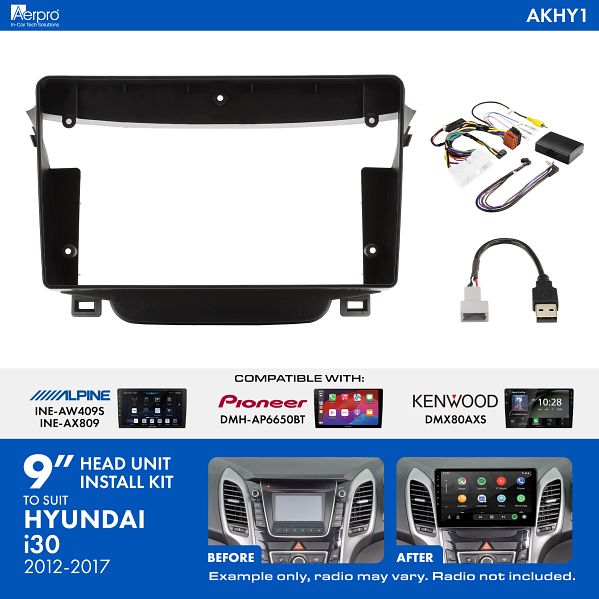

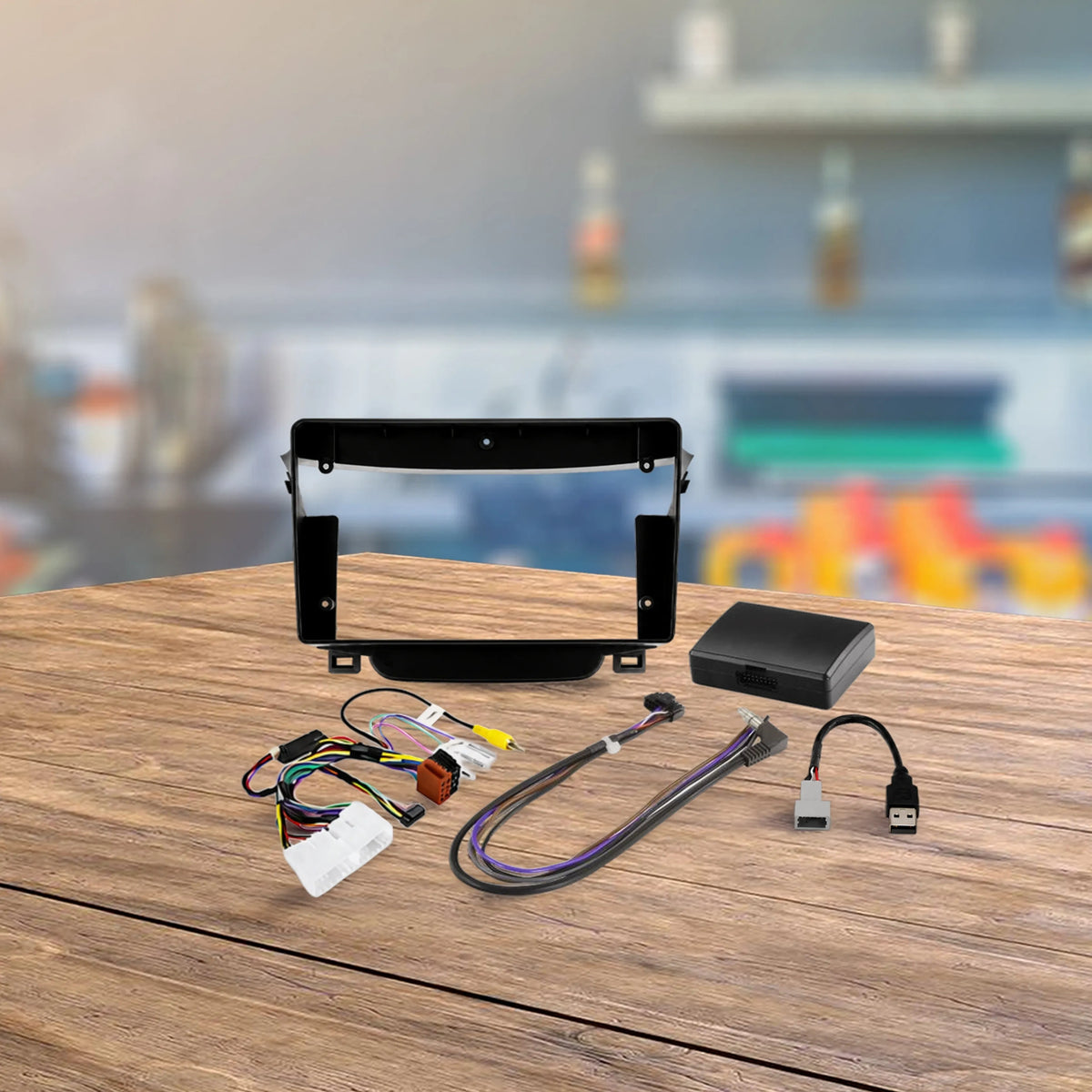

What's in the Box

• Black Fascia Kit

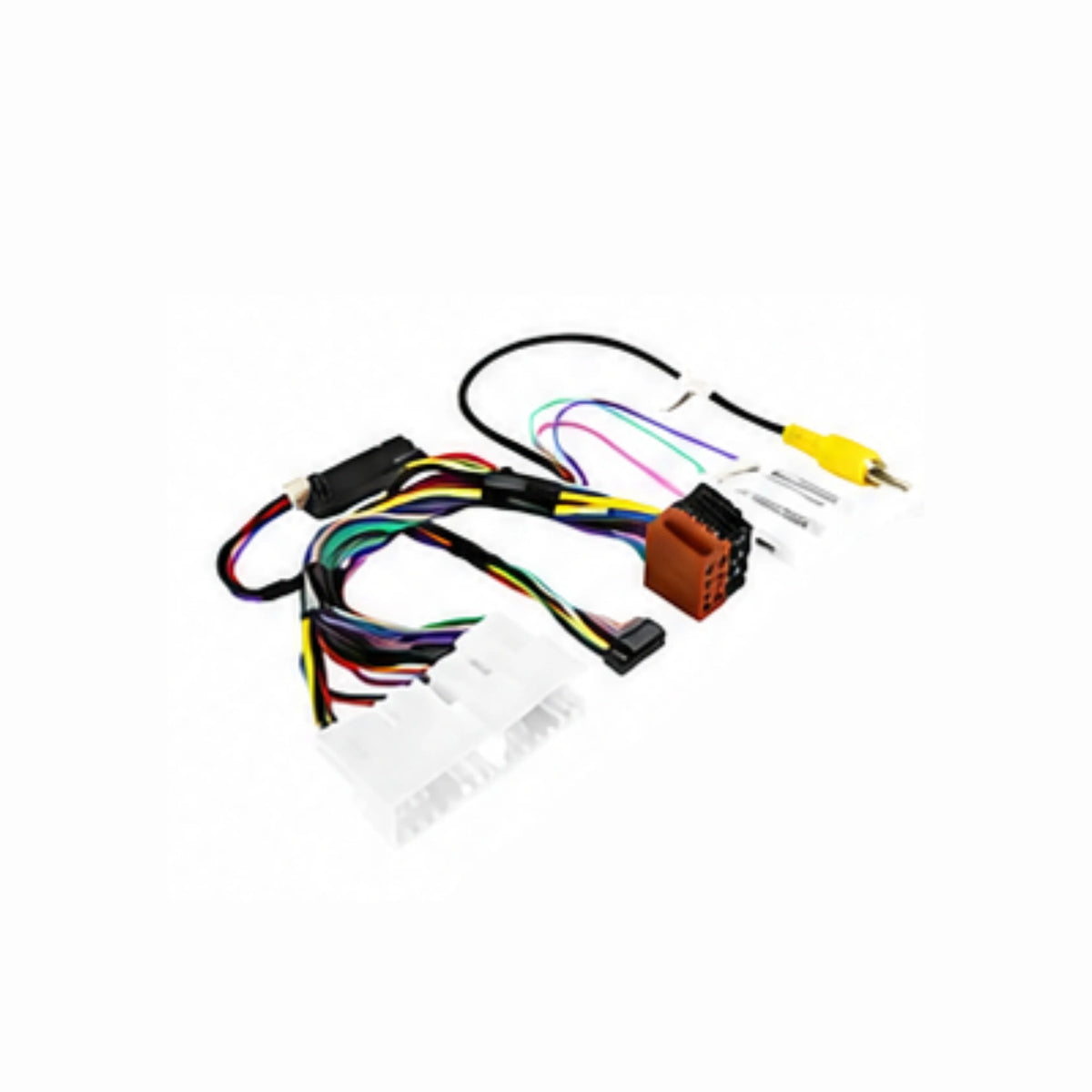

• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Camera Retention Adaptor
• Factory USB Retention Harness (GD-03 models only)

Compatible With

• Hyundai i30 GD 2012 to 2017 (without factory navigation)

This kit is not compatible with Hyundai i30 models fitted with factory navigation. USB retention harness suits GD-03 factory head unit models only. GD-01 and GD-02 models require the Aerpro APHYUSB4 (sold separately) for factory USB retention.

Goes Well With

• Aerpro APP8 Head Unit Secondary ISO Harness (sold separately, required to complete installation)
• Aerpro APHYUSB4 USB/AUX Retention Adaptor (sold separately, required for GD-01 and GD-02 models to retain factory USB)

FAQ

What is the Aerpro AKHY1?

The Aerpro AKHY1 is a 9 inch installation kit engineered specifically for the Hyundai i30 GD (2012 to 2017) in vehicles without factory navigation.

How do I know if my i30 has a GD-01, GD-02, or GD-03 factory head unit?

The USB retention harness included in the AKHY1 suits GD-03 factory head unit models only. GD-01 and GD-02 factory head unit vehicles will need the Aerpro APHYUSB4 USB/AUX Retention Adaptor (sold separately) to retain the factory USB input. Please contact us before purchasing if you are unsure which factory head unit your vehicle has.

Does this kit support Pioneer CAN Bus features?

No. The AKHY1 does not support Pioneer CAN Bus features. When using a Pioneer head unit, on boot-up do not select CAN Bus Adapter. Instead, go to Menu and select Steering Wheel Control > With Adapter to correctly configure the steering wheel control interface included in this kit.

Is an ISO harness included in this kit?

No. The AKHY1 does not include a head unit ISO harness. Aerpro recommends pairing this kit with the Aerpro APP8 Head Unit Secondary ISO Harness, which is sold separately. Please add the APP8 to your order to complete the installation.

Will this kit work if my Hyundai i30 has factory navigation?

No. The AKHY1 is designed for Hyundai i30 GD (2012 to 2017) vehicles without factory navigation. Please contact us to confirm the correct kit for your vehicle if it is fitted with factory navigation.

Does this kit retain parking tones?

Yes. Parking tone functionality is retained after installation with the AKHY1 kit.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
