Aerpro AKCFO10 9
Aerpro AKCFO10 9" Install Kit Ford Focus LZ 2015-2018 SYNC 3
Click to open expanded view
AERPRO logo

Aerpro AKCFO10 9" Install Kit Ford Focus LZ 2015-2018 SYNC 3

SKU: AKCFO10
Price
$849.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AKCFO10 9 Inch Trapezoid Install Kit for Ford Focus LZ 2015 to 2018 SYNC 3 SWC Climate Control and Parking Visualisation Retention Infolink Plus

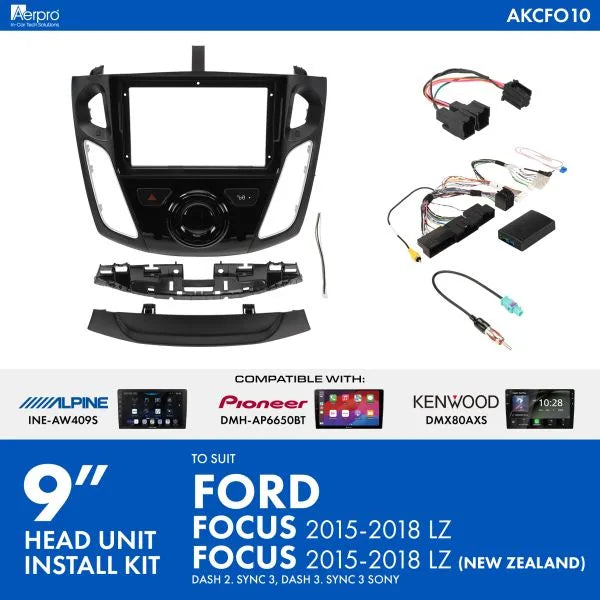

The Aerpro AKCFO10 is a 9-inch trapezoid head unit installation kit for the Ford Focus LZ (2015 to 2018) with SYNC 3. Includes black facia kit, SWC Infolink harness, antenna adaptor, and factory USB retention harness. Retains steering wheel controls including phone button, factory reverse camera, vehicle climate control, and parking visualisation on the aftermarket display where equipped. ISO harness not included pair with Aerpro APP8 head unit secondary ISO harness (sold separately).

Product overview

The AKCFO10 provides all components required to complete a 9-inch trapezoid aftermarket head unit installation in the Ford Focus LZ (2015 to 2018) with SYNC 3, while retaining key factory features. The Infolink Plus interface retains vehicle menus, OEM amplifier, and OEM reverse camera. Climate control and parking visualisation are retained on the aftermarket display where factory equipped. Reverse trigger, park brake, speed pulse, and illumination outputs are provided.

This kit suits 9-inch trapezoid-format head units only it is not compatible with standard single DIN or double DIN radios. Pioneer CAN Bus features are not supported; for Pioneer units, select "Steering Wheel Control" then "With Adapter" in the menu rather than "CAN Bus Adapter" on boot-up. Feature retention is radio dependent.

Compatible head units

Brand Model
Alpine INE-AW409S
Kenwood DMX80AXS
Pioneer DMH-AP6650BT
Aerpro AM9X, AM905D
Various Android head units (9-inch trapezoid format)

Features and benefits

Suits Ford Focus LZ 2015 to 2018 with SYNC 3.

Retains steering wheel controls including phone button.

Retains factory reverse camera where equipped.

Retains vehicle climate control and parking visualisation on the aftermarket display where equipped.

Infolink Plus interface: Vehicle menus, OEM amplifier, and OEM reverse camera retained.

Reverse trigger (purple), park brake (green), speed pulse (pink), and illumination outputs included.

Black facia kit, SWC Infolink harness, antenna adaptor, and factory USB retention harness included.

ISO harness not included: Pair with Aerpro APP8 head unit secondary ISO harness (sold separately).

Suits 9-inch trapezoid head units only: Not compatible with standard single DIN or double DIN radios.

What's in the box

  • 1x black facia kit
  • SWC Infolink harness
  • Antenna adaptor
  • Factory USB retention harness

Technical specs

Specification Detail
SKU AKCFO10
Brand Aerpro
Type 9-inch head unit installation kit
Head Unit Format 9-inch trapezoid
Interface Type Infolink Plus
Patch Lead Type H
Reverse Trigger Yes (purple)
Park Brake Output Yes (green)
Speed Pulse Output Yes (pink)
Illumination Output Yes
Amp Remote Output No
Telephone Mute Output No
Vehicle Menus Retained Yes
OEM Amplifier Retained Yes
OEM Reverse Camera Retained Yes
OEM AUX Input Retained No
OEM USB Input Retained No
OEM Antenna Retained No
ISO Harness Included No (APP8 recommended, sold separately)

Compatible with

Make Model Years Notes
Ford Focus 2015 to 2018 LZ, SYNC 3 models

Frequently asked questions

Does the AKCFO10 retain steering wheel controls?

Yes. The AKCFO10 retains steering wheel controls including the phone button via the included SWC Infolink harness.

Does the AKCFO10 retain climate control and parking visualisation?

Yes, where the vehicle is factory equipped. Climate control and parking visualisation are retained on the aftermarket display via the Infolink Plus interface.

Is the ISO harness included?

No. The AKCFO10 does not include an ISO harness. Aerpro recommends pairing this kit with the APP8 head unit secondary ISO harness, sold separately.

Does the AKCFO10 support Pioneer CAN Bus features?

No. Pioneer CAN Bus features are not supported by this kit. For Pioneer head units, on boot-up do not select "CAN Bus Adapter" instead go to Menu, select "Steering Wheel Control", then select "With Adapter".

Will the AKCFO10 suit a standard double DIN head unit?

No. The AKCFO10 is designed for 9-inch trapezoid-format head units only and is not compatible with standard single DIN or double DIN radios.
