Aerpro AEM2RB58 9.6 Inch E-Mirror DVR Camera Ford Ranger VW Amarok
Click to open expanded view
AERPRO logo

Aerpro AEM2RB58 9.6 Inch E-Mirror DVR Camera Ford Ranger VW Amarok

SKU: AEM2RB58
Price
$499.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AEM2RB58 9.66 Inch Digital E-Mirror with Front and Rear AHD 1080P DVR Cameras and AEMB158 Bracket for Ford Ranger and Volkswagen Amarok with Rain Sensor

The AEM2RB58 from Aerpro is a complete digital e-mirror kit pairing the AEM2R 9.66 inch IPS touchscreen e-mirror with the AEMB158 vehicle-specific mounting bracket, matched for Ford Ranger (PX2, PX3, and RA) and Volkswagen Amarok (2022 to 2026) models fitted with rain sensor windscreens. Included front and rear AHD 1080P cameras provide dual-channel 1080P DVR recording with a Sony STARVIS 2 rear sensor, live rear vision feed, automatic reversing guidelines, and 5-year warranty coverage. This kit is confirmed for rain sensor equipped vehicles only. A MicroSD card up to 256GB is supported for onboard recording storage and is sold separately.

Product overview

Ford Ranger and Volkswagen Amarok vehicles fitted with canopies, campers, or trays lose effective factory rearview mirror vision as the rear is fully obstructed. The AEM2RB58 addresses this by replacing the factory rearview mirror entirely with a 9.66 inch IPS touchscreen displaying a live AHD 1080P rear camera feed, restoring clear and unobstructed rear sightlines regardless of what is mounted in the tray or tub. The 1000 nit display with automatic brightness adjustment remains clearly legible in direct sunlight and low-light conditions, and a flip switch allows instant reversion to a conventional mirror view when needed.

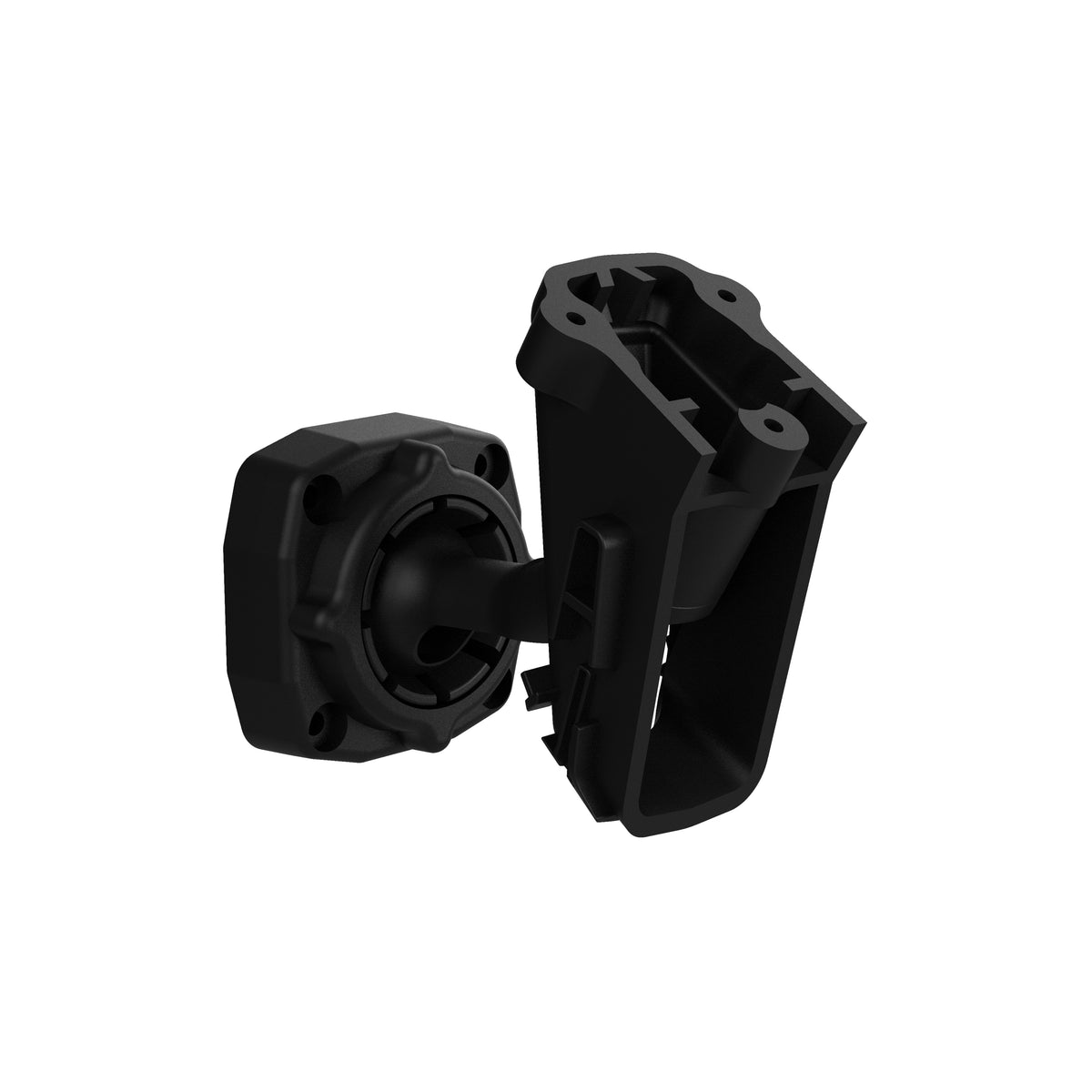

The AEMB158 bracket is included in the box and installs in place of the factory mirror without cutting or fabrication, providing a clean factory-quality result. This bracket is specifically designed for rain sensor windscreen-equipped variants of the Ford Ranger PX2, PX3, and RA, and Volkswagen Amarok 2022 to 2026. Confirm your specific variant has a rain sensor windscreen before ordering. The front and rear AHD 1080P cameras record simultaneously in dual-channel 1080P HD continuously, with automatic impact-triggered event saving protecting critical footage.

Features and benefits

Complete kit with vehicle-specific rain sensor bracket included: The AEM2R digital e-mirror and AEMB158 vehicle-specific mounting bracket for rain sensor windscreen vehicles are supplied together in a single box, eliminating the need to source and match a separate bracket.

Rain sensor windscreen compatibility: The AEMB158 bracket is specifically designed for Ford Ranger and Volkswagen Amarok models fitted with rain sensor windscreens. Confirm your vehicle has a rain sensor windscreen before ordering.

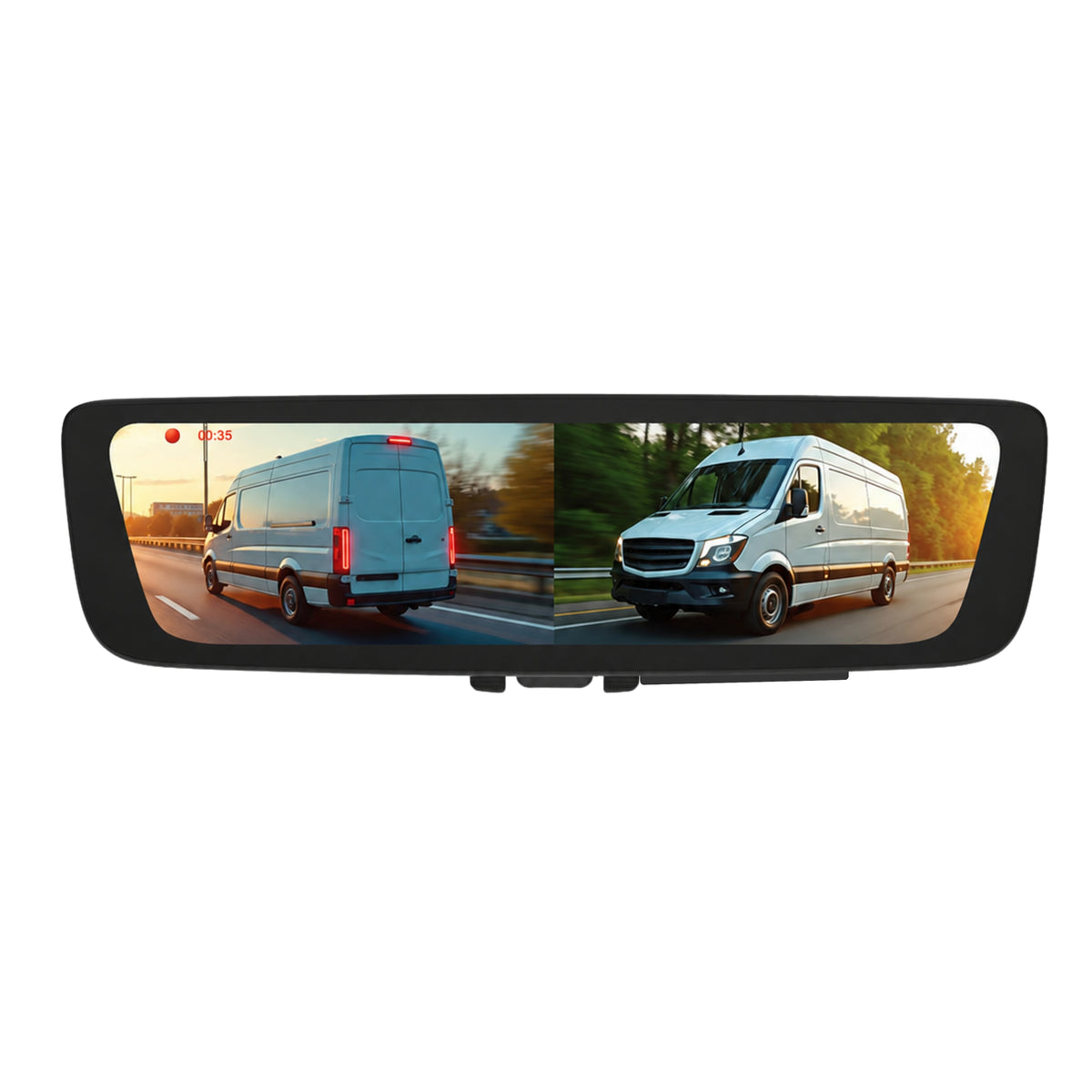

9.66 inch IPS touchscreen at 1920x480 resolution: The wide IPS display delivers a sharp, clear live camera feed across the full mirror footprint with touch control for system operation.

1000 nit display with automatic brightness adjustment: The super-bright 1000 nit display remains clearly visible in direct sunlight and automatically adjusts to ambient light levels for comfortable viewing at all times.

Sony STARVIS 2 rear camera sensor: The premium Sony STARVIS 2 image sensor delivers sharp, detailed footage in both daytime and low-light conditions for reliable rear vision coverage.

Dual AHD 1080P front and rear cameras with DVR recording: Both the front and rear cameras record simultaneously in dual-channel 1080P HD, with the rear at 30FPS and the front at 25FPS, providing comprehensive front and rear coverage in a single integrated system.

Automatic impact-triggered event saving: The built-in DVR automatically saves critical footage when an impact is detected, protecting evidence of incidents from being overwritten by continuous loop recording.

Automatic reverse camera activation with guidelines: Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines for precision manoeuvring assistance.

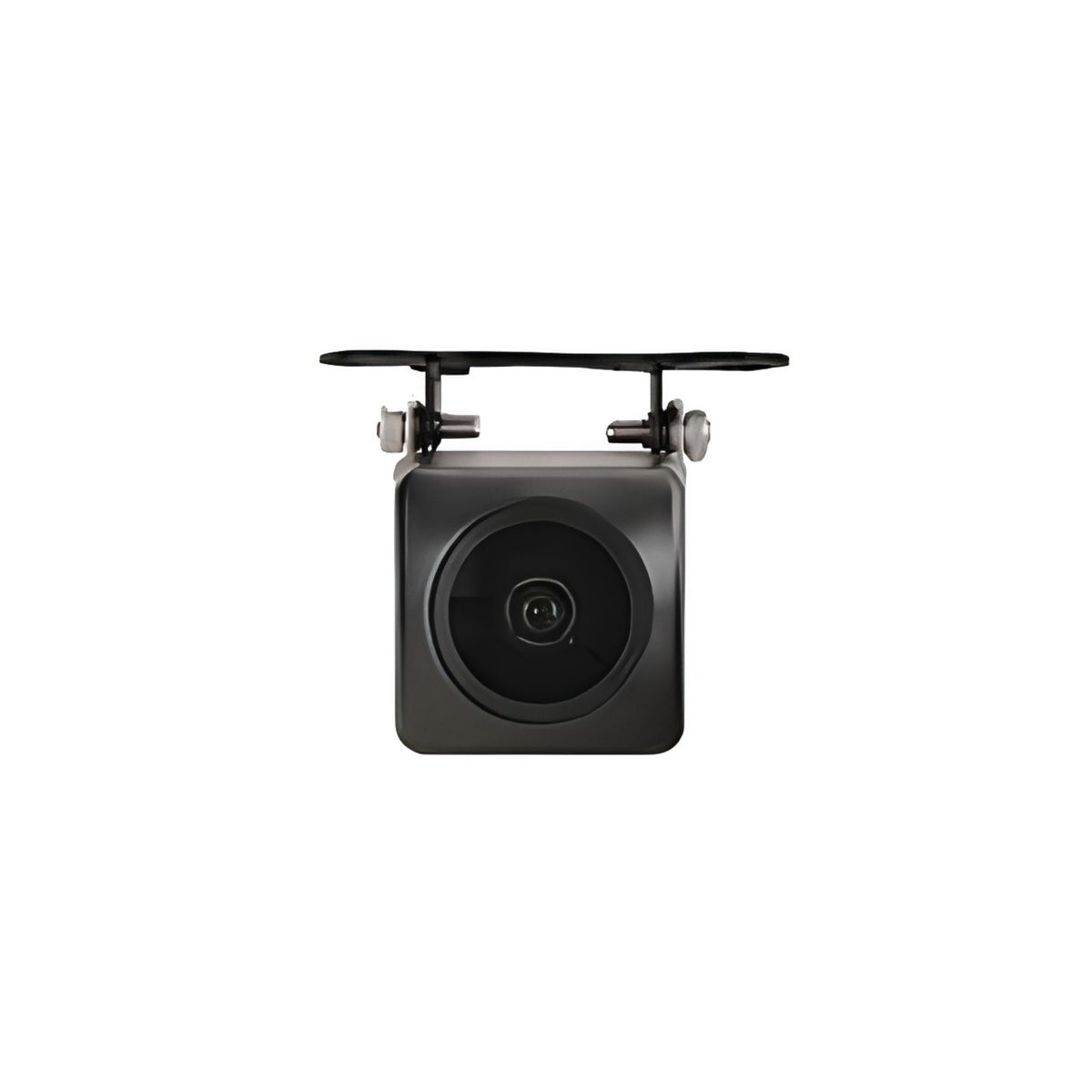

IP69 rated rear camera: The weatherproof IP69-rated rear camera withstands high-pressure wash-down and harsh outdoor conditions suited to canopy, camper, and tray-equipped applications.

MicroSD support up to 256GB: The system supports MicroSD cards up to 256GB (Class 10 required, sold separately) for extended dual-channel DVR recording storage.

12V and 24V compatible: Suitable for both standard and commercial applications across the confirmed Ford Ranger and Volkswagen Amarok model range.

5-year warranty: Backed by a 5-year warranty for long-lasting performance and peace of mind.

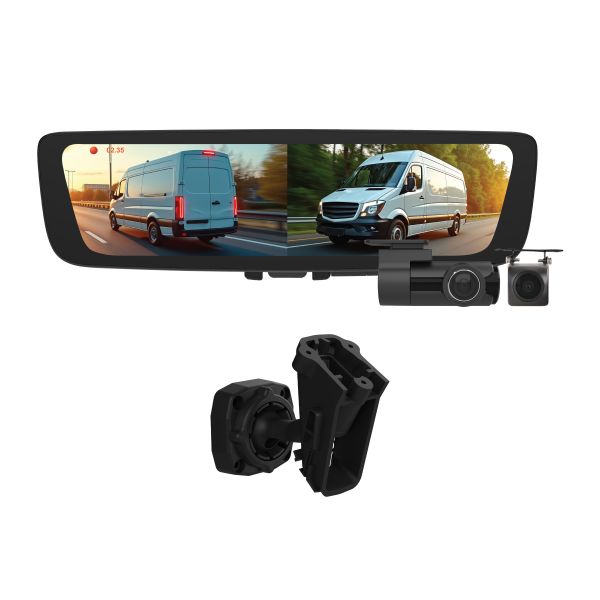

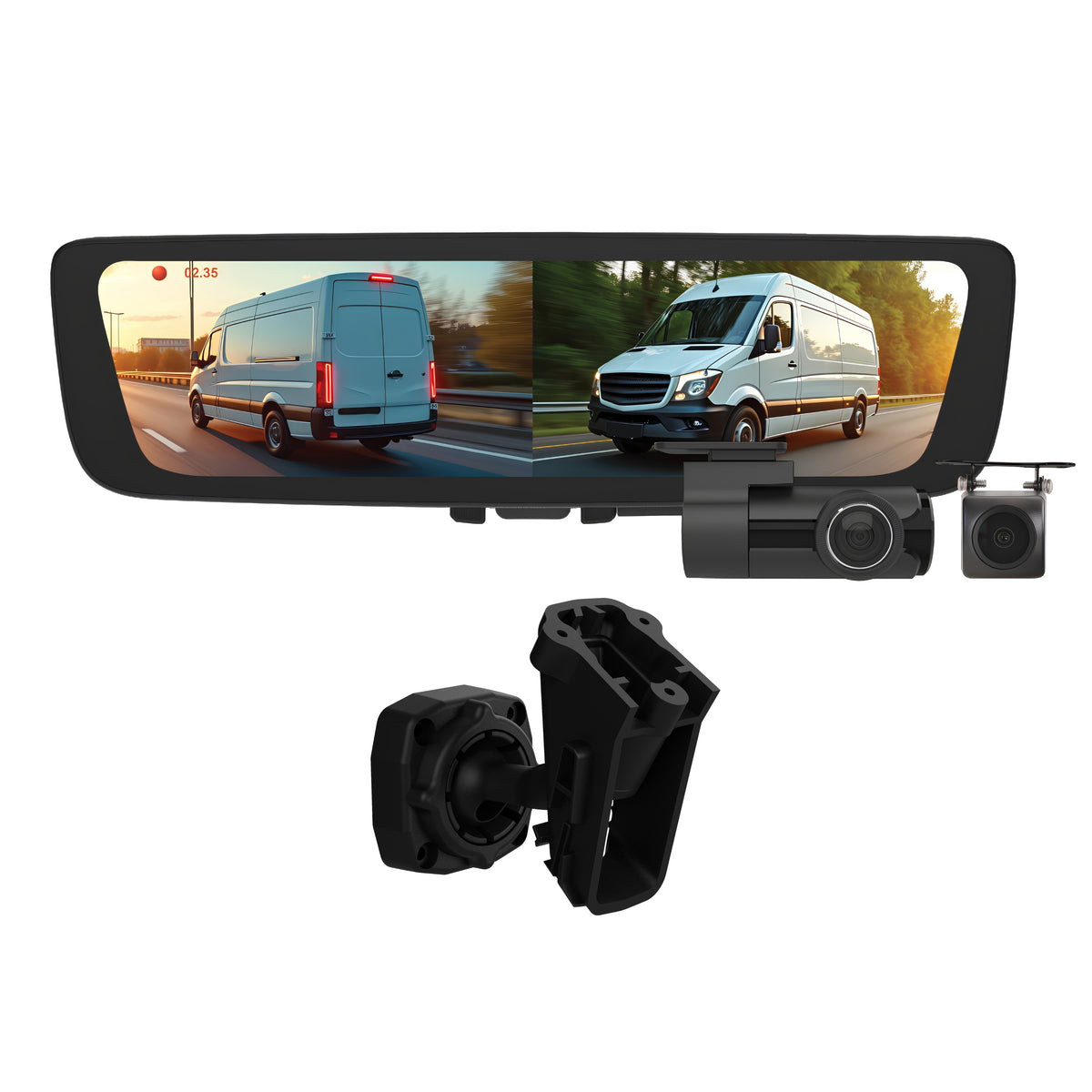

What's in the box

  • 1x AEM2R 9.66 inch Digital E-Mirror
  • 1x AHD 1080P Rear Camera

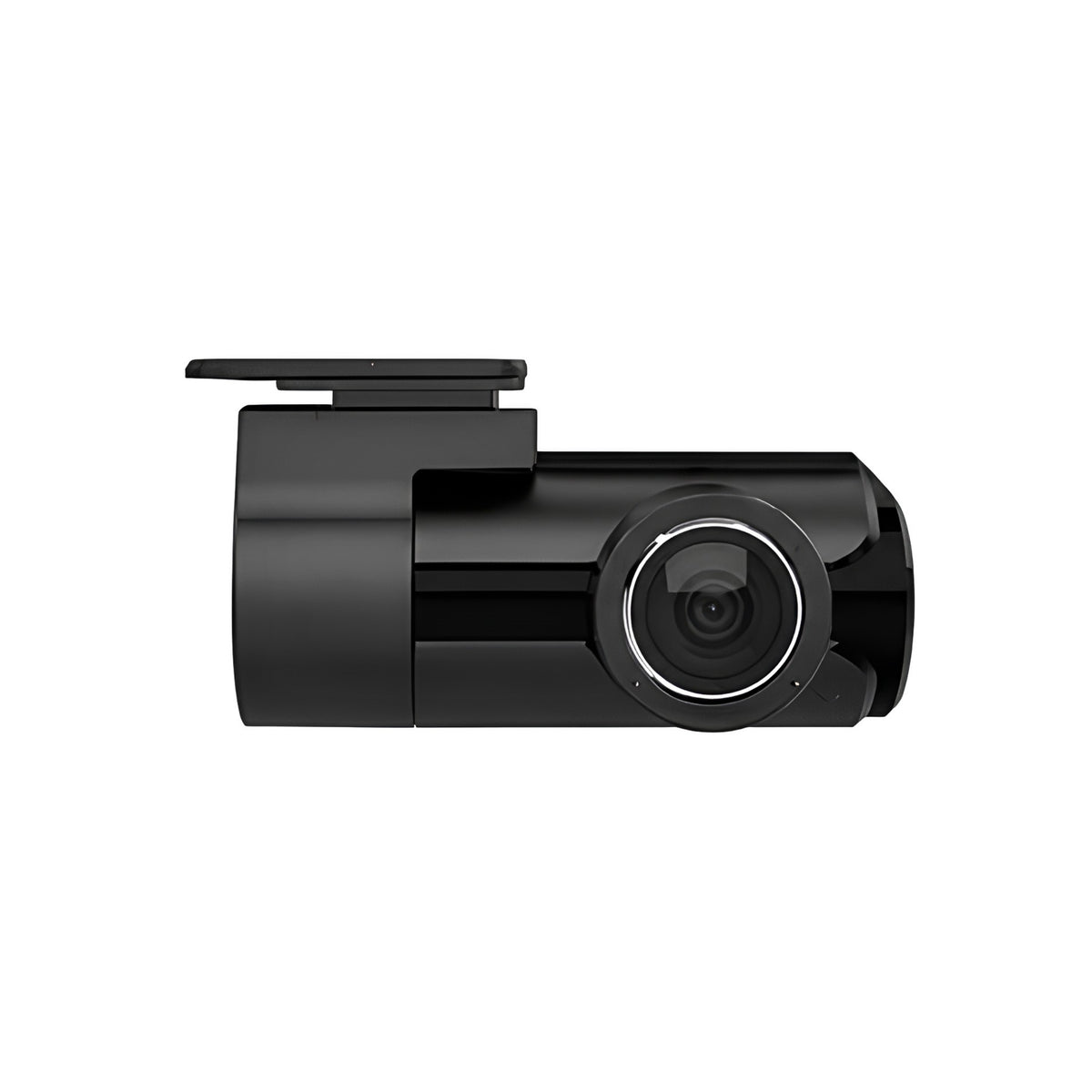

  • 1x AHD 1080P Front Camera
  • 1x AEMB158 Vehicle-Specific Mounting Bracket (rain sensor windscreen vehicles)
  • 1x 8 metre Camera Cable

Technical specs

Specification Detail
SKU AEM2RB58
Brand Aerpro
Display Size 9.66 inch IPS touchscreen
Display Resolution 1920 x 480
Screen Brightness 1000 nit
Brightness Adjustment Automatic
Camera Resolution AHD 1080P (front and rear)
Rear Camera Image Sensor Sony STARVIS 2
Rear Camera IP Rating IP69
DVR Recording Dual channel 1080P, rear at 30FPS, front at 25FPS
MicroSD Support Up to 256GB, Class 10 required (sold separately)
Camera Inputs 2 (front and rear)
Reverse Trigger Yes, automatic camera display with guidelines
Mirror Mode Flip switch to conventional mirror view
On-Screen Display Clock and date
Power Supply 12V to 24V DC
Camera Cable Length 8 metres
Bracket AEMB158, rain sensor windscreen vehicles only
Warranty 5 years

Compatible with

The AEMB158 mounting bracket included in this kit is confirmed for the following vehicles fitted with rain sensor windscreens only. Confirm your specific variant and rain sensor fitment before ordering.

Make Model Variant Years
Ford Ranger PX2, with rain sensor windscreen All years
Ford Ranger PX3, with rain sensor windscreen All years
Ford Ranger RA, with rain sensor windscreen All years
Volkswagen Amarok All variants, with rain sensor windscreen 2022 - 2026

Frequently asked questions

Why does the AEMB158 bracket only suit vehicles with rain sensor windscreens?
Rain sensor windscreens have a different mounting point and attachment area on the inside of the windscreen compared to non-rain sensor variants. The AEMB158 bracket is designed to accommodate this rain sensor housing, ensuring a clean and secure fit. If your Ford Ranger or Volkswagen Amarok does not have a rain sensor windscreen, a different bracket will be required. Contact us to confirm the correct bracket for your specific variant.

Does the AEM2RB58 include both front and rear cameras?
Yes. Both an AHD 1080P front camera and an AHD 1080P rear camera are included in the kit, providing comprehensive front and rear coverage with simultaneous dual-channel DVR recording in a single integrated system.

What Ford Ranger variants are confirmed for the AEMB158 bracket?
The AEMB158 bracket is confirmed for the Ford Ranger PX2, PX3, and RA variants fitted with rain sensor windscreens. Contact us with your specific Ranger build year and variant to confirm correct fitment before ordering.

Is a MicroSD card included?
No. A MicroSD card is required for DVR recording storage and must be purchased separately. The system supports MicroSD cards up to 256GB with a Class 10 rating required for reliable recording performance.

What is the warranty on the AEM2RB58?
The AEM2RB58 is backed by a 5-year warranty covering long-term performance and reliability. Contact us for further details on warranty claims and conditions.
