Aerpro AEM2RB12 9.66" E-Mirror Front and Rear DVR Merc Renault VW

SKU: AEM2RB12
Price
$499.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

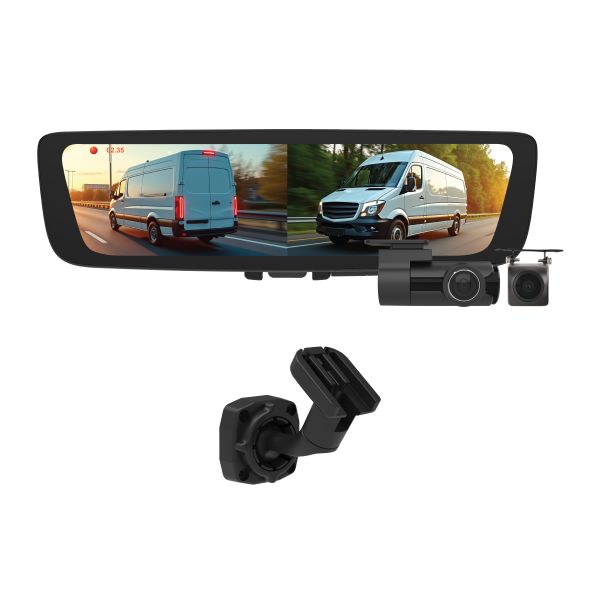

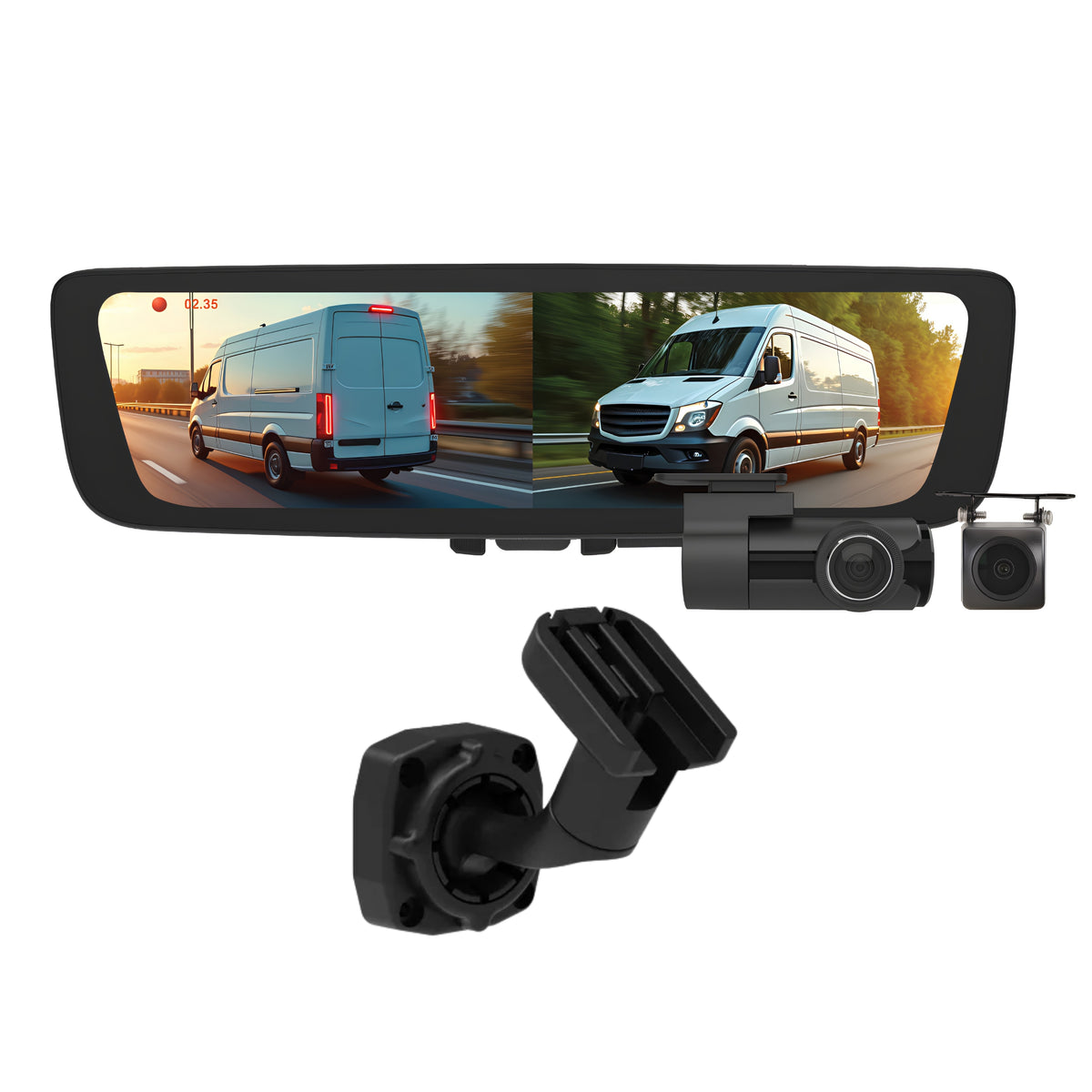

Aerpro AEM2RB12 9.66 Inch Digital E-Mirror with Dual Channel Front and Rear AHD 1080P DVR Camera Kit and AEMB12 Bracket for Mercedes-Benz Sprinter Vito Renault Master Trafic and Volkswagen Crafter

The Aerpro AEM2RB12 is a complete digital e-mirror and dual-camera DVR kit purpose-matched to selected Mercedes-Benz, Renault, and Volkswagen commercial vans. It includes the AEM2R 9.66-inch IPS touchscreen digital mirror, an AHD 1080P rear camera with Sony STARVIS 2 image sensor, an AHD 1080P front camera, the AEMB12 vehicle-specific mounting bracket, and an 8-metre camera cable. The built-in dual channel DVR records front and rear simultaneously in 1080P with impact-triggered event saving, supporting MicroSD cards up to 256GB Class 10 (sold separately). IP69-rated rear camera, 1000 nit display with automatic brightness adjustment, 12V/24V compatible, and 5-year warranty.

Product overview

The AEM2RB12 builds on the AEM1RB12 by adding a second camera input. Where the AEM1RB12 provides rear-only DVR recording, the AEM2RB12 records front and rear simultaneously from two included AHD 1080P cameras, giving comprehensive coverage in a single integrated system. The rear camera uses a Sony STARVIS 2 sensor and records at 30FPS; the front camera records at 25FPS. Both channels record continuously to a single MicroSD card with automatic impact-triggered event saving.

The AEMB12 bracket installs in place of the factory mirror with no cutting or fabrication required. The 9.66-inch IPS touchscreen replaces the factory rearview mirror entirely, displaying a live 1080P rear feed for canopy, camper, and tray-equipped vehicles where the factory mirror provides no useful rear sightline. Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines. A flip switch allows instant reversion to a conventional mirror view at any time.

The 8-metre camera cable provides sufficient reach for standard van installations. Confirm your specific model and year against the compatibility list before purchasing.

Features and benefits

Complete kit with front and rear cameras: AEM2R digital e-mirror, AHD 1080P rear camera, AHD 1080P front camera, AEMB12 vehicle-specific bracket, and 8-metre camera cable in one box.

Dual channel DVR recording, front and rear simultaneously: Rear at 1080P/30FPS and front at 1080P/25FPS. Continuous loop recording with impact-triggered event saving.

True mirror replacement with AEMB12 bracket: Installs in place of the factory rearview mirror with no cutting or fabrication.

9.66-inch IPS touchscreen, 1920x480 resolution: Wide, clear image across the full mirror footprint.

1000 nit display with automatic brightness adjustment: Readable in direct sunlight and low-light conditions.

Sony STARVIS 2 image sensor on the rear camera: Sharp footage in daylight and low light at AHD 1080P.

Constant live rear vision: 1080P camera feed replaces the obstructed factory mirror view for canopy and camper-equipped commercial vans.

Automatic reverse camera activation with parking guidelines: Switches to rear camera view with on-screen guidelines when reverse gear is selected.

Flip to conventional mirror view: Single switch reverts instantly to standard mirror mode.

MicroSD support up to 256GB Class 10: Sold separately. Required for DVR recording.

IP69-rated rear camera: Withstands high-pressure wash-down and harsh outdoor conditions.

Integrated clock and date display: Visible on screen at all times.

12V and 24V compatible: Suits passenger vehicles and commercial van applications.

5-year warranty: Backed by Aerpro's 5-year warranty.

What's in the box

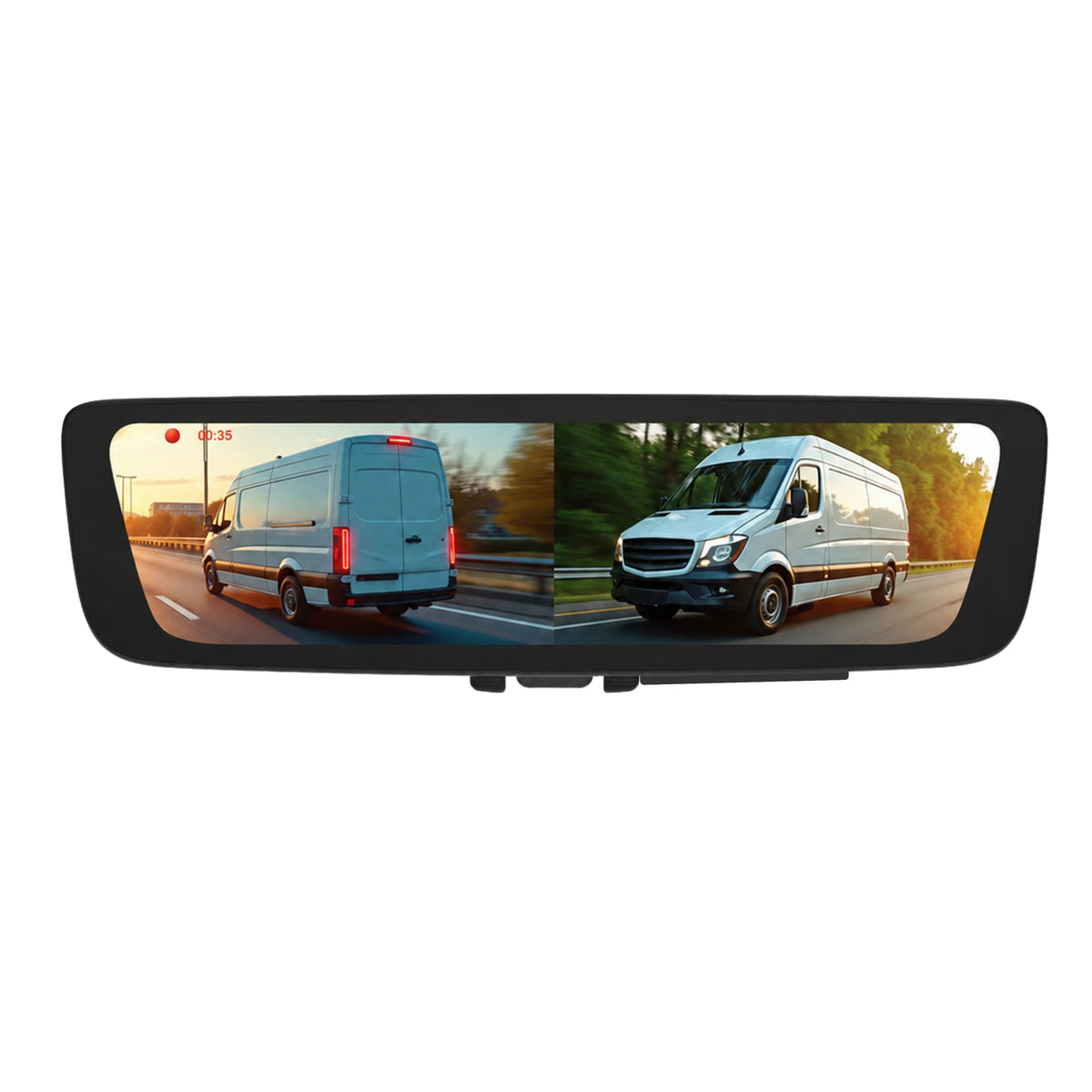

  • 9.66-inch Digital E-Mirror (AEM2R)

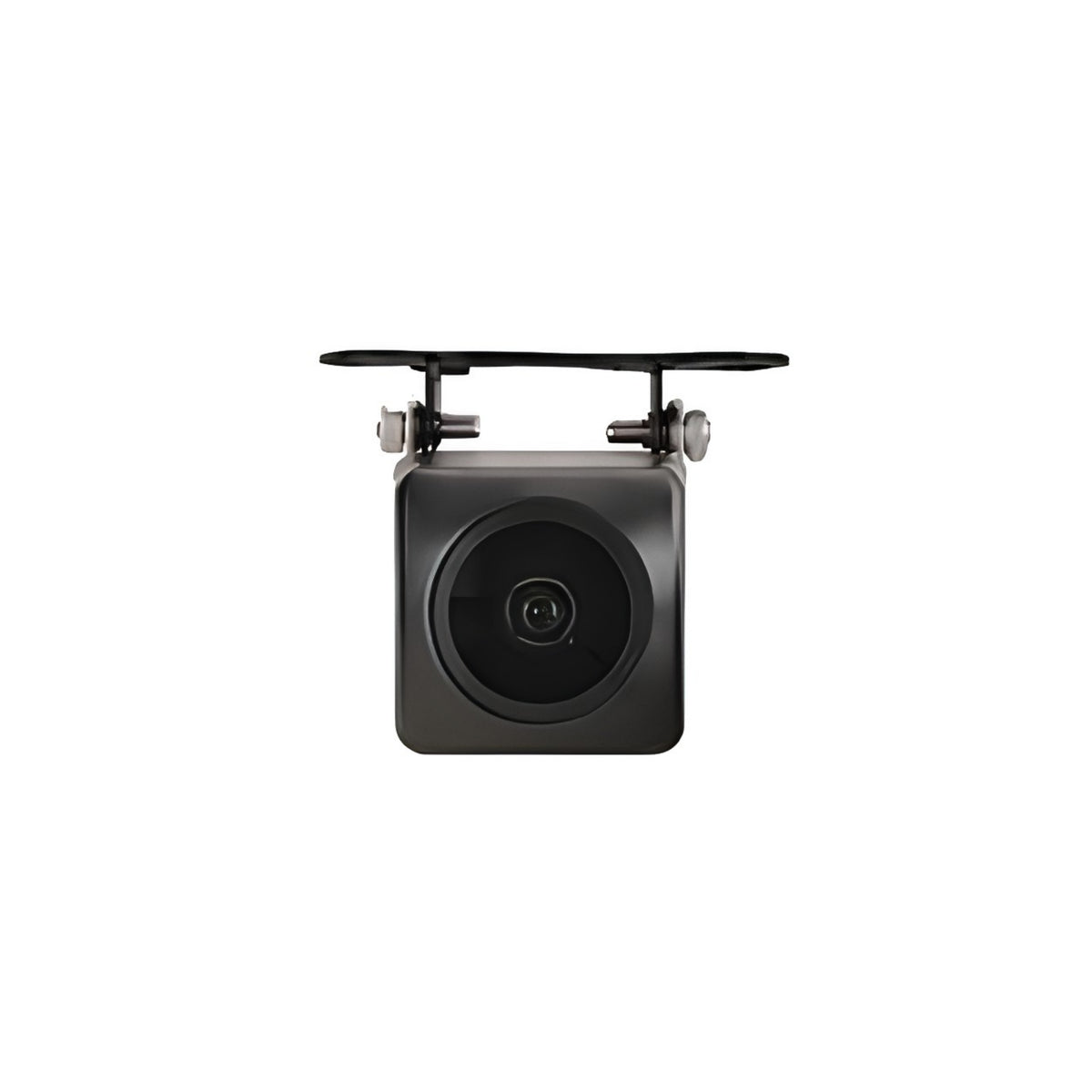

  • AHD 1080P Rear Camera

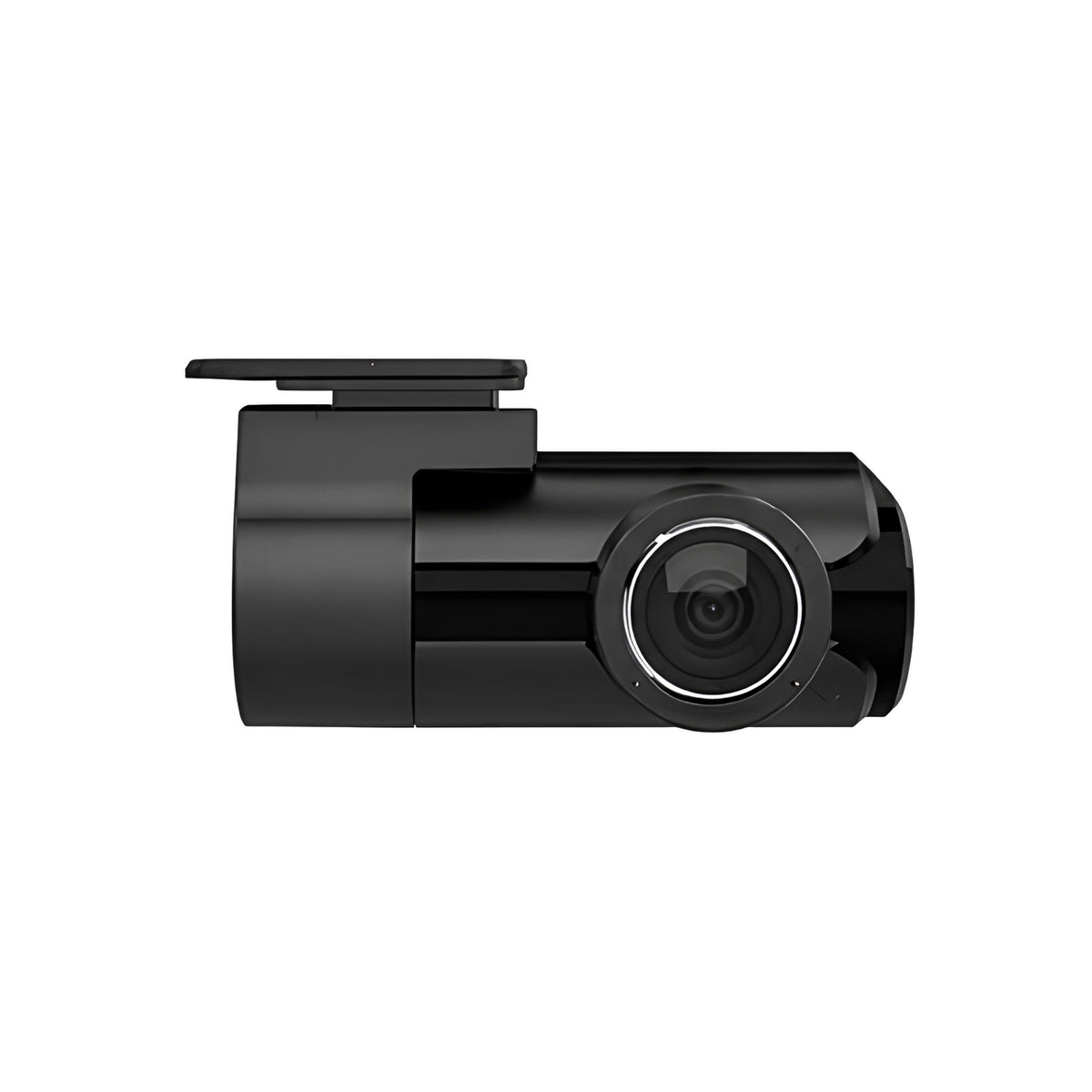

  • AHD 1080P Front Camera

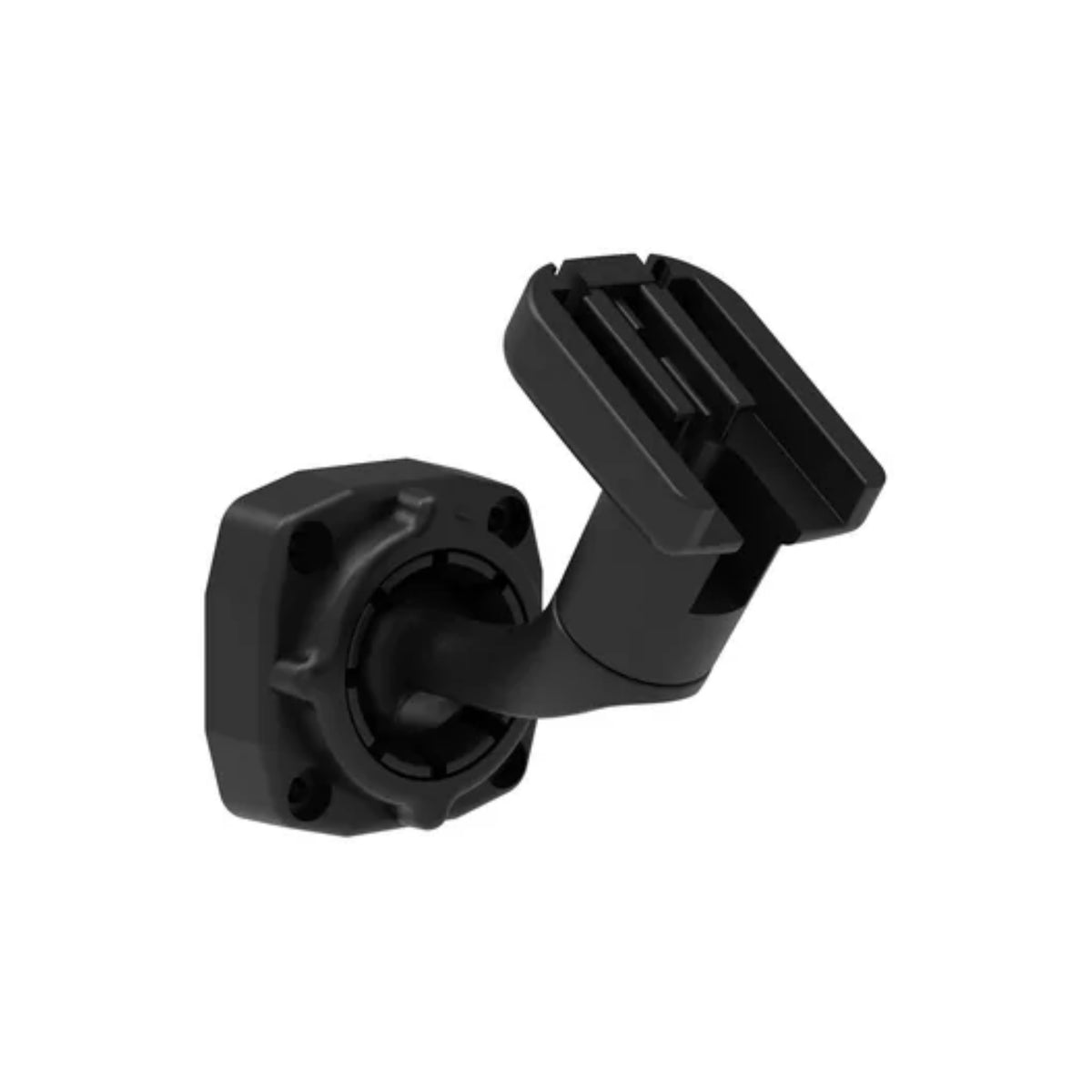

  • AEMB12 Vehicle-Specific Mounting Bracket
  • 8-Metre Camera Cable

Technical specs

Specification Detail
SKU AEM2RB12
Brand Aerpro
Display 9.66-inch IPS touchscreen
Monitor Resolution 1920x480
Camera Resolution AHD 1080P (front and rear)
Image Sensor Sony STARVIS 2 (rear camera)
Camera IP Rating IP69 (rear camera)
Screen Brightness 1000 nit
Brightness Adjustment Automatic
DVR Recording Dual channel 1080P, rear at 30FPS and front at 25FPS
Camera Inputs 2 (front and rear)
MicroSD Support Up to 256GB Class 10 (sold separately)
Impact Event Saving Yes, automatic
Reverse Trigger Yes, auto camera display with guidelines
Mirror Mode Flip switch to conventional mirror view
On-Screen Display Clock and date
Power Supply 12V to 24V DC
Camera Cable Length 8 metres (rear camera to mirror)
Warranty 5 years

Compatible with

Make Model Variant Years
Mercedes-Benz Sprinter W906 2010 to 2018
Mercedes-Benz Vito W639 2003 to 2015
Renault Master X62 Series 2011 to 2019
Renault Trafic Year range not confirmed
Volkswagen Crafter 2E 2006 to 2011
Volkswagen Crafter 2ED1 Series 2011 to 2017

Frequently asked questions

What is the difference between the AEM2RB12 and the AEM1RB12? The AEM1RB12 includes a rear camera only and records a single channel. The AEM2RB12 adds a front camera, recording front and rear simultaneously as dual channels in a single system. Both use the AEMB12 bracket for the same vehicle models.

Does the kit include everything needed for installation? Yes. The AEM2RB12 includes the AEM2R digital mirror, rear camera, front camera, AEMB12 vehicle-specific bracket, and 8-metre camera cable. A Class 10 MicroSD card up to 256GB is required for DVR recording and is sold separately.

What MicroSD card do I need? The system supports MicroSD cards up to 256GB. A Class 10 card is required and is sold separately.

Can I still use it as a conventional mirror? Yes. A flip switch instantly reverts the screen to a conventional mirror view at any time.

Is the front camera the same IP rating as the rear camera? The rear camera is IP69-rated for high-pressure wash-down resistance. The IP rating of the front camera is not specified in the source data. Contact us for further details before purchasing if front camera weatherproofing is a specific requirement.
