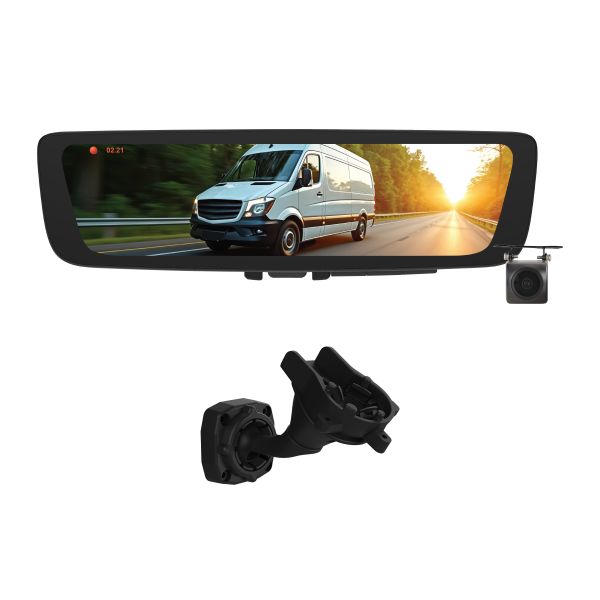

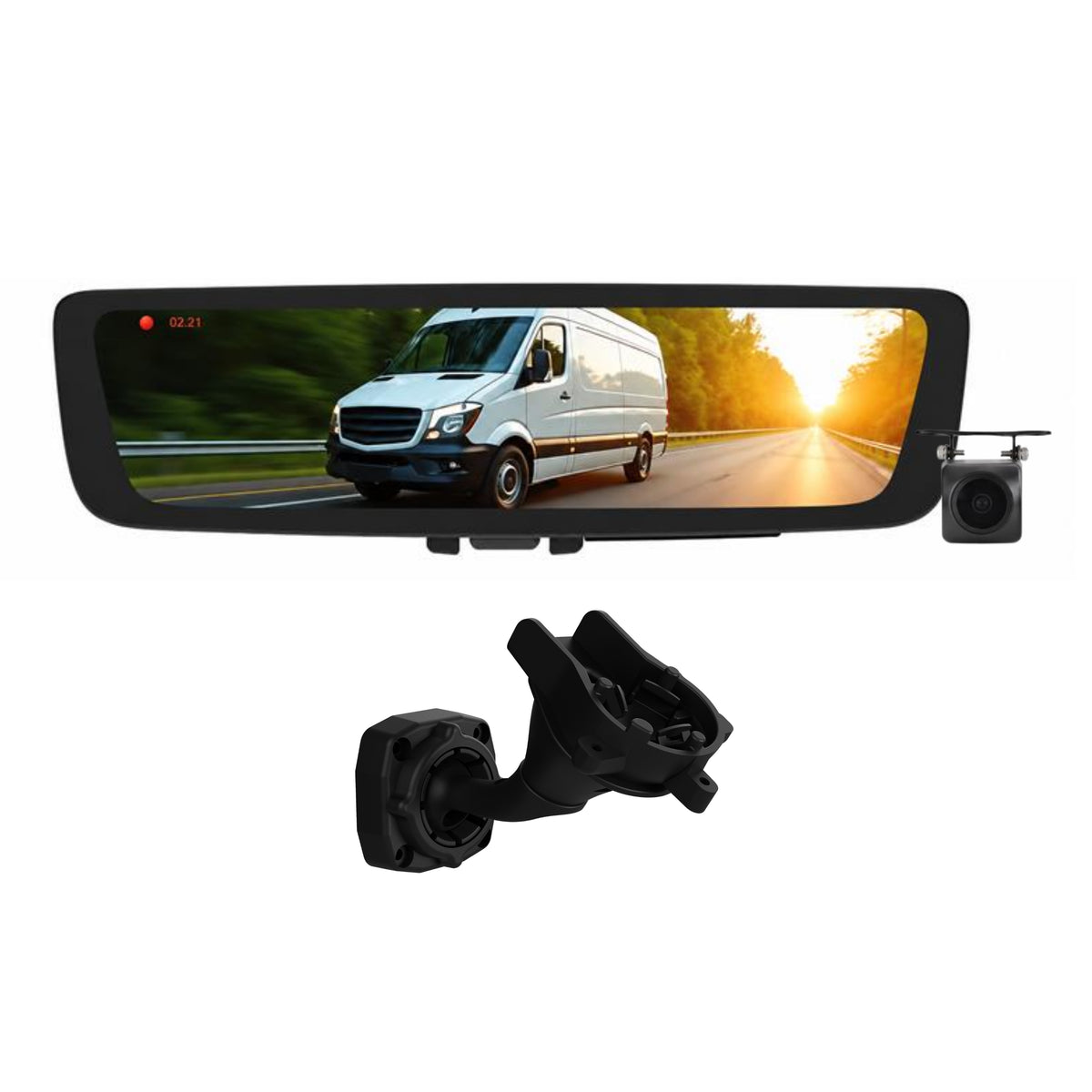

Aerpro AEM1RB53 9.66" Digital E-Mirror DVR Camera Jeep Grand Cherokee

SKU: AEM1RB53
Price
$399.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AEM1RB53 9.66 Inch Digital E-Mirror with AHD 1080P Rear DVR Camera Kit and AEMB53 Bracket for Jeep Grand Cherokee

The Aerpro AEM1RB53 is a complete digital e-mirror and rear DVR camera kit purpose-matched to the Jeep Grand Cherokee. It includes the AEM1R 9.66-inch IPS touchscreen digital mirror, an AHD 1080P rear camera with Sony STARVIS 2 image sensor, the AEMB53 vehicle-specific mounting bracket, and an 8-metre camera cable. Replaces the factory rearview mirror with a live 1920x480 HD camera feed. Built-in DVR records continuously in 1080P at 30FPS with impact-triggered event saving, supporting MicroSD cards up to 256GB Class 10 (sold separately). IP69-rated rear camera, 1000 nit display with automatic brightness adjustment, 12V/24V compatible, and 5-year warranty.

Product overview

Canopies, camper bodies, and touring setups fitted to the Jeep Grand Cherokee can eliminate rearward sightlines through the factory mirror. The AEM1RB53 restores rear vision by replacing the factory mirror entirely with a 9.66-inch IPS touchscreen displaying a live 1080P feed from the included rear camera. The AEMB53 bracket is matched specifically to the Grand Cherokee and installs in place of the factory mirror with no cutting, fabrication, or separate bracket sourcing required.

The Sony STARVIS 2 image sensor delivers sharp footage in daylight and low-light conditions at AHD 1080P. The 1000 nit display remains visible in direct sunlight, with automatic brightness adjustment. Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines. A flip switch allows instant reversion to a conventional mirror view. The integrated clock and date display remains on screen at all times.

The built-in DVR records continuously in 1080P at 30 frames per second with loop recording and automatic impact-triggered event saving. The system supports MicroSD cards up to 256GB Class 10, sold separately.

Features and benefits

Complete kit in one box: AEM1R digital e-mirror, AHD 1080P rear camera, AEMB53 vehicle-specific bracket, and 8-metre camera cable. No separate bracket sourcing required.

True mirror replacement with AEMB53 bracket: Installs in place of the factory rearview mirror with no cutting or fabrication.

9.66-inch IPS touchscreen, 1920x480 resolution: Wide, clear image across the full mirror footprint.

1000 nit display with automatic brightness adjustment: Readable in direct sunlight and low-light conditions.

Sony STARVIS 2 image sensor: Sharp rear camera footage in daylight and low light at AHD 1080P.

Constant live rear vision: 1080P camera feed replaces the obstructed factory mirror view for canopy and camper-equipped Grand Cherokee vehicles.

Automatic reverse camera activation with parking guidelines: Switches to rear camera view with on-screen guidelines when reverse gear is selected.

Flip to conventional mirror view: Single switch reverts instantly to standard mirror mode.

Built-in DVR, 1080P at 30FPS with loop recording: Continuous recording with impact-triggered event saving. Supports up to 256GB Class 10 MicroSD (sold separately).

IP69-rated rear camera: Withstands high-pressure wash-down and harsh outdoor conditions.

Integrated clock and date display: Visible on screen at all times.

12V and 24V compatible: Suits passenger vehicle and 4WD applications.

5-year warranty: Backed by Aerpro's 5-year warranty.

What's in the box

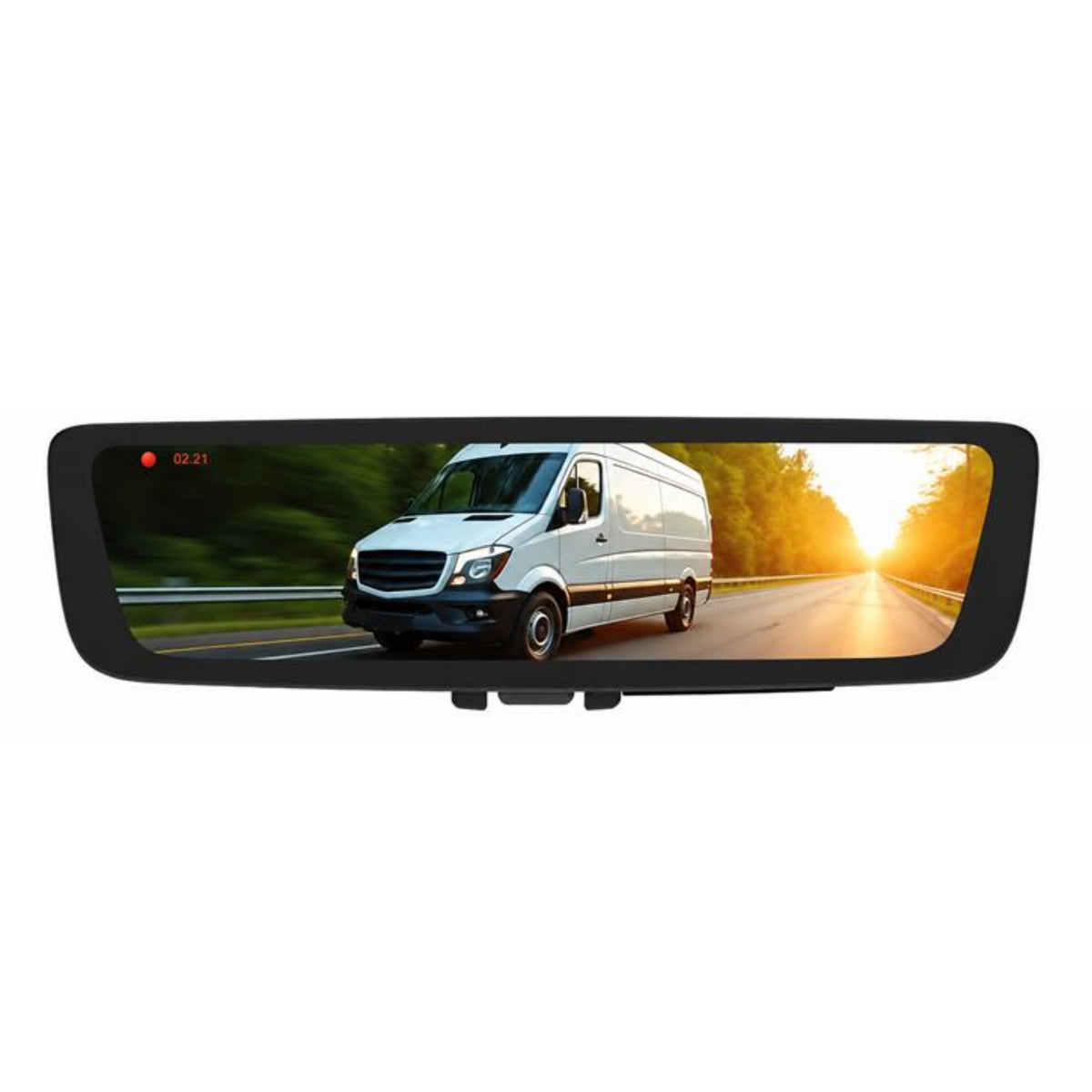

  • 9.66-inch Digital E-Mirror (AEM1R)

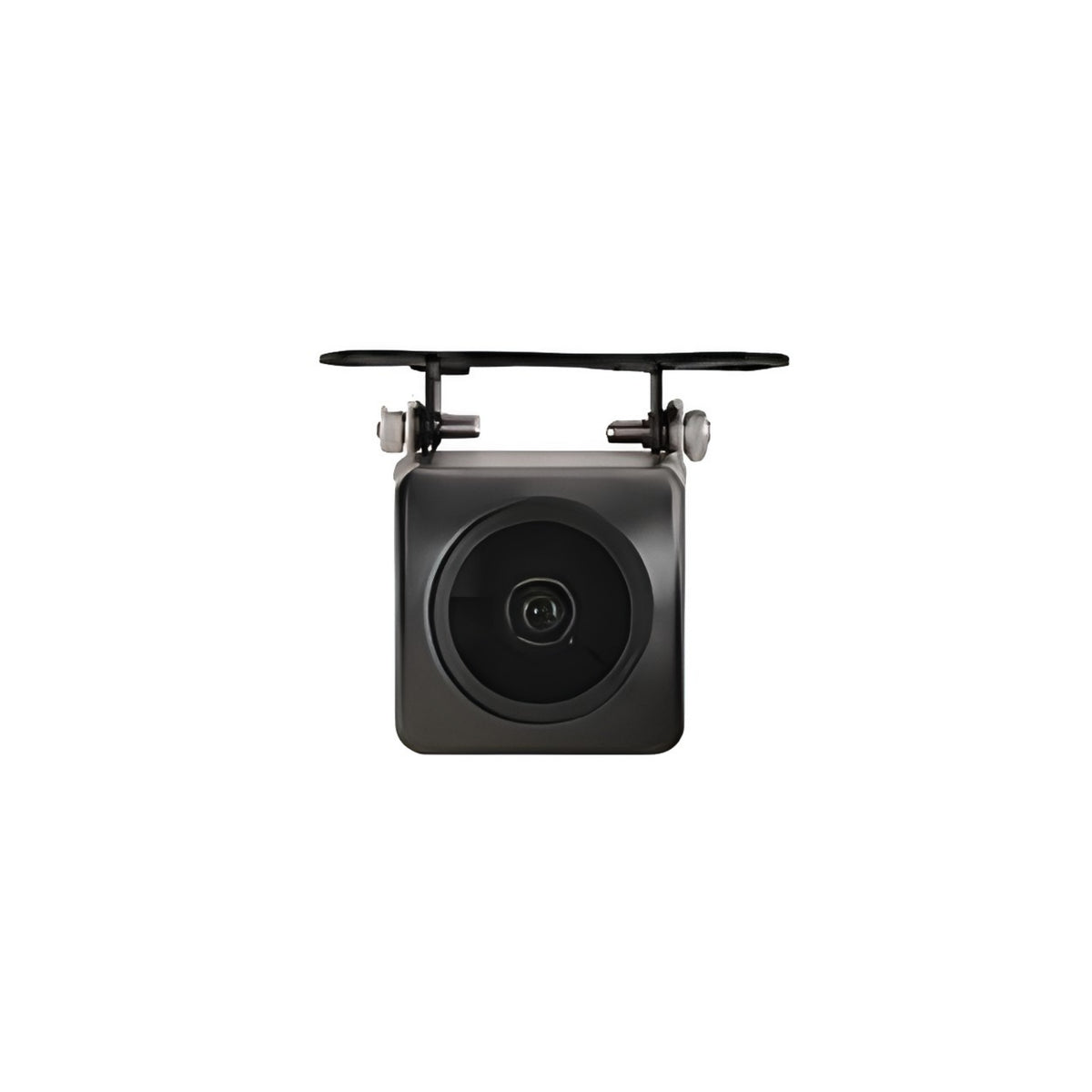

  • AHD 1080P Rear Camera

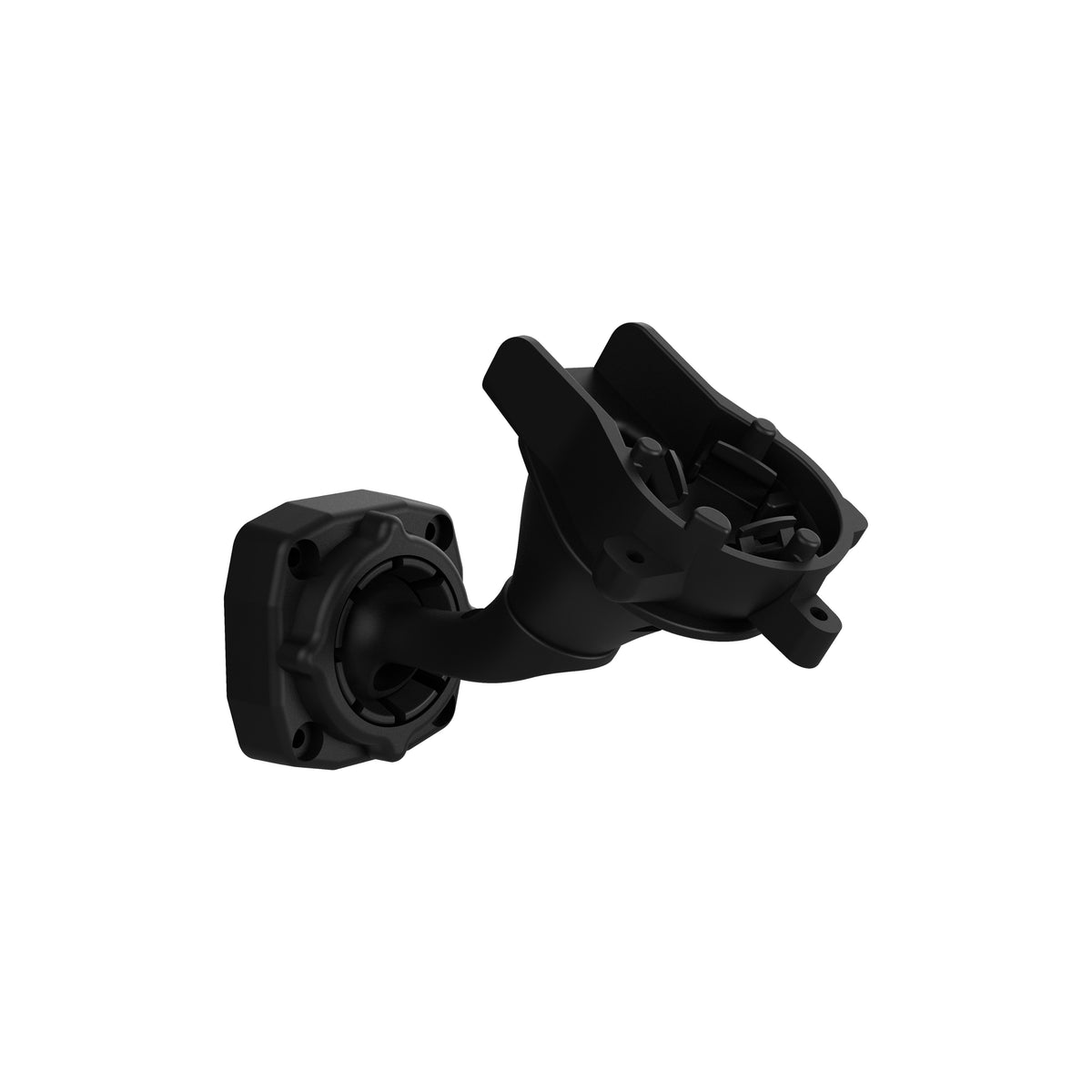

  • AEMB53 Vehicle-Specific Mounting Bracket
  • 8-Metre Camera Cable

Technical specs

Specification Detail
SKU AEM1RB53
Brand Aerpro
Display 9.66-inch IPS touchscreen
Monitor Resolution 1920x480
Camera Resolution AHD 1080P
Image Sensor Sony STARVIS 2
Camera IP Rating IP69
Screen Brightness 1000 nit
Brightness Adjustment Automatic
DVR Recording 1080P at 30FPS, loop recording
MicroSD Support Up to 256GB Class 10 (sold separately)
Impact Event Saving Yes, automatic
Reverse Trigger Yes, auto camera display with guidelines
Mirror Mode Flip switch to conventional mirror view
On-Screen Display Clock and date
Power Supply 12V to 24V DC
Camera Cable Length 8 metres
Warranty 5 years

Compatible with

Make Model
Jeep Grand Cherokee

Frequently asked questions

Why does the AEM1RB53 suit the Jeep Grand Cherokee? Canopies, camper bodies, and touring setups can eliminate rear sightlines through the factory mirror on the Grand Cherokee. The AEM1RB53 replaces the factory mirror with a live 1080P camera feed from a rear-mounted IP69-rated camera, restoring clear rear vision regardless of what is fitted to the vehicle.

Does the kit include the mounting bracket and camera cable? Yes. The AEM1RB53 includes the AEM1R digital mirror, the AHD 1080P rear camera, the AEMB53 vehicle-specific bracket, and an 8-metre camera cable. Everything required for installation is in the box.

What MicroSD card do I need for DVR recording? The system supports MicroSD cards up to 256GB. A Class 10 card is required and is sold separately.

Can I still use it as a conventional mirror? Yes. A flip switch instantly reverts the screen to a conventional mirror view at any time.

What does IP69 mean for the rear camera? IP69 is the highest water ingress protection rating, indicating the camera withstands high-pressure, high-temperature wash-down from any direction. This suits vehicles exposed to regular pressure washing and harsh outdoor conditions.
