Aerpro AATO19C Infolink Plus SWC Interface Toyota 360 Camera

Aerpro AATO19C Infolink Plus 2-Way UART Steering Wheel Control Interface for Toyota with 360-Degree Camera and Amplifier Retention

An Infolink Plus 2-way UART steering wheel control interface harness from Aerpro, the AATO19C suits select Toyota vehicles and retains factory steering wheel controls, climate control and system menu touchscreen integration, factory amplifier (if equipped), factory reverse camera including 360-degree (if originally fitted), factory AUX input (if originally fitted), factory USB input (if originally fitted), and factory antenna, with reverse trigger, park brake, speed pulse, and illumination outputs, vehicle-specific plug for no-cut installation, and Type H patch lead. Recommended for installation with the Aerpro APP8 Secondary ISO Harness (sold separately).

Product Overview

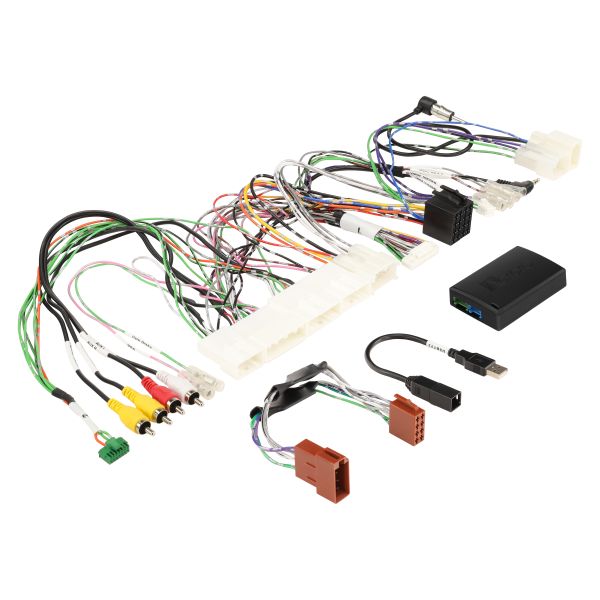

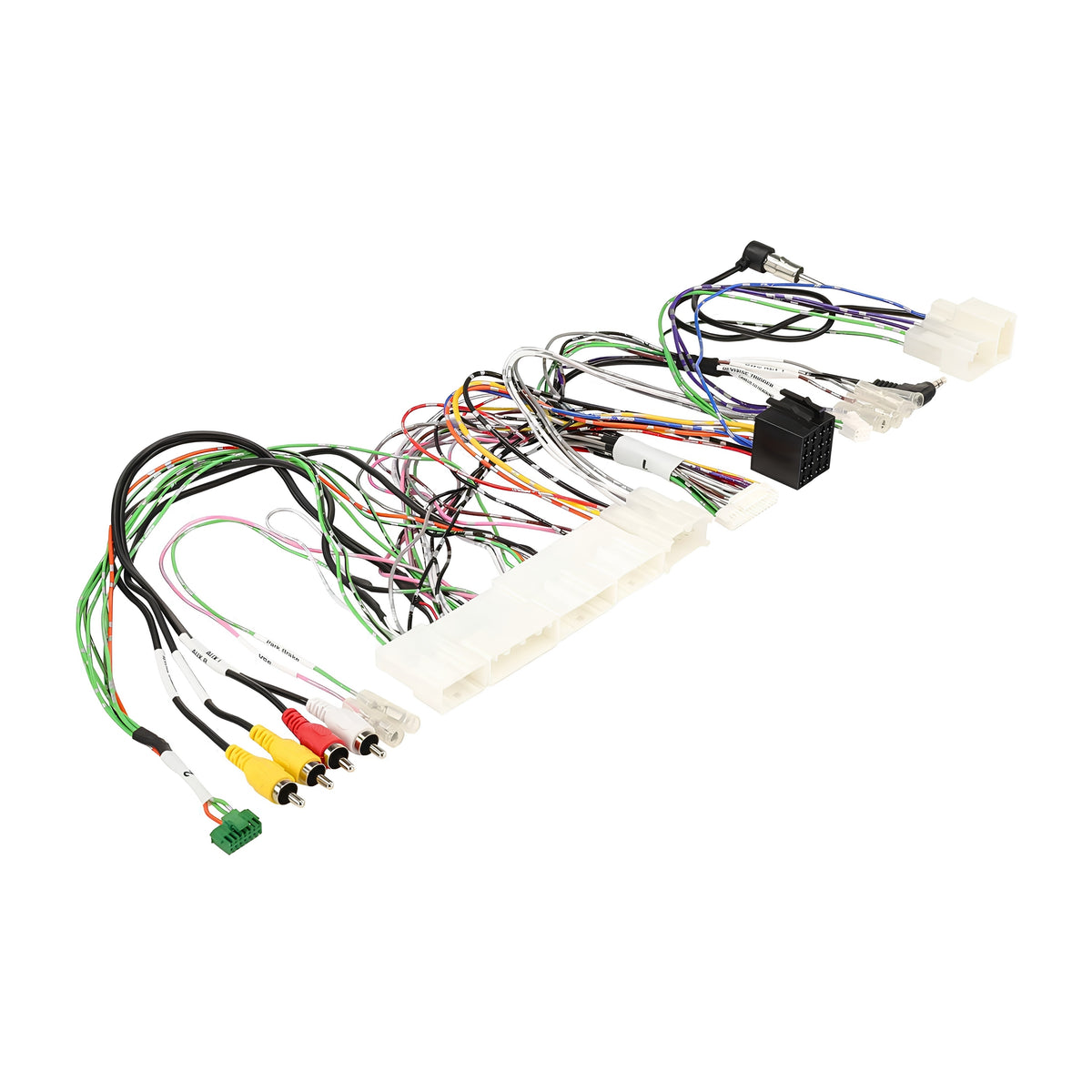

The Aerpro AATO19C is a vehicle-specific Infolink Plus 2-way UART steering wheel control interface designed for select Toyota vehicles, enabling installation of an aftermarket head unit while retaining factory steering wheel controls and key OEM vehicle functions including climate control, parking sensors, and gauges. The vehicle-specific plug connects directly into the existing factory wiring without cutting the original harness. The kit includes an antenna adaptor, reverse camera retention adaptor, and USB, AUX, and amplifier retention leads.

As a 2-way UART interface, the AATO19C allows climate control and system menus to be controlled from both the aftermarket head unit's touchscreen and the factory steering wheel controls simultaneously. This 2-way UART functionality is only available on select aftermarket head units fitted with a UART input, and integration and compatibility varies between vehicle and head unit models.

The AATO19C retains the factory amplifier (if equipped), factory reverse camera including 360-degree view (if originally fitted), factory AUX input, factory USB input, and factory antenna. The 360-degree camera view types can be adjusted via the steering wheel control buttons. Outputs include reverse trigger (purple), park brake (green), speed pulse (pink), and illumination. Note: no amplifier remote output is provided on the AATO19C. Installation is further simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness, sold separately.

Note: steering wheel control interfaces vary between vehicle models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. Factory integration and compatibility varies between vehicle and head unit models. Some compatible vehicles are head unit dependent for full feature retention.

Features & Benefits

2-Way UART Interface, Climate Control and System Menus via Touchscreen: Allows climate control and system menus to be controlled from both the aftermarket head unit touchscreen and the factory steering wheel controls simultaneously. Available on select aftermarket head units with UART input only.

Retains Factory Amplifier, Where Equipped: The factory amplifier is retained where fitted, preserving the factory speaker system performance with the new aftermarket head unit.

Retains Factory Reverse Camera Including 360-Degree, RCA Input Required: Factory reverse camera output is retained including 360-degree camera systems where originally fitted. The aftermarket head unit must have an RCA reverse camera input. The 360-degree view type can be adjusted via the steering wheel control buttons.

Retains Factory Steering Wheel Controls, No Cutting Required: The vehicle-specific plug connects directly into the factory wiring without cutting, retaining factory steering wheel audio and function controls when paired with a compatible aftermarket head unit.

Supports Key OEM Vehicle Functions: Infolink Plus integration supports climate control, parking sensors, gauges, and other OEM vehicle functions on compatible vehicle and head unit combinations. Integration and compatibility varies between models.

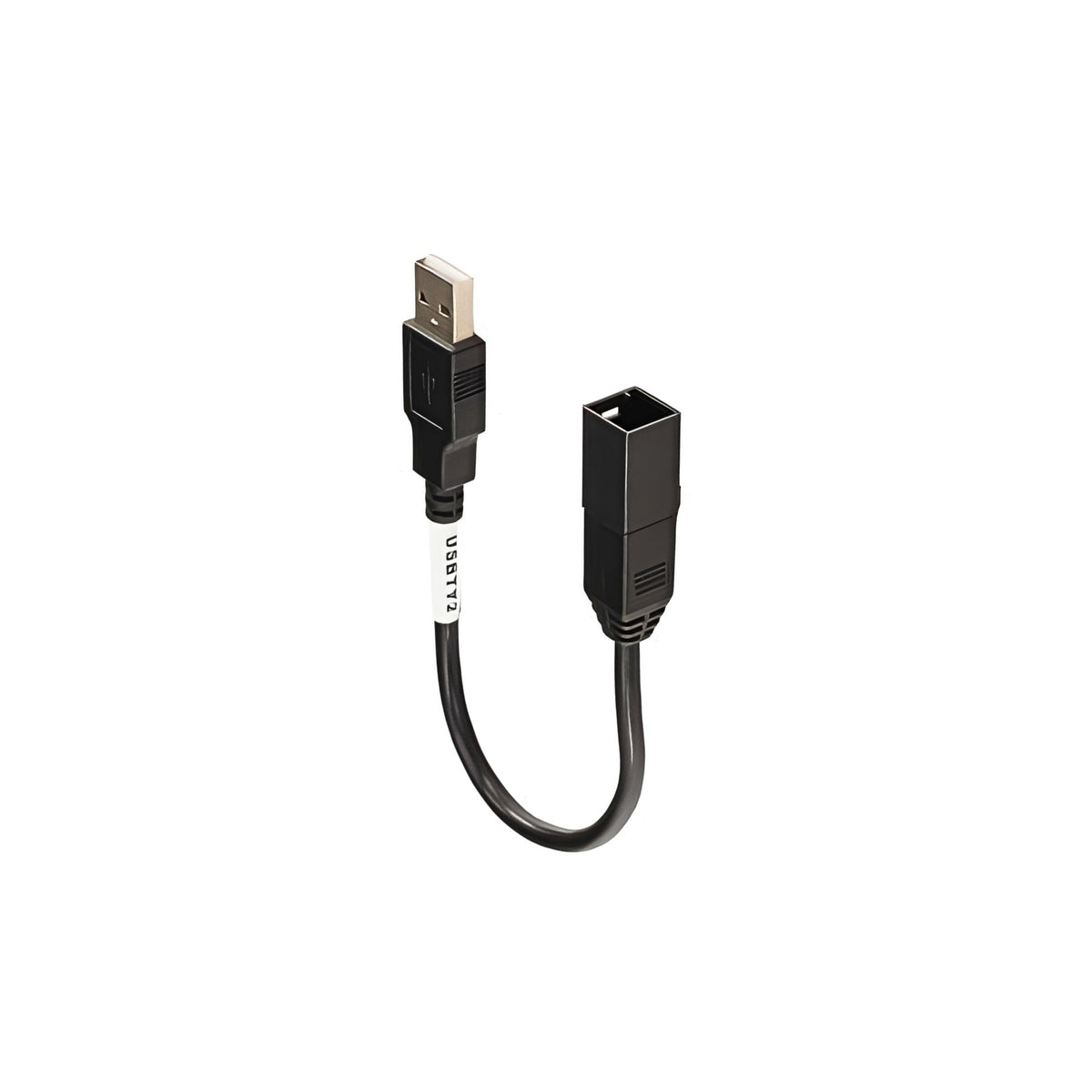

Retains Factory AUX and USB Inputs: Factory AUX input (RCA AUX required on aftermarket head unit) and factory USB input (rear USB required on aftermarket head unit) are retained where originally fitted.

Includes Antenna Adaptor: Converts the factory Toyota antenna plug to a universal DIN plug for connection to the aftermarket head unit without additional adaptors.

Reverse Trigger, Park Brake, Speed Pulse, and Illumination Outputs: Comprehensive output suite for aftermarket head unit integration. Note: amplifier remote output is not provided on the AATO19C.

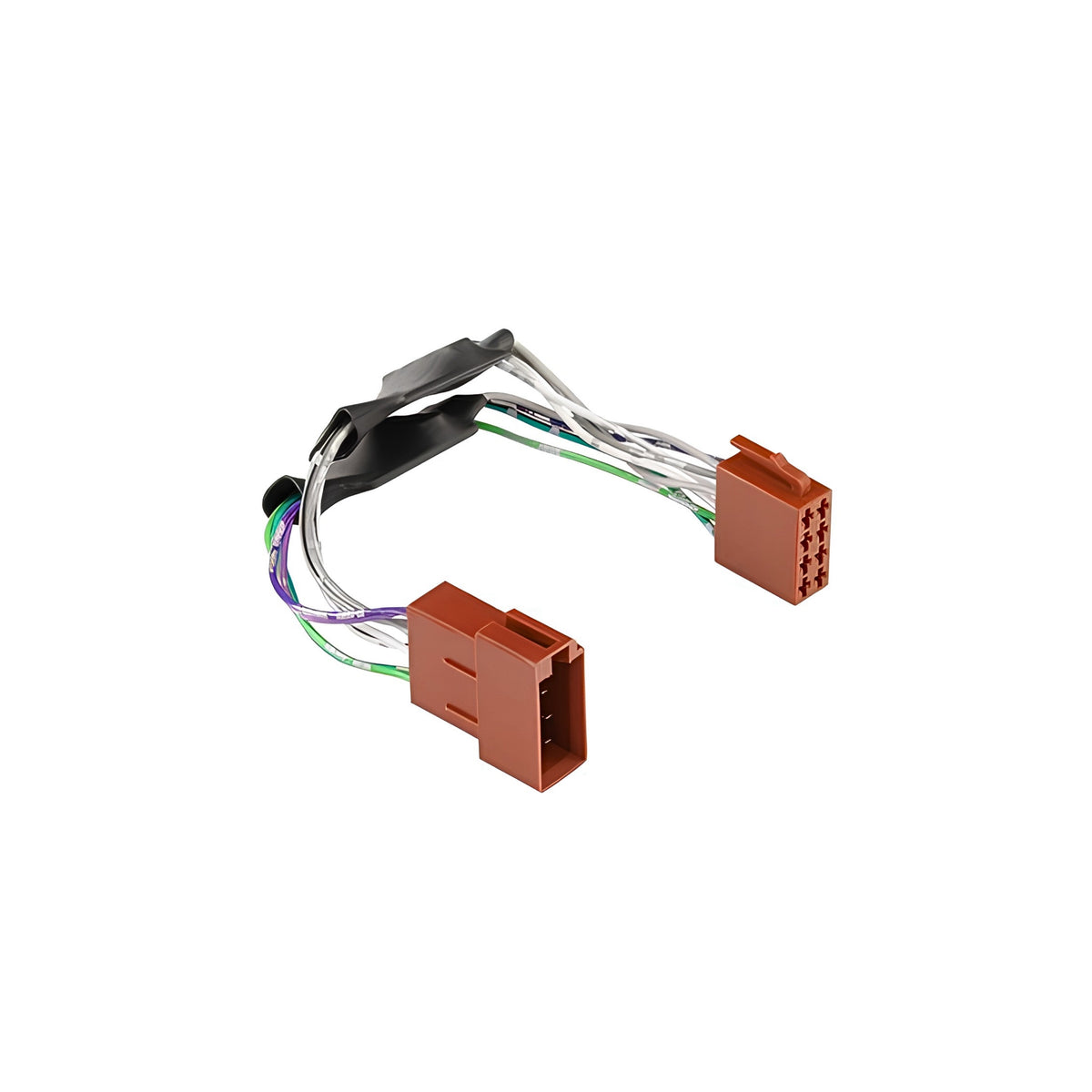

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Technical Specs

Compatible With

The AATO19C suits select Toyota vehicles including the Toyota Prado 2014 to 2017 150 Series (head unit dependent). Steering wheel control interfaces vary between models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. 2-way UART climate control and system menu integration requires a compatible aftermarket head unit with UART input. Factory integration and compatibility varies between vehicle and head unit models. Factory reverse camera retention requires an RCA reverse camera input on the aftermarket head unit. Factory AUX retention requires an RCA AUX input. Factory USB retention requires a rear USB input on the aftermarket head unit. The Aerpro APP8 Secondary ISO Harness is recommended and sold separately.

Compatible Vehicle Table

FAQ

What is the Aerpro AATO19C?

As a 2-way UART interface, the AATO19C allows climate control and system menus to be controlled from both the aftermarket head unit's touchscreen and the factory steering wheel controls simultaneously.

Does the AATO19C suit all Toyota models?

Steering wheel control interfaces vary between vehicle models. The AATO19C is confirmed for the Toyota Prado 2014 to 2017 150 Series (head unit dependent). Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle and model year before purchase.

What is the difference between the AATO19C and the AATO20C?

Both are Infolink Plus 2-way UART SWC interfaces for Toyota with identical retention capabilities for reverse camera including 360-degree, amplifier, AUX, USB, and antenna. The key difference is that the AATO20C is specifically designed for Toyota JBL amplified systems and provides an amplifier remote output, while the AATO19C retains the factory amplifier where fitted but does not provide an amplifier remote output. Confirm which interface suits your specific Toyota model using the Aerpro Vehicle Selector before purchase.

Does the AATO19C retain the factory 360-degree camera?

Yes, where originally fitted. The factory 360-degree camera is retained and the view type can be adjusted using the steering wheel control buttons. The aftermarket head unit must have an RCA reverse camera input.

What is the 2-way UART function on the AATO19C?

The 2-way UART interface allows climate control and system menus to be controlled from both the aftermarket head unit's touchscreen and the factory steering wheel controls simultaneously. This is only available on select aftermarket head units with a UART input, and integration and compatibility varies between vehicle and head unit models.

Does the AATO19C require cutting the factory wiring harness?

No. The vehicle-specific plug connects directly into the existing factory wiring without cutting or permanently modifying the original harness.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
