Aerpro AAHY10C Infolink Plus SWC Interface Hyundai and Kia Type H
Click to open expanded view
AERPRO logo

Aerpro AAHY10C Infolink Plus SWC Interface Hyundai and Kia Type H

SKU: AAHY10C
Price
$219.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

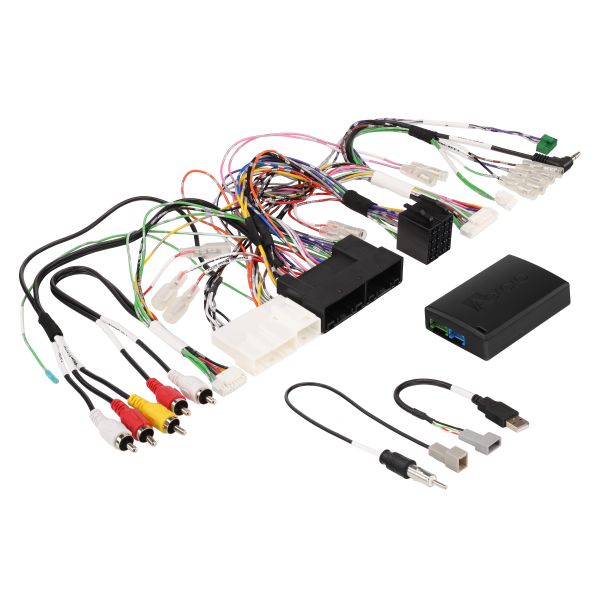

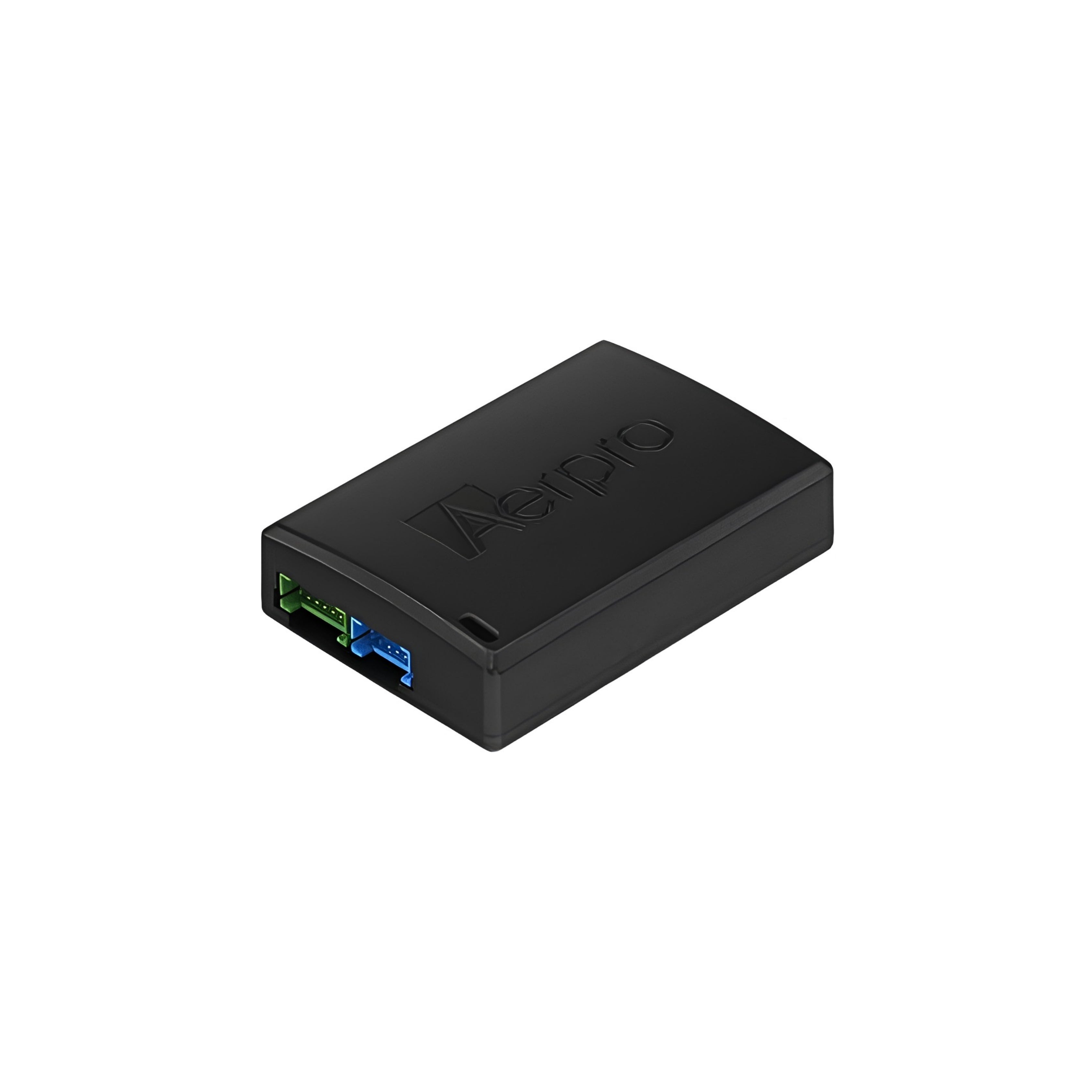

Aerpro AAHY10C Infolink Plus Steering Wheel Control Interface for Hyundai and Kia

An Infolink Plus 2-way UART SWC interface from Aerpro for compatible Hyundai and Kia vehicles, the AAHY10C retains factory steering wheel controls, SPDIF amplifier, factory camera, USB input, AUX input, and antenna, provides reverse trigger, park brake, speed pulse, illumination, and amp remote outputs, and enables climate control and system menus to be controlled via the aftermarket head unit touchscreen or factory steering wheel controls on compatible head units. Vehicle-specific plug with no cutting of factory wiring required. Type H patch lead compatibility.

Product Overview

The Aerpro AAHY10C is an Infolink Plus SWC interface engineered for compatible Hyundai and Kia vehicles, providing a comprehensive integration solution that goes beyond standard SWC retention. As a 2-way UART interface, the AAHY10C allows climate control and system menus to be controlled directly via the aftermarket head unit's touchscreen or the factory steering wheel controls - a function available only on select aftermarket head units with a UART input. Key OEM vehicle functions including climate control, parking sensors, gauges, and more are supported where integration is available (compatibility varies between vehicle and head unit models).

The AAHY10C retains the factory SPDIF amplifier (if equipped, aftermarket head unit requires rear RCA preouts), factory reverse camera (aftermarket head unit requires RCA camera input), USB input (aftermarket head unit requires rear USB input), AUX input (aftermarket head unit requires rear RCA AUX input), and factory antenna via the included antenna adaptor. Output feeds include reverse trigger (purple), park brake (green), speed pulse (pink), illumination, and amp remote. The vehicle-specific plug connects directly into the factory wiring without cutting or modifying the original harness. A compatible type H SWC patch lead is required separately. A compatible Aerpro APP8 Secondary ISO Harness is recommended separately.

Features & Benefits

Infolink Plus 2-Way UART Interface - Climate Control and System Menu Integration: The AAHY10C operates as a 2-way UART interface, enabling climate control and system menus to be controlled via the aftermarket head unit touchscreen or the factory steering wheel controls. This level of integration is available only on select aftermarket head units with a UART input and varies between vehicle and head unit models.

Supports Key OEM Vehicle Functions: In addition to steering wheel controls, the AAHY10C supports key OEM vehicle functions including climate control, parking sensors, gauges, and more where vehicle and head unit compatibility allows.

Retains Factory Steering Wheel Controls: Enables full retention of factory steering wheel audio and control functions when upgrading to a compatible aftermarket head unit.

Factory SPDIF Amplifier Retention (If Equipped): Retains the factory SPDIF amplified audio system in compatible Hyundai and Kia vehicles. The aftermarket head unit must have rear preout (RCA) outputs for amplifier retention.

Factory Reverse Camera Retention: Retains the factory reverse camera in compatible vehicles when connected to a compatible aftermarket head unit with an RCA reverse camera input.

Factory USB and AUX Input Retention: Retains factory USB and AUX inputs where originally fitted. The aftermarket head unit must have rear USB and rear RCA AUX inputs for retention.

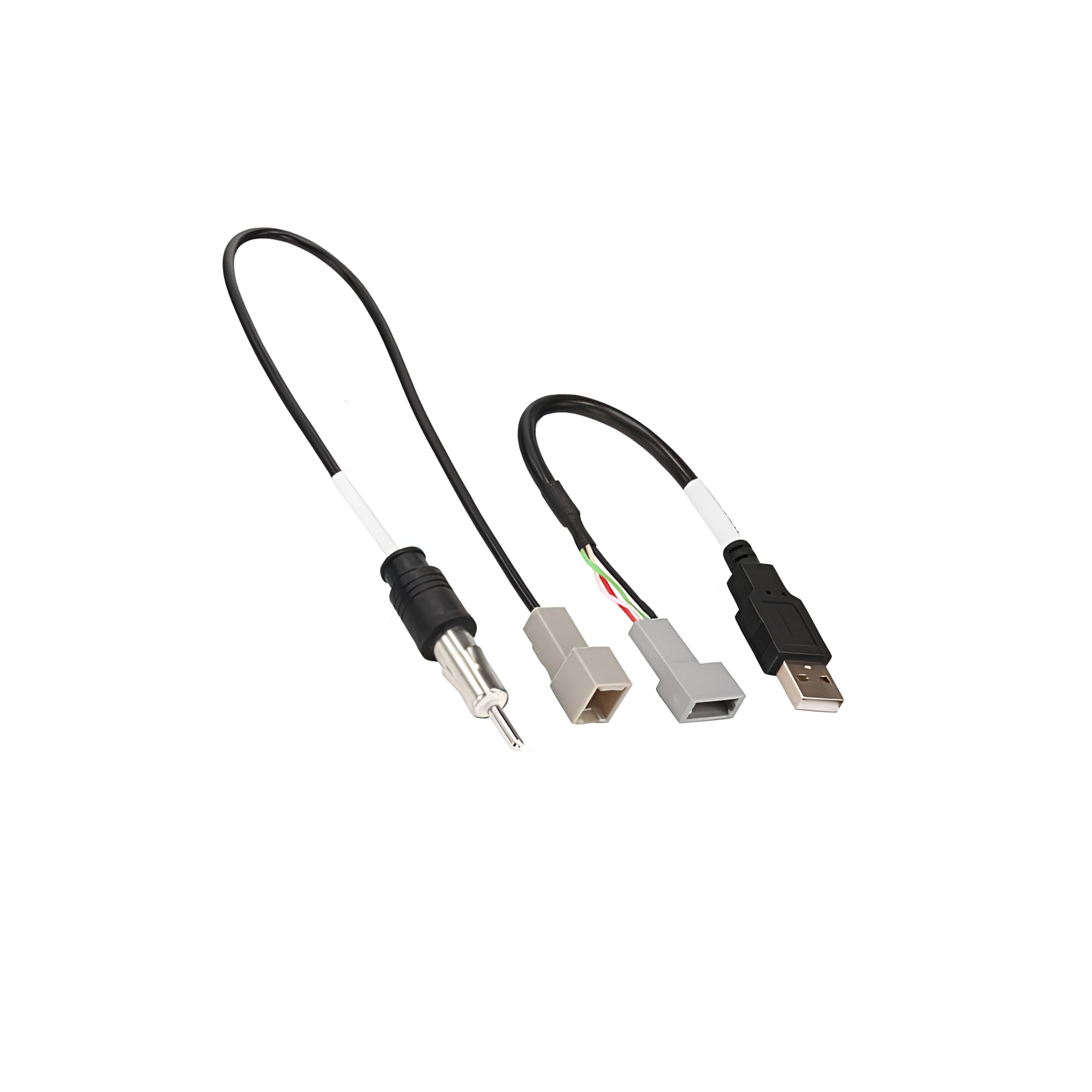

Factory Antenna Retention: The included antenna adaptor converts the factory Hyundai/Kia antenna connection to a standard DIN plug for connection to the aftermarket head unit.

Reverse Trigger, Park Brake, Speed Pulse, Illumination, and Amp Remote Outputs: Comprehensive output feeds for reverse trigger (purple), park brake (green), speed pulse (pink), illumination, and amp remote ensure full compatibility with the wiring requirements of aftermarket head units.

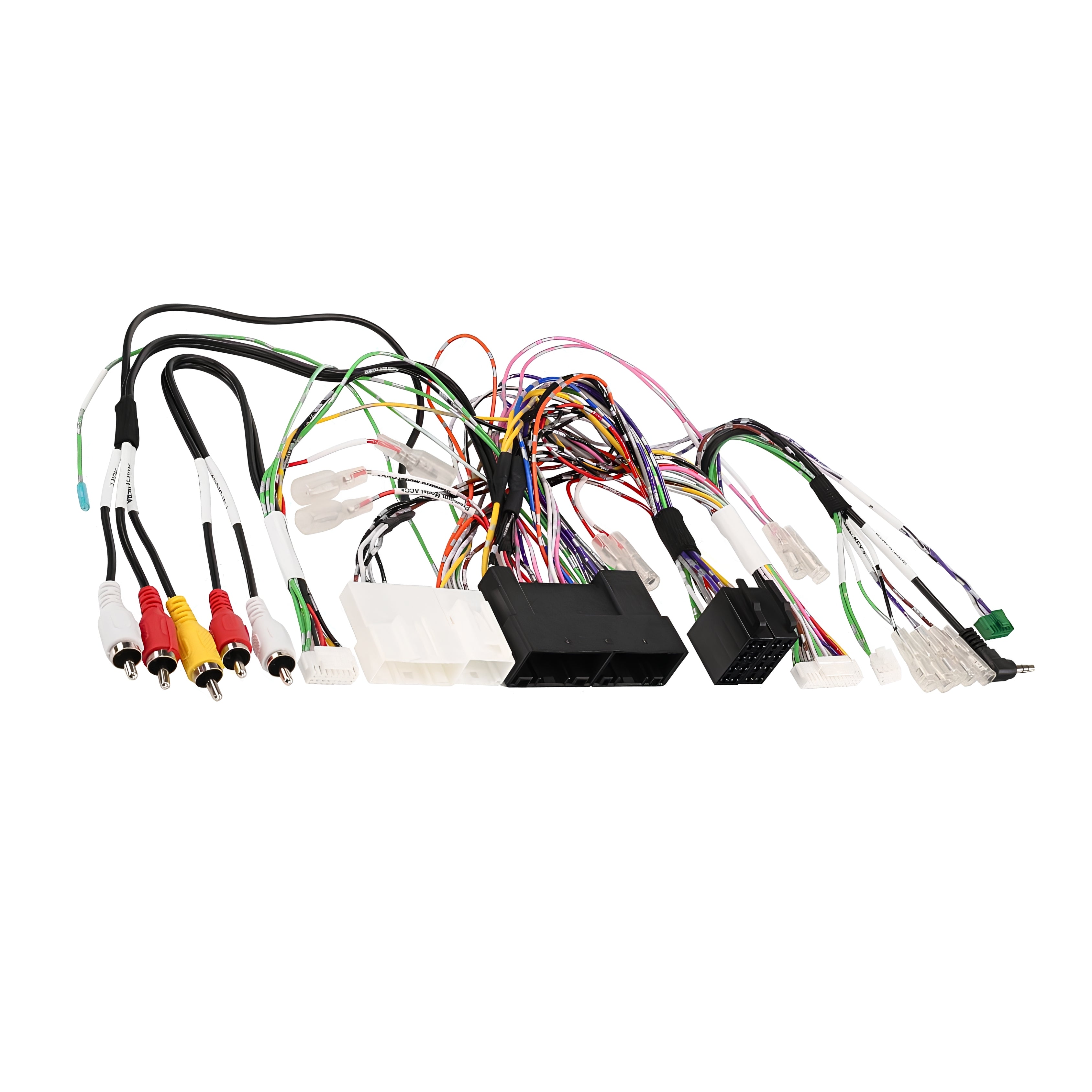

Vehicle-Specific Plug - No Cutting of Factory Wiring: The harness plugs directly into the factory Hyundai/Kia wiring connector without cutting, splicing, or modifying the original harness.

Type H Patch Lead Compatibility: The AAHY10C uses type H patch lead compatibility. A compatible type H SWC patch lead is required separately.

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Technical Specs

Specification Detail
SKU AAHY10C
Brand Aerpro
Category SWC Harness Type H
Compatible Brands Hyundai and Kia
Interface Type Infolink Plus (2-Way UART)
Patch Lead Type H
Reverse Trigger Output Yes (Purple Wire)
Park Brake Output Yes (Green Wire)
Speed Pulse Output Yes (Pink Wire)
Illumination Output Yes
Amp Remote Output Yes
Telephone Mute No
OEM Antenna Retention Yes (Adaptor Included)
OEM SPDIF Amplifier Retention Yes (If Equipped; Aftermarket HU Requires Rear RCA Preouts)
OEM Reverse Camera Retention Yes (If Equipped; Aftermarket HU Requires RCA Camera Input)
OEM AUX Input Retention Yes (If Equipped; Aftermarket HU Requires Rear RCA AUX Input)
OEM USB Input Retention Yes (If Equipped; Aftermarket HU Requires Rear USB Input)
Vehicle Menus Yes (Compatibility Varies)
Climate Control Integration Yes (UART Head Unit Required; Compatibility Varies)
SWC Patch Lead Required Yes (Type H, Sold Separately)
Recommended Secondary Harness Aerpro APP8 (Sold Separately)
Barcode 9317114955845

Compatible With

Compatible with select Hyundai and Kia vehicles. SWC interfaces vary between models. Use the Aerpro Vehicle Selector at aerpro.com to confirm compatibility with your specific vehicle before purchase. Factory integration and compatibility varies between vehicle and head unit models. 2-way UART climate control and menu integration requires a compatible aftermarket head unit with a UART input. The aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from OEM functions.

Frequently Asked Questions

What is the Infolink Plus interface on the AAHY10C?

Infolink Plus is Aerpro's 2-way UART integration technology that allows climate control and system menus to be controlled directly via the aftermarket head unit's touchscreen or the factory steering wheel controls, in addition to standard SWC audio control retention. This level of integration is only available on select aftermarket head units with a UART input and varies between vehicle and head unit models.

Does the AAHY10C retain the factory SPDIF amplifier?

Yes, where equipped. The aftermarket head unit must have rear RCA preout outputs for the factory SPDIF amplifier to be retained.

Does the AAHY10C require a SWC patch lead?

Yes. A compatible type H SWC patch lead is required separately for steering wheel control function to operate with the aftermarket head unit.

Does the AAHY10C retain factory USB, AUX, and reverse camera?

Yes, where originally fitted. The aftermarket head unit must have rear USB input for USB retention, rear RCA AUX input for AUX retention, and an RCA reverse camera input for camera retention.

Is the AAHY10C compatible with all Hyundai and Kia vehicles?

No. SWC interfaces vary between models. Use the Aerpro Vehicle Selector at aerpro.com to confirm compatibility with your specific Hyundai or Kia vehicle and factory configuration before purchase.
