Aerpro AMAVW8 | 9" Multimedia Receiver Suit Volkswagen Amarok 2016 - 2019

Seamless Integration For Your Volkswagen Amarok!

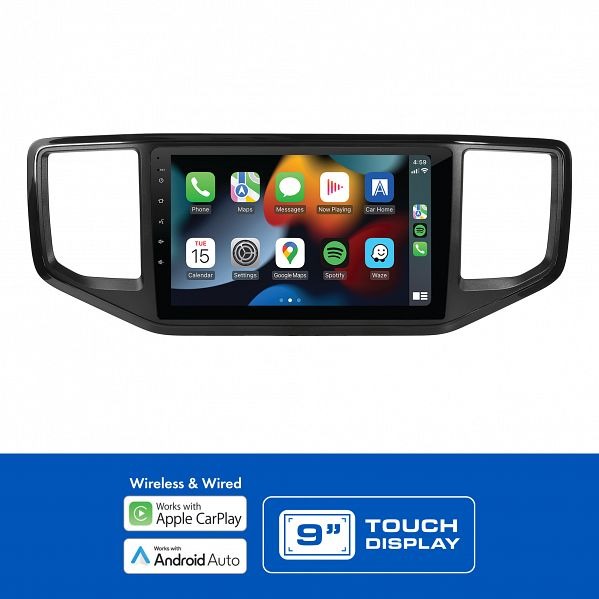

Aerpro AMAVW8 9" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMAVW8 suits Volkswagen Amarok (2016–2019) vehicles and comes packed with premium features including a vibrant 9" capacitive touchscreen display, wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free calling and music streaming, dual rear USB inputs, and an AM/FM radio tuner. Enjoy crystal-clear sound with 50Wx4 max output, 8-band graphic EQ, and time alignment. Expand your system using the 4V/5CH RCA preouts for amplifier connectivity. This complete Head Unit Upgrade Kit includes all parts required for installation while retaining important factory features like steering wheel controls.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models – check the Aerpro What Fits Your Car Guide before purchasing.
• This kit suits Volkswagen Amarok (2016–2019).

Video:
Head Unit Feature Video

Inclusions:

• AM9X Multimedia Receiver
• Matte Black Facia Kit
• Steering Wheel Control Interface Harness
• Antenna Adaptor

Specifications:

AMAVW8 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Vehicle Feature Retention:
• Steering Wheel Controls: Yes
• Factory Reverse Camera: No
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: No
• Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)
• System Specifications:
• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
• Rated Power: 4CH x 25W
• MAX Power: 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
• USB 1 (Rear): CP, AA & Media
• USB 2 (Rear): Media
• USB Power Output: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
• Rear A/V Input (RCA): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
• Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Version: V4.2+EDR
• Microphone: Built-in & External
• ID3 Tag Info: Yes
• HFP Profile: HFP 1.6
• Tuner:
• Presets: AM 12 / FM 18
• FM Frequency Span: 87.5–108.0MHz
• AM Frequency Span: 529–1629KHz
• RDS: Yes
• Antenna Connector: Motorola, 50 Ohm
• RCA Preamp Outputs:
• Front / Rear Outputs: Yes
• Subwoofer Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p
• Tone Control:
• 8 Band EQ: 50 / 200 / 400 / 800 / 1K / 3K / 7K / 15K
• Loudness: Yes
• LPF (Sub): Yes
• EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
• Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
• OSD Language: English
• Button LED Colour: White
• Accessories:
• Power Harness (ISO/3.5mm Jack)
• AV-In Cable (RCA: Audio L/R, Video In)
• Reverse Camera Input (12V power to camera)
• 4.1CH Audio Out Cable
• External Microphone

Vehicle Compatibility:

• Volkswagen Amarok 2016–2019
