Aerpro AMAMZ4 9" Multimedia Receiver Suit Mazda 3 2009 to 2013

Seamless Connectivity For Your Mazda 3 BL!

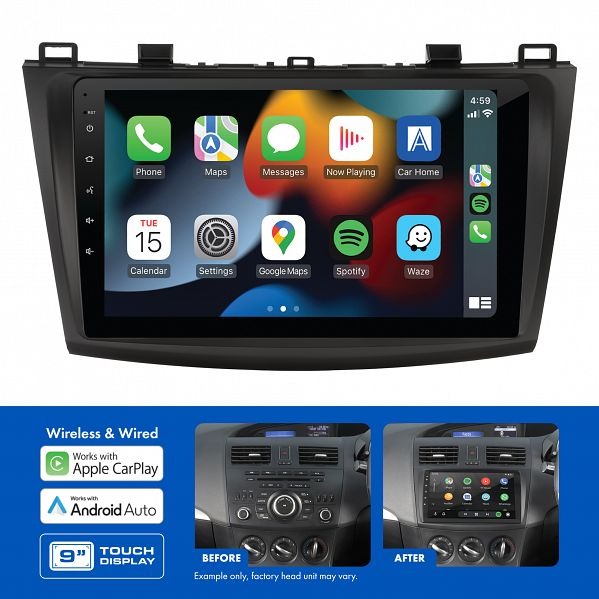

Aerpro AMAMZ4 9" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMAMZ4 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mazda 3 BL (2009 to 2013) non-amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAMZ4 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and access to the vehicle menu.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits factory non-amplified vehicles.
• Does not support phone button on steering wheel controls.

Video:
Head Unit Feature Video

Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

Specifications:

AMAMZ4 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Vehicle Feature Retention:
• Steering Wheel Controls: Yes (excluding phone button)
• Factory Reverse Camera: N/A
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: Yes
• Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)
• System Specifications:
• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
• Rated Power: 4CH x 25W
• MAX Power: 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
• USB 1 (Rear): CP, AA & Media
• USB 2 (Rear): Media
• USB Power Output: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
• Rear A/V Input (RCA): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
• Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Version: V4.2+EDR
• Microphone: Built-in & External
• ID3 Tag Info: Yes
• HFP Profile: HFP 1.6
• Tuner:
• Presets: AM 12 / FM 18
• FM Frequency Span: 87.5, 108.0MHz
• AM Frequency Span: 529, 1629KHz
• RDS: Yes
• Antenna Connector: Motorola, 50 Ohm
• RCA Preamp Outputs:
• Front / Rear Outputs: Yes
• Subwoofer Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p
• Tone Control:
• 8 Band EQ: 50 / 200 / 400 / 800 / 1K / 3K / 7K / 15K
• Loudness: Yes
• LPF (Sub): Yes
• EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
• Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
• OSD Language: English
• Button LED Colour: White
• Accessories:
• Power Harness (ISO/3.5mm Jack)
• AV-In Cable (RCA: Audio L/R, Video In)
• Reverse Camera Input (12V power to camera)
• 4.1CH Audio Out Cable
• External Microphone

Vehicle Compatibility:

• Mazda 3 2009 to 2013 BL (Non-Amplified Vehicles Only)

FAQ

What vehicles does the Aerpro AMAMZ4 suit?

The Aerpro AMAMZ4 suits Mazda 3 BL (2009 to 2013) non-amplified vehicles.

Does it run wireless Apple CarPlay and Android Auto?

Yes. The 9 inch touchscreen runs Apple CarPlay and Android Auto wireless or wired, and has built-in Bluetooth for hands-free calls and music.

Will I keep my steering wheel controls?

Yes. The kit is supplied to retain the factory steering wheel controls.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
