Aerpro AMAMZ5 9" Multimedia Receiver Suit Mazda 3 2009 to 2013

Upgrade Your Mazda 3 With Wireless Apple CarPlay & Android Auto!

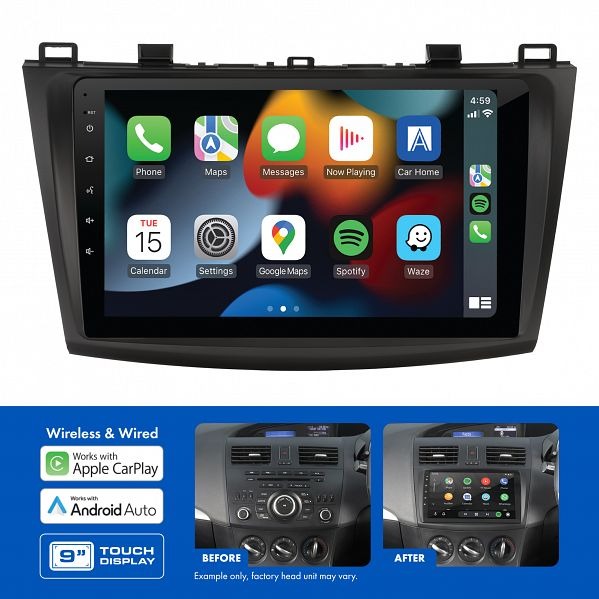

Aerpro AMAMZ5 9" Multimedia Receiver Kit
The Aerpro AMAMZ5 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mazda 3 BL (2009 to 2013) factory Bose amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAMZ5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory Bose amplified system.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits factory Bose amplified vehicles.
• Does not support phone button on steering wheel controls.

This head unit is sold as a kit which includes:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

Video:
Head Unit Feature Video

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (excluding phone button)
• Factory Reverse Camera: N/A
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: Yes
• Vehicle Menu: N/A
• Other: N/A

AM9X Multimedia Receiver Specifications:

LCD Display:

• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)

System Specifications:

• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body

Power Output

• Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
• MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4

Device Ports:

• USB 1 (Rear) Playback Formats: CP,AA & Media
• USB 2 (Rear) Playback Formats: Media
• USB (Rear) Power, Voltage/Amps: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

• Rear A/V Input (RCA Type, 3pcs): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

• Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Bluetooth Version: V4.2+EDR
• Microphone: Built-in & External Microphone
• ID3 Tag/Information (Artist, Album, Song): Yes
• HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

Tuner:

• AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
• FM Frequency Span (MHz): 87.5 to 108.0MHz (0.05MHz Step)
• AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
• RDS: Yes
• FM Antenna Connector Impedance: 50 Ohm
• FM Tuner Connector: Motorola

RCA Preamp Outputs:

• RCA Preamp Output: 2-Pair (Front / Rear)
• Subwoofer RCA Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage (1.2,2,4,5,6): 4V p-p

Tone Control:

• 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
• Loudness: Yes
• LPF, Frequencies (Sub): Yes
• 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

Other Features:

• Steering Wheel Control: Yes, with Aerpro SWC Adaptor
• OSD Language: English
• LED Colour (Buttons / Keys): White

Accessories:

• Power Harness: Yes with ISO/3.5mm jack
• AV-In Cable (RCA with Audio L/R, Video In): Yes
• Reverse Camera Input (with 12V power supply to the camera): Yes
• 4.1CH Audio Out Cable: Yes
• External Microphone: Included

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits factory Bose amplified vehicles.
• Does not support phone button steering wheel controls.

Vehicle Compatibility:

• Mazda 3 (Axela) 2009 to 2013 BL

FAQ

What vehicles does the Aerpro AMAMZ5 suit?

The Aerpro AMAMZ5 suits Mazda 3 BL (2009 to 2013) factory Bose amplified vehicles.

Does it run wireless Apple CarPlay and Android Auto?

Yes. The 9 inch touchscreen runs Apple CarPlay and Android Auto wireless or wired, and has built-in Bluetooth for hands-free calls and music.

Will I keep my steering wheel controls?

Yes. The kit is supplied to retain the factory steering wheel controls.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
