Aerpro AMAFO2 | 9" Multimedia Receiver Suit Ford Ranger PX 2012 - 2015

Upgrade Your Ford Ranger PX With Wireless Apple CarPlay & Android Auto!

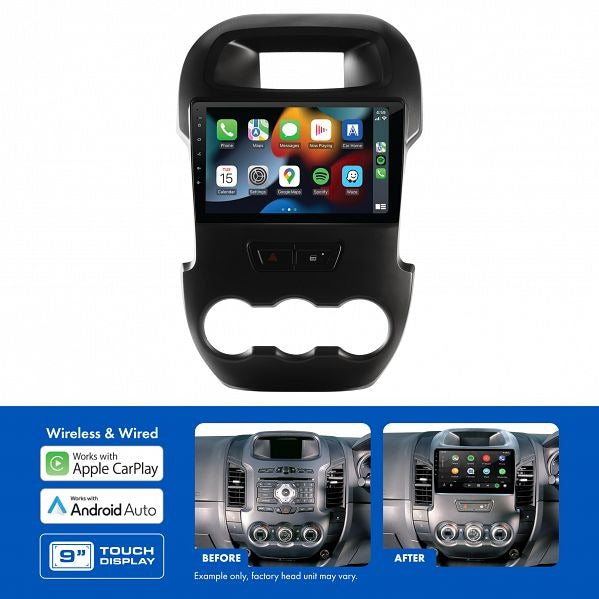

Aerpro AMAFO2 9" Multimedia Receiver Kit
The Aerpro AMAFO2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Ford Ranger PX (2012-2015) vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAFO2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, AUX input and parking tones (if equipped).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• For installations not requiring factory top display, blanking plate included.
• Phone button support requires manual programming in the aftermarket head unit.

This head unit is sold as a kit which includes:

• AM9X Multimedia Receiver
• Black Facia Kit
• Blanking Plate for Top Display
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

Video:
Head Unit Feature Video

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Blanking Plate for Top Display
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: N/A
• AUX Input: Yes (if equipped)
• USB Input: N/A
• Parking Tones: Yes (if equipped)
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

AM9X Multimedia Receiver Specifications:

LCD Display:

• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)

System Specifications:

• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body

Power Output:

• Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
• MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4

Device Ports:

• USB 1 (Rear) Playback Formats: CP,AA & Media
• USB 2 (Rear) Playback Formats: Media
• USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

• Rear A/V Input (RCA Type - 3pcs): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

• Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Bluetooth Version: V4.2+EDR
• Microphone: Built-in & External Microphone
• ID3 Tag/Information (Artist, Album, Song): Yes
• HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

Tuner:

• AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
• FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
• AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
• RDS: Yes
• FM Antenna Connector Impedance: 50 Ohm
• FM Tuner Connector: Motorola

RCA Preamp Outputs:

• RCA Preamp Output: 2-Pair (Front / Rear)
• Subwoofer RCA Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage (1.2,2,4,5,6): 4V p-p

Tone Control:

• 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
• Loudness: Yes
• LPF - Frequencies (Sub): Yes
• 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

Other Features:

• Steering Wheel Control: Yes, with Aerpro SWC Adaptor
• OSD Language: English
• LED Colour (Buttons / Keys): White

Accessories:

• Power Harness: Yes with ISO/3.5mm jack
• AV-In Cable (RCA with Audio L/R, Video In): Yes
• Reverse Camera Input (with 12V power supply to the camera): Yes
• 4.1CH Audio Out Cable: Yes
• External Microphone: Included

Vehicle Compatibility:

• Ford Ranger PX (2012-2015)
