Aerpro AMAFO8 | 9" Multimedia Receiver Suit Ford Focus 2007 - 2011

Seamless Upgrade For Your Ford Focus With Auto Climate Control!

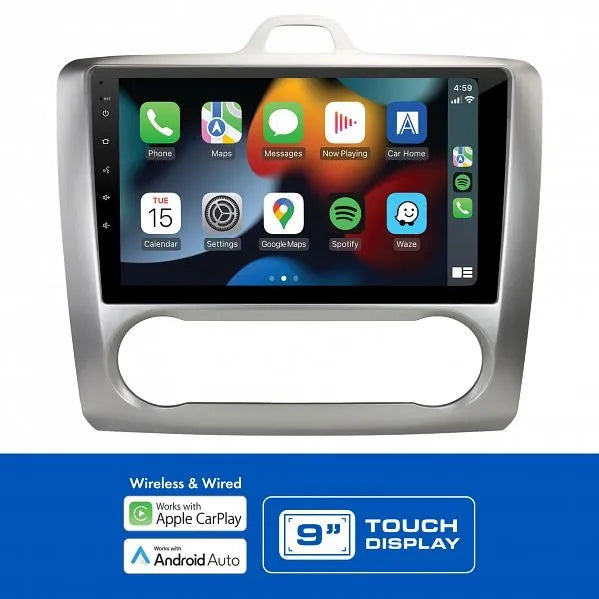

Aerpro AMAFO8 9" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMAFO8 suits Ford Focus (2007-2011) vehicles with auto climate control. It features a sleek 9" capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, and built-in Bluetooth for hands-free calls and music streaming. With 50Wx4 max power, an 8-band EQ, and time alignment, your audio experience is taken to the next level. This complete Head Unit Upgrade Kit includes everything needed for installation and retains vital vehicle features, including steering wheel control integration. Important Information:

• Head Unit Upgrade Kits vary by vehicle – refer to the Aerpro What Fits Your Car Guide to confirm compatibility.
• Compatible with models featuring auto climate control only.

Video:
Inclusions:

• AM9X Multimedia Receiver
• Silver Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Radio Removal Keys

Specifications:

AMAFO8 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Vehicle Feature Retention:
• Steering Wheel Controls: Yes
• Factory Reverse Camera: N/A
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)
• System Specifications:
• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
• Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
• MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
• USB 1 (Rear): CP, AA & Media
• USB 2 (Rear): Media
• USB Power Output: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
• Rear A/V Input (RCA): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
• Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Version: V4.2+EDR
• Microphone: Built-in & External
• ID3 Tag Info: Yes
• HFP Profile: HFP 1.6
• Tuner:
• Presets: AM 12 / FM 18
• FM Frequency Span: 87.5–108.0MHz
• AM Frequency Span: 529–1629KHz
• RDS: Yes
• Antenna Connector: Motorola, 50 Ohm
• RCA Preamp Outputs:
• Front / Rear Outputs: Yes
• Subwoofer Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p
• Tone Control:
• 8 Band EQ: 50 / 200 / 400 / 800 / 1K / 3K / 7K / 15K
• Loudness: Yes
• LPF (Sub): Yes
• EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
• Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
• OSD Language: English
• Button LED Colour: White
• Accessories:
• Power Harness (ISO/3.5mm Jack)
• AV-In Cable (RCA: Audio L/R, Video In)
• Reverse Camera Input (12V power to camera)
• 4.1CH Audio Out Cable
• External Microphone

Vehicle Compatibility:

• Ford Focus 2007–2011 (LV, LVII) – Auto Climate Control Models Only
