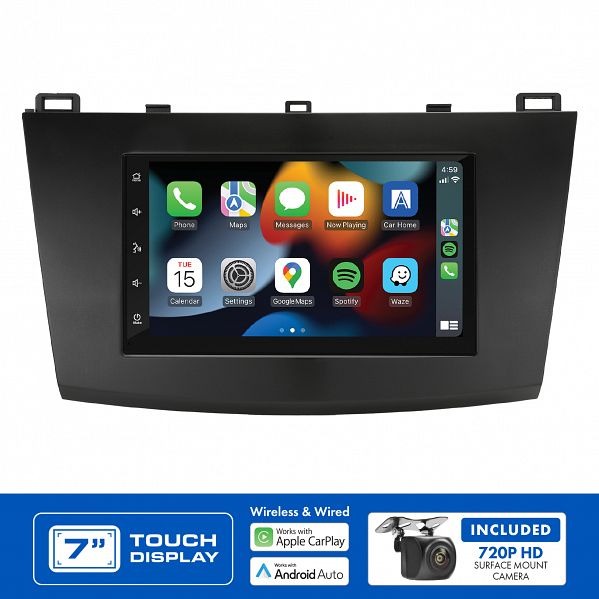

Aerpro AM9272K | 7" Multimedia Receiver Suit Mazda 3 2009 - 2013

Complete Head Unit Upgrade Kit For Mazda 3 2009–2013!

Aerpro AM9272K Head Unit Upgrade Package
The Aerpro AM9272K package offers a comprehensive head unit upgrade solution designed specifically for Mazda 3 (2009–2013) vehicles. This package includes an Aerpro AM7X Double DIN 7" Mechless AV Rceiver with Wireless Apple CarPlay and Android Auto, a Vehicle Specific Installation Kit, and a 720P AHD universal reverse camera. The kit is designed to retain essential vehicle features, such as steering wheel controls, and provides all the necessary components for a seamless installation.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models – please use the Aerpro What Fits Your Car Guide to ensure compatibility.
• This head unit is sold as a kit which includes:
  • Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto
  • Vehicle Specific Installation Kit
  • 720P AHD Surface Mount Camera

Inclusions:

• Aerpro AM7X 7" Multimedia Receiver
• Vehicle Specific Installation Kit
• 720P AHD Surface Mount Camera

Features:

• Includes all the parts required to complete the installation

• Retains important vehicle features including steering wheel controls when applicable

• 7" Capacitive touch display

• Works with Apple CarPlay (wireless and wired)

• Supports Android Auto (wireless and wired)

• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)

• AM / FM Tuner with RDS & presets (18FM/12AM)

• Dual rear USB inputs (1.5A + 1.5A max charging)

• Dual camera input with 1 Aerpro 720P AHD Camera included

• Rear A/V input (RCA)

• 4V / 6CH RCA Preout

• MP3 / AAC / FLAC / MPEG 1,2,4 Media formats

• 8 Band graphic EQ

• 8 EQ Presets

• Subwoofer level control

• 45W x 4 Max built-in amplifier

• Shallow 2-DIN chassis mounting design

• External microphone included

Specifications:

Aerpro AM7X HEAD UNIT SPECIFICATIONS:

• LCD Display:
  • Size: 7"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
• Power Output:
  • Rated Power: 4CH x 25W
  • MAX Power: 4CH x 45W
• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports:
  • USB (Rear) Playback Formats: CPAA & Media
  • USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 8 Band EQ: 50 / 200 / 400 / 800 / 1K / 3K / 7K / 15K
  • Loudness: Yes
  • LPF (Sub): Yes
  • EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness (ISO)
  • AV-In Cable (RCA with Audio L/R, Video In)
  • Reverse Camera Input
  • 4.2CH Audio Out Cable
  • External Microphone

Vehicle Specific Installation Kit Specifications:

• Facia Kit (Matte Black)
• Steering Wheel Control Interface
• Antenna Adapter
• Universal Patch Lead

720P AHD Surface Mount Camera Specifications:

• 720P AHD Surface Mount Camera (wired)
• 6m of Video Cable (RCA) with in-line Reverse Trigger
• Mount Type: Surface Mount
• Camera Type: Front, Rear Or Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree

Vehicle Compatibility:

• Mazda 3 (Axela) 2009–2013 BL
