Aerpro AM8298K | 7" Multimedia Receiver Suit Holden Colorado Z71 & Trailblazer LTZ 2017-2020

Complete Head Unit Upgrade Solution For Holden Colorado & Trailblazer!

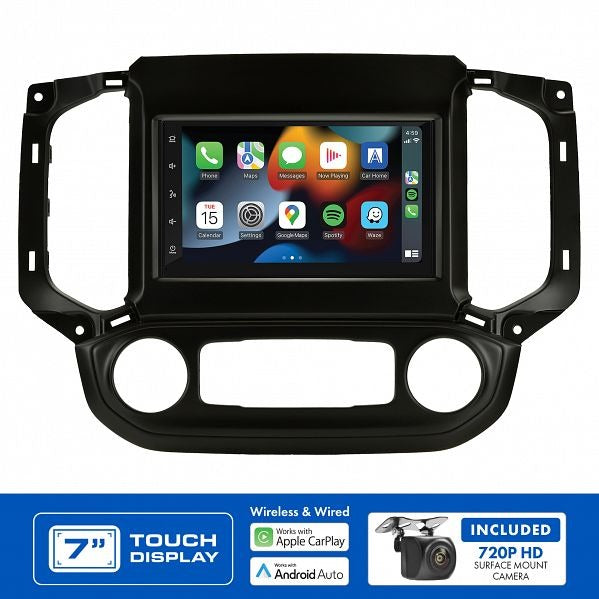

Aerpro AM8298K Head Unit Upgrade Kit
The Aerpro AM8298K package offers a comprehensive head unit upgrade solution for Holden Colorado 2017–2020 and Trailblazer 2017-on vehicles. It includes the Aerpro AM7X 7" Mechless AV Receiver with Wireless Apple CarPlay and Android Auto, a Vehicle Specific Installation Kit, and a 720P AHD universal reverse camera. This package ensures seamless integration, retaining important features like steering wheel controls while providing an enhanced multimedia experience.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suitable for cars with factory 8" MyLink system.
• This head unit is sold as a kit which includes:
  • Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto
  • Vehicle Specific Installation Kit
  • 720P AHD Surface Mount Camera

Video:
Head Unit Feature Video
Inclusions:

• Aerpro AM7X 7" Multimedia Receiver
• Vehicle Specific Installation Kit
• 720P AHD Surface Mount Camera
• Steering Wheel Control Interface
• Reverse Camera Retention Lead
• Plastic Mounting Brackets
• Universal SWC Patch Lead

Specifications:

Aerpro AM7X HEAD UNIT SPECIFICATIONS:

• LCD Display:
  • Size: 7"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
• Power Output:
  • Rated Power: 4CH x 25W
  • MAX Power: 4CH x 45W
• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports:
  • USB (Rear) Playback Formats: CPAA & Media
  • USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: External Microphone
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span: 87.5–108.0MHz
  • AM Frequency Span: 529–1629KHz
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 8 Band EQ
  • Loudness: Yes
  • LPF (Sub): Yes
  • 8 EQ Presets
• Other Features:
  • Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
  • OSD Language: English
  • Button LED Colour: White

Vehicle Compatibility:

• Holden Colorado 2017–2020
• Holden Trailblazer 2017–ON
