Aerpro AVK7C2 | 7" Heavy-Duty AHD Monitor 1080P 2 Camera Caravan Kit

Your Trusted Partner For Enhanced Caravan Towing Safety!

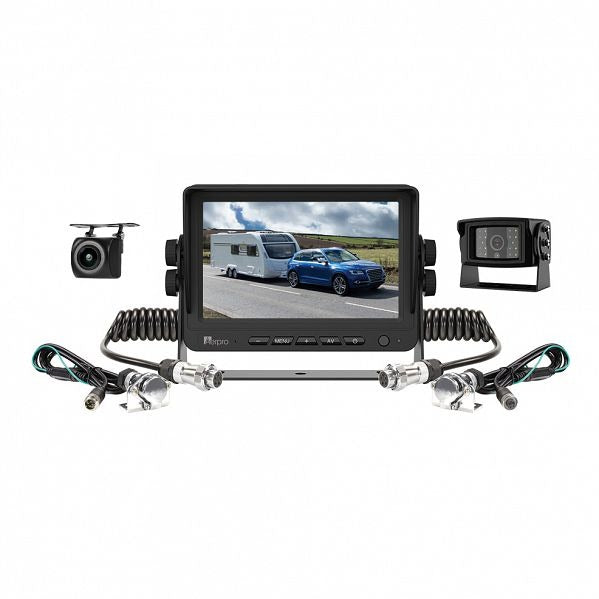

Aerpro AVK7C2 7" AHD Caravan Monitor Camera Kit
Experience enhanced caravan towing safety and surveillance with the Aerpro AVK7C2 7" AHD Caravan Monitor Camera Kit. This comprehensive kit combines state-of-the-art technology from the Aerpro Advanced Safety Vision Systems range, featuring the AVM7 7" AHD Monitor, AVC3 AHD 1080P Heavy Duty Surface Mount Camera, AVC0 AHD 1080P Butterfly Camera, ARTK1 Heavy Duty Trailer connection kit, AVEC7M2 7M Dual Camera Extension Cable, and the AVEC10 10M Camera Extension Cable.

The AVM7 7" AHD Monitor delivers exceptional clarity and detail with advanced AHD (Analogue High Definition) technology, ensuring optimal visibility in any lighting condition. Equipped with dual camera inputs and individual triggers, the AVM7 allows seamless switching between cameras for enhanced manoeuvrability and safety. Its versatile compatibility with SD, HD, and AHD cameras, coupled with automatic PAL/NTSC video system switching, ensures easy integration into various vehicle setups.

Paired with the AVM7 Monitor is the AVC3 AHD 1080P Heavy Duty Surface Mount Camera. Featuring AHD 1080P resolution, a wide-angle lens with a 110° field of view, IP69K rating for superior water and dust protection, and conformal coating for added durability, the AVC3 excels in challenging environments. It supports night vision with 18x IR LEDs and captures audio directly through its integrated microphone, enhancing situational awareness during operations. Included in the kit is the AVC0 AHD 1080P small format Butterfly camera, measuring 22mm in diameter and 25mm in depth, making it an ideal discreet option for vehicle mounting. With a wide 158-degree angle and an IP69K rating, the AVC0 ensures comprehensive coverage and durability.

The kit includes the ARTK1 Heavy Duty Trailer 3-piece connection kit which has heavy-duty sockets for the vehicle and trailer that features metal mounting brackets and weatherproof covers to protect the sockets from dust and water when not in use. The AVECM72 extension cable enables you to route a single cable along your vehicle, supporting two AHD video feeds. It then splits back into two video feeds at both ends of the cable, offering convenient installation for dual-camera setups. Also included is the AVEC10 10M Camera Extension Cable, providing a secure 4-pin wired connection over a 10-metre length.

Backed by our industry-leading 5-year warranty, the Aerpro AVK7C2 7" AHD Caravan Kit combines cutting-edge technology with reliability and durability.

Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Features:

• Complete Monitoring Solution: Includes the AVM7 7" AHD Monitor, AVC3 AHD 1080P Heavy Duty Surface Mount Camera, AVC0 AHD 1080P Butterfly Camera, ARTK1 Heavy Duty Trailer kit, and three AVEC10 10 Metre Heavy Duty Camera Extension Cables for seamless installation in a wide range of vehicles.
• Advanced AHD Technology: Experience exceptional clarity and detail with the AVM7 monitor and AVC3 1080P camera powered by AHD (Analogue High Definition) technology.
• Enhanced Visibility: Luminance of 450cd/m² ensures optimal screen brightness in any lighting condition, providing clear visuals on the AVM7 monitor.
• Dual Camera Inputs: Benefit from flexibility with the AVM7 monitor's two camera inputs, allowing the addition of a second camera for enhanced monitoring (sold separately).
• Single View Mode: Effortlessly switch between camera views on the AVM7 monitor, optimising visibility and situational awareness.
• Image Flip: Choose between normal or reverse camera view settings to suit specific application needs.
• Parking Guidelines: Enable or disable parking guidelines (CAM 2 input only) for precision manoeuvring.
• Integrated Speaker & Microphone: Capture AVC3 camera audio feedback directly through the AVM7 monitor's on-board speaker, enhancing situational awareness.
• Flexible Installation: Utilize the included AVEC10 10 Metre Camera Extension Cables to extend camera reach and optimise installation flexibility.
• Quick Connect Cables: The ARTK1 Trailer Connection Kit allows for quick connect and disconnect solutions for reverse cameras on caravans.
• Secure 4 Pin Wired Connection: Utilises a reliable 4-pin camera connector for stable, secure, and weatherproof connection.
• Suitable for Various Vehicles: Compatible with cars, trucks, vans, buses, motorhomes, agricultural vehicles, heavy machinery, and more.
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind.

Specifications:

• Display: 7" LCD Display
• Resolution: Monitor: 1024x600, Camera: 1080P
• Lens Angle (Surface Mount): 110 Degrees
• Lens Angle (Butterfly): 105 Degrees
• Wired or Wireless: Wired
• Video Inputs: 2
• Video Triggers: 2
• Monitor View: Normal / Reverse
• Guidelines: Selectable On/Off (CAM 2 Only)
• Display Modes: Single Only
• Luminance: 450cd/M²
• Light Sensitivity: 0.01 LUX (IR On)
• Camera IP Rating: IP69K (Conformal Coated)
• Camera Microphone: Yes
• Power Supply: 9-36V (Hardwired)
• Dimensions: Monitor: 197 x 136 x 62.3mm, Heavy Duty Camera: 89 x 69 x 68mm, Butterfly Camera: 40 x 31 x 37mm (Includes Bracket), Butterfly Camera: 22 x 22 x 25mm (Excludes Bracket)

Inclusions:

• 7" AHD Monitor AVM7
• 1 x 1080P AHD Butterfly Camera AVC0
• 1 x 1080P AHD Camera AVC3
• 1 x Monitor mount
• 1 x Sunvisor
• 1 x 1.5m Monitor cable
• 1 x 7m Dual Camera cable AVECM72
• 1 x 10m Camera cable AVEC10
• 1 x Trailer Connection kit AVTK1

Notes:

• The Trailer Connection Kit has 2-metres of cabling on the car side, 2-metres on the caravan side, and the curly cable can extend to a maximum of 2-metres.
