Aerpro AVK10QT2 | 10" Heavy-Duty AHD Quad View Monitor 1080P 2 Camera Truck Kit With DVR

Enhance Truck Safety & Surveillance With Advanced AHD Technology!

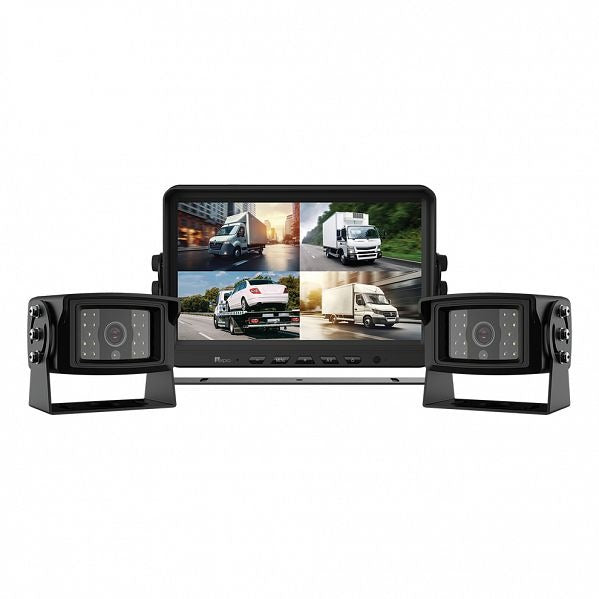

Aerpro AVK10QT2 10" AHD Quad View Truck Kit With DVR
Experience enhanced Truck safety and surveillance with the Aerpro AVK10QT2 10" AHD Quad View Truck Kit with DVR. This comprehensive kit combines state-of-the-art technology from the Aerpro Advanced Safety Vision Systems range, featuring the AVM10Q 10" AHD Quad View Monitor, Two AVC3 AHD 1080P Heavy Duty Surface Mount Cameras, and two AVEC10 10M Camera Extension Cables.

Equipped with four camera inputs and individual triggers, the AVM10Q monitor allows you to seamlessly switch between cameras, enhancing safety and manoeuvrability. Choose between Single view, Dual channel view or Quad channel view and easily toggle between normal or reverse views with the image flip feature. Parking guidelines can be activated or deactivated on all channels, providing added assistance during parking manoeuvres.

Capture every moment on the road with built-in DVR recording capabilities, offering high-definition recording 720P @ 22 FPS (Max 128GB). The AVM10Q records all channels and conveniently separates the files by channel number when they are stored on the SD card (Not Included).

Paired with the AVM10Q Monitor is two of the AVC3 AHD 1080P Heavy Duty Surface Mount Cameras. Featuring AHD 1080P resolution, a wide-angle lens with a 110° field of view, IP69K rating for superior water and dust protection and conformal coating for added durability, the AVC3 excels in challenging environments. It supports night vision with 18x IR LEDs and captures audio directly through its integrated microphone, enhancing situational awareness during operations.

The kit includes two AVEC10 10M Camera Extension Cables, providing a secure 4-pin wired connection over a 10-metre length on each cable. This cable is suitable for extending camera connections across various truck types, but best suited to Tray or Rigid Body Trucks.

Backed by our industry-leading 5-year warranty, the Aerpro AVK10QT2 10" AHD Quad View Truck Kit combines cutting-edge technology with reliability and durability.

Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Features:

• Complete Truck Monitoring Solution: Includes the AVM10Q 10" AHD Quad View Monitor, 2x AVC3 AHD 1080P Heavy Duty Surface Mount Cameras, and 2x AVEC10 10 Metre Heavy Duty Camera Extension Cables for seamless installation in a wide range of Trucks.
• Advanced AHD Technology: Experience exceptional clarity and detail with the AVM10Q monitor and AVC3 1080P camera powered by AHD (Analogue High Definition) technology.
• Enhanced Visibility: Luminance of 500cd/m² ensures optimal screen brightness in any lighting condition on the IPS display, providing clear visuals on the AVM10Q monitor.
• Quad Camera Inputs: Benefit from flexibility with four camera inputs, each with individual triggers for seamless integration.
• Various Viewing Modes: Effortlessly switch between cameras, viewing Single, Dual, or Quad view for enhanced monitoring.
• Built-in DVR Recording: Capture important moments on the road with built-in DVR recording, offering high-definition footage for added security.
• Image Flip: Choose between normal or reverse camera view settings to suit specific application needs.
• Parking Guidelines: Enable or disable parking guidelines for precision manoeuvring.
• Integrated Speaker & Microphone: Capture AVC3 camera audio feedback directly through the AVM10Q monitor's on-board speaker, enhancing situational awareness.
• Flexible Installation: Utilise the included AVEC10 10 Metre Camera Extension Cable to extend camera reach and optimise installation flexibility.
• Secure 4 Pin Wired Connection: Utilises a reliable 4-pin camera connector for stable, secure, and weatherproof connection.
• Suitable for Various Vehicles: Compatible with trucks, vans, buses, motorhomes, agricultural vehicles, heavy machinery, and more.
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind.

Specifications:

• Display: 10" IPS Quad Display
• Resolution: Monitor: 1024x600, Camera: 1080P
• Lens Angle: 110 Degrees
• Wired or Wireless: Wired
• Video Inputs: 4
• Video Triggers: 4
• Monitor View: Normal / Reverse
• Guidelines: Selectable On/Off
• Display Modes: Quad, Triple, Dual, Single
• Luminance: 500cd/M²
• DVR Recording: Yes 720P @ 22 FPS (Supports up to 128GB)
• Light Sensitivity: 0.01 LUX (IR On)
• Camera IP Rating: IP69K (Conformal Coated)
• Camera Microphone: Yes (Channel 4 only)
• Power Supply: 9-36V (Hardwired)
• Dimensions: Monitor: 273 x 183 x 64mm, Camera: 89 x 69 x 68mm

Inclusions:

• 10" AHD IPS monitor AVM10Q
• 2 x 1080P AHD Cameras AVC3
• 1 x Monitor Mount
• 1 x Sunvisor
• 1 x 1.5m Monitor Cable
• 2 x 10m Camera Cables AVEC10
