Aerpro AMAMB3 | 9" Multimedia Receiver Suit Mitsubishi Triton/Challenger 2012 - 2014

Effortless Integration For Your Mitsubishi Triton & Challenger!

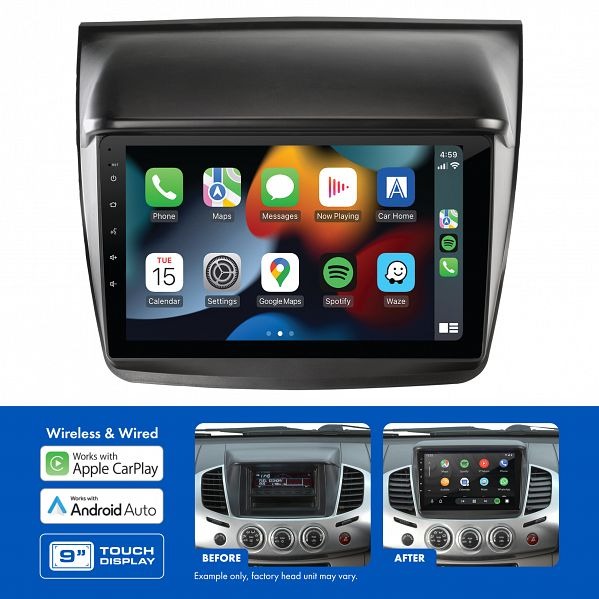

Aerpro AMAMB3 9" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMAMB3 suits Mitsubishi Triton MN GLX-R (2012–2014) and Mitsubishi Challenger PB (2012–2013) models with W776 factory units only. This premium head unit features a sleek 9" capacitive touchscreen display, wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free calling and music streaming, plus dual rear USB inputs and an AM/FM radio tuner. With 50Wx4 max output, an 8-band graphic EQ, and time alignment, your audio system will sound amazing. The complete Head Unit Upgrade Kit includes all necessary parts for installation while retaining key vehicle features such as steering wheel controls and vehicle menu access.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models – check the Aerpro What Fits Your Car Guide before purchasing.
• Suits vehicles with W776 factory units only.
• To retain the factory 6-button red display, a relocation panel is required (sold separately):
• FP8013TR – For Triton
• FP8013CR – For Challenger
• Park brake wire must be connected for Apple CarPlay and Android Auto to function.

Video:
Head Unit Feature Video
Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Plastic Pocket
• Head Unit Removal Keys

Specifications:

AMAMB3 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Vehicle Feature Retention:
• Steering Wheel Controls: Yes (with phone button)
• Factory Reverse Camera: N/A
• AUX Input: N/A
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: Yes
• Other: PTT Function (manually program)

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
• Size: 9"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)
• System Specifications:
• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
• Rated Power: 4CH x 25W
• MAX Power: 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
• USB 1 (Rear): CP, AA & Media
• USB 2 (Rear): Media
• USB Power Output: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
• Rear A/V Input (RCA): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
• Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Version: V4.2+EDR
• Microphone: Built-in & External
• ID3 Tag Info: Yes
• HFP Profile: HFP 1.6
• Tuner:
• Presets: AM 12 / FM 18
• FM Frequency Span: 87.5–108.0MHz
• AM Frequency Span: 529–1629KHz
• RDS: Yes
• Antenna Connector: Motorola, 50 Ohm
• RCA Preamp Outputs:
• Front / Rear Outputs: Yes
• Subwoofer Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p
• Tone Control:
• 8 Band EQ: 50 / 200 / 400 / 800 / 1K / 3K / 7K / 15K
• Loudness: Yes
• LPF (Sub): Yes
• EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
• Steering Wheel Control: Yes (via Aerpro SWC Adaptor)
• OSD Language: English
• Button LED Colour: White
• Accessories:
• Power Harness (ISO/3.5mm Jack)
• AV-In Cable (RCA: Audio L/R, Video In)
• Reverse Camera Input (12V power to camera)
• 4.1CH Audio Out Cable
• External Microphone

Vehicle Compatibility:

• Mitsubishi Triton 2012–2014 MN GLX-R (W776 unit only)
• Mitsubishi Challenger 2012–2013 PB (W776 unit only)
